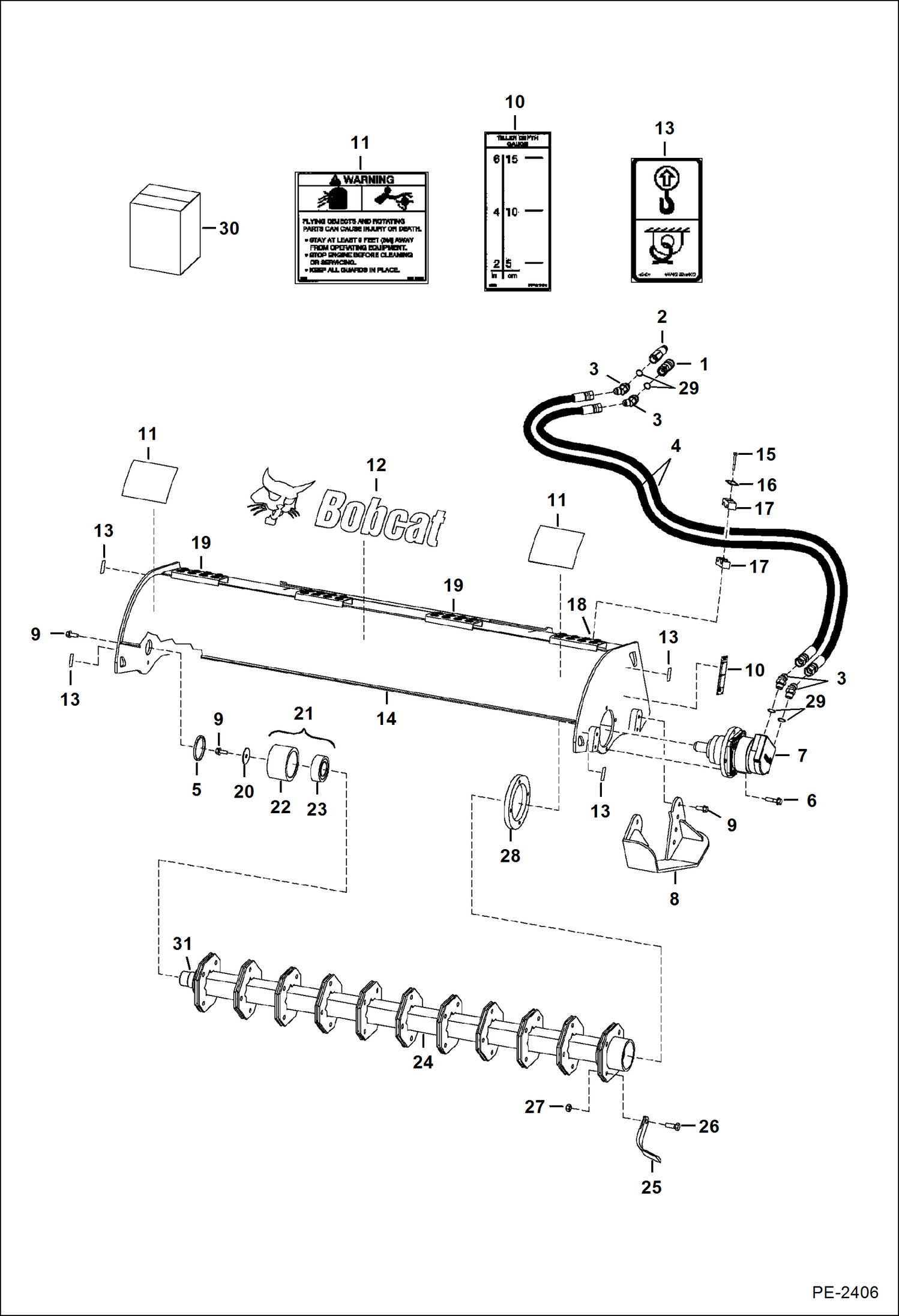

Запчасти Bobcat TILLER TILLER (Main Frame) (62 0552) (76 0551) Loader

1

6687636

COUPLER, FF FEMALE straight - Was 6672960 - B

2

6688454

COUPLER, FF MALE straight - Was 6674688 - B

3

18KB1212

FITTING, HYD ELBOW

4

7101779

HOSE

5

7106806

SPACER bearing

6

31C832

BOLT 62'' - Was 35C000832B - B

6

31C832

BOLT 76''

6

31C840

SCREW 62''

6

31C840

SCREW 76''

7

CARRIER ASSY See Illustration TILLER/ B18990A

7

MOTOR See Illustration TILLER/ MS2450A

8

7101743

SKID SHOE

9

31C820

BOLT Was 35C000820B - B

10

7104015

DECAL, DEPTH See Illustration TILLER/ NA6246

10

7130155

DECAL, DEPTH See Illustration TILLER/ NA6246 - no-text

11

6708822

DECAL, WARNING See Illustration TILLER/ NA6246

11

7130144

DECAL, WARNING See Illustration TILLER/ NA6246 - no-text

12

6735901

DECAL, LOGO BOBCAT HEAD white

13

6815993

DECAL, LIFT tie down

14

7103466

FRAME 62''

14

7148165

FRAME 62''

14

7101749

FRAME 76''

14

7140571

FRAME 76''

15

17C540

BOLT

16

6595356

PLATE

17

6595353

CLAMP

18

7107794

PLATE weld-on - Was 6673017 - B

19

6905990

STEP

20

7103478

WASHER

21

7103468

RETAINER ASSY Ref. 22 & 23

22

RETAINER NSS - retainer only - Order Ref. 21 retainer assy - Was 7101741 - A

23

6576155

BEARING

24

7103355

SHAFT 62''

24

7148161

SHAFT 62''

24

7101949

SHAFT 76''

24

7122236

SHAFT 76''

25

6664495

TINE qty. 36 for 62'', qty. 44 for 76''

26

6664527

BOLT qty. 36 for 62'', qty. 44 for 76''

27

85D10

NUT, 5 qty. 36 for 62'', qty. 44 for 76'' - Was 87D10 - B

28

6906330

WEAR PLATE 62''

28

6906330

WEAR PLATE 76''

28

7139692

PLATE 62''

28

7139692

PLATE 76''

29

79K12

O RING 10

30

7102129AR

TRANSLATION KIT

30

7102129BR

TRANSLATION KIT

30

7102127AR

DECAL KIT

30

7102127BR

DECAL KIT

30

7102127JP

DECAL KIT
