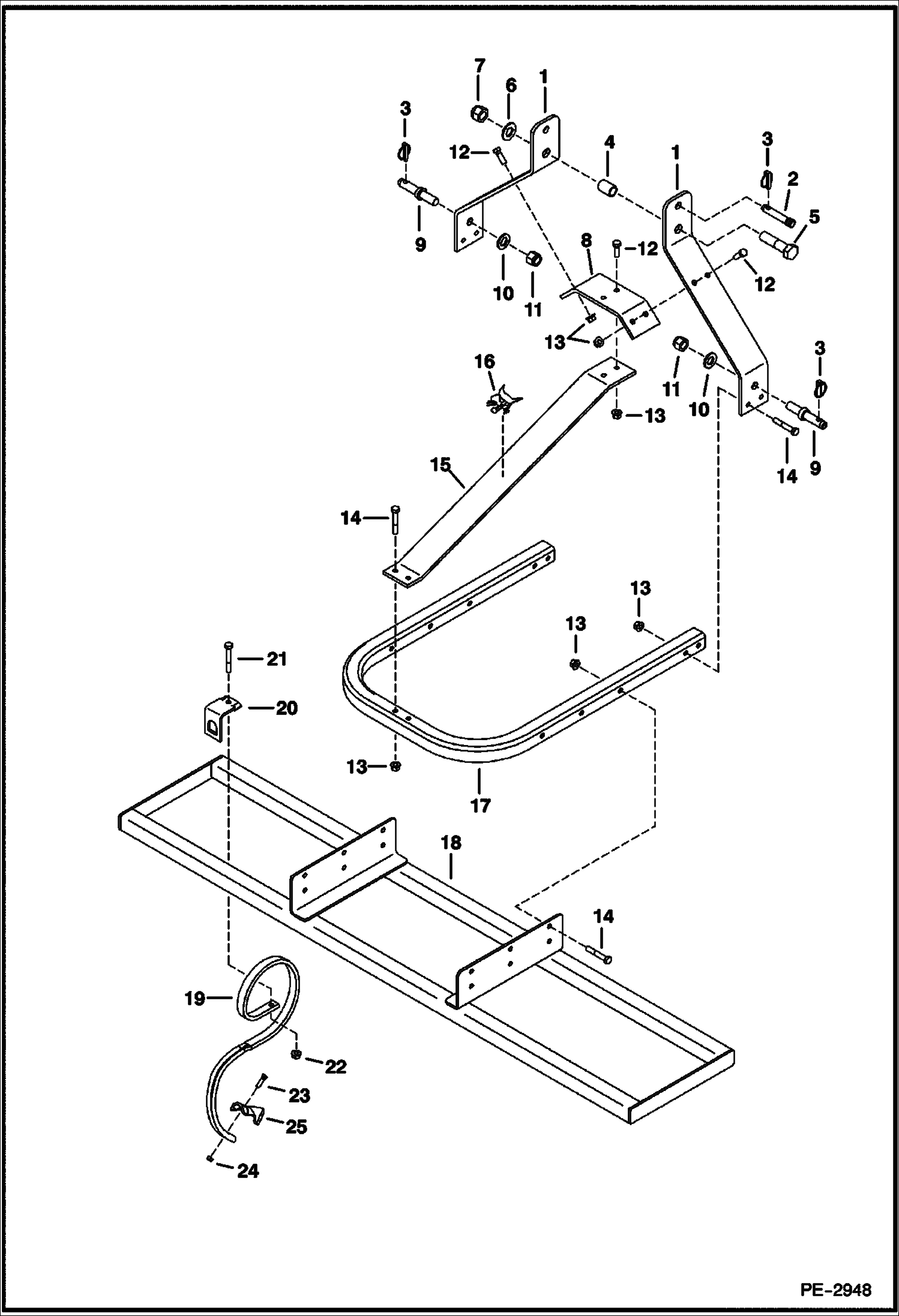

Запчасти Bobcat TILLAGE FRAME TILLAGE FRAME - SOIL CULTIVATOR (3 Point Mounted) (A7ZV) Loader

1

7107586

SUPPORT

2

7107589

PIN 3 pt upper

3

6560382

PIN, LOCK

4

7107587

SPACER

5

17C1664

BOLT

6

4E16

WASHER

7

61D16

LCKNUT

8

7107588

BRACE

9

7107590

PIN 3 pt lower

10

4E14

LOCKWSHR

11

64D14

NUT

12

17C824

BOLT 5

13

89D8

NUT

14

17C848

BOLT

15

7107585

ARM

16

6809228

DECAL

17

7107584

FRAME

18

7109756

FRAME 62''

18

7105739

FRAME 78''

19

7105737

TINE qty. (9) for 62'', qty. (11) for 78''

20

7106700

BRACKET qty. (9) for 62'', qty. (11) for 78''

21

17C852

BOLT 5 qty. (9) for 62'', qty. (11) for 78''

22

53D8

NUT qty. (9) for 62'', qty. (11) for 78''

23

7109728

BOLT qty. (9) for 62'', qty. (11) for 78''

24

85D6

NUT, 5 qty. (9) for 62'', qty. (11) for 78'' - Was 87D000006B - A

25

7109731

SHOVEL 1'' wide - qty. (9) for 62'', qty. (11) for 78''

25

7109730

SHOVEL 2.75'' sweep - qty. (9) for 62'', qty. (11) for 78''

25

7109729

SHOVEL 4'' sweep - qty. (9) for 62'', qty. (11) for 78''

25

7106701

SHOVEL 7'' sweep - qty. (9) for 62'', qty. (11) for 78''
