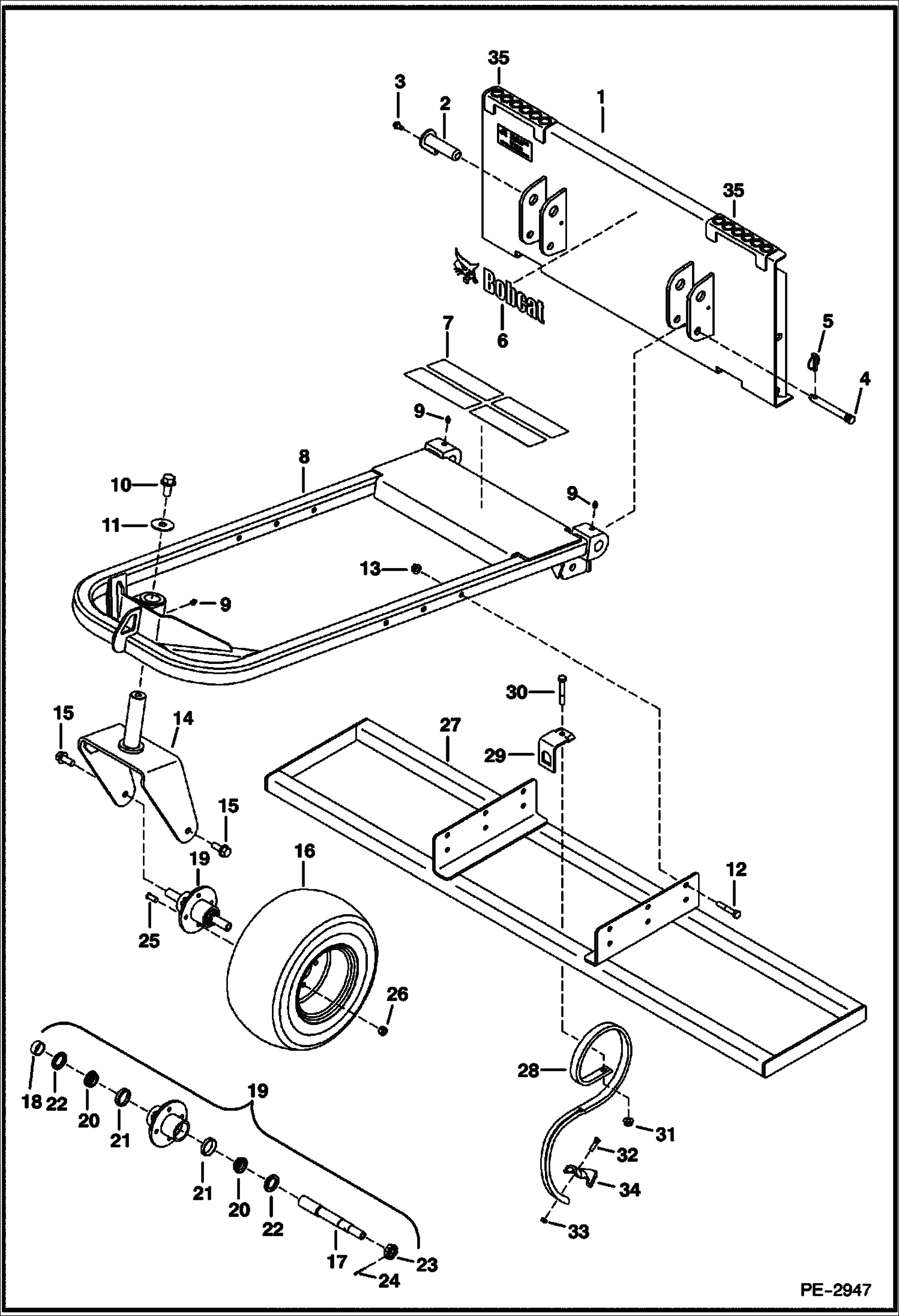

Запчасти Bobcat TILLAGE FRAME TILLAGE FRAME - SOIL CULTIVATOR (Bob-Tach Mounted) (0186) Loader

1

7105740

FRAME Bob-Tach

2

6716601

PIN, PIVOT

3

84G3712

BOLT 5

4

7108459

PIN

5

6560382

PIN, LOCK

6

6814452

DECAL

7

6555341

SAFETY TREAD Was 6805923 - B

8

7105738

FRAME

9

10H25

FITTING, GREASE 5 grease

10

31C1224

BOLT

11

6905689

WASHER

12

17C844

BOLT

13

53D8

NUT

14

6905748

YOKE

15

BOLT NLA - Was 35C001024B - A

16

6676595

TIRE ASSY tire & wheel assy

16

6677511

TIRE

16

6677512

WHEEL

17

6905680

SHAFT

18

6905755

BUSHING

19

6906270

HUB ASSY W/Ref 20 - 26

20

6674366

BEARING

21

6674367

RACE

22

6674368

SEAL

23

6674277

NUT

24

1F420

CTTR PIN

25

6679125

STUD

26

6679123

NUT

27

7109756

FRAME 62''

27

7105739

FRAME 78''

28

7105737

TINE qty. (9) for 62'', qty. (11) for 78''

29

7106700

BRACKET qty. (9) for 62'', qty. (11) for 78''

30

17C852

BOLT 5 qty. (9) for 62'', qty. (11) for 78''

31

53D8

NUT qty. (9) for 62'', qty. (11) for 78''

32

7109728

BOLT qty. (9) for 62'', qty. (11) for 78''

33

85D6

NUT, 5 qty. (9) for 62'', qty. (11) for 78'' - Was 87D000006B - A

34

7109731

SHOVEL 1'' wide - qty. (9) for 62'', qty. (11) for 78''

34

7109730

SHOVEL 2.75'' sweep - qty. (9) for 62'', qty. (11) for 78''

34

7109729

SHOVEL 4'' sweep - qty. (9) for 62'', qty. (11) for 78''

34

7106701

SHOVEL 7'' sweep - qty. (9) for 62'', qty. (11) for 78''

35

6905263

STEP Was 6577917 - B
