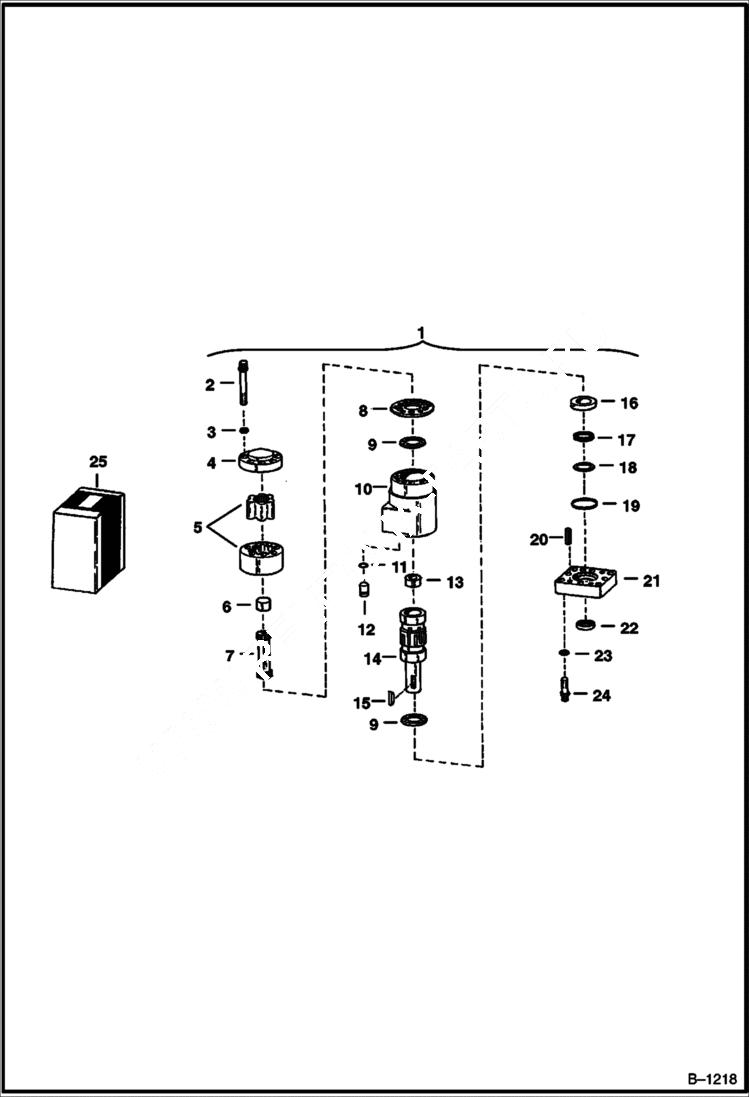

Запчасти Bobcat SWEEPER SWEEPER (Gutter Brush) (Motor) Loader

1

6517939

MOTOR hydraulic - Ref. 2 - 24

2

SCREW NLA - Was 72G000540B - A

3

WASHER NSS - seal

4

993537

CAP end - Was 1567080B - A

5

GEROTER SET NLA

6

993024

SPACER

7

DRIVE NLA - geroter

8

1567084

PLATE spacer

9

6513280

BEARING Was 993018 - A

10

6517940

HOUSING W/Ref. 14

11

O-RING NSS

12

PLUG NLA

13

6518097

SPACER

14

SPOOL NSS

15

6J808

KEY, WOODRUFF

16

7019134

CUP, BEARING Was 6513279 - A

17

SEAL NSS - quad ring

18

WASHER NSS - back-up - Teflon

19

O-RING NSS

20

302602

ROLL PIN

21

6653266

FLANGE mounting - Was 993021B - A

22

OIL SEAL NSS

23

6E5

WASHER

24

94G514

BOLT Was 93G000510B - B

25

6517948

SEAL KIT Ref. 3, 11, 17 - 19 & 22
