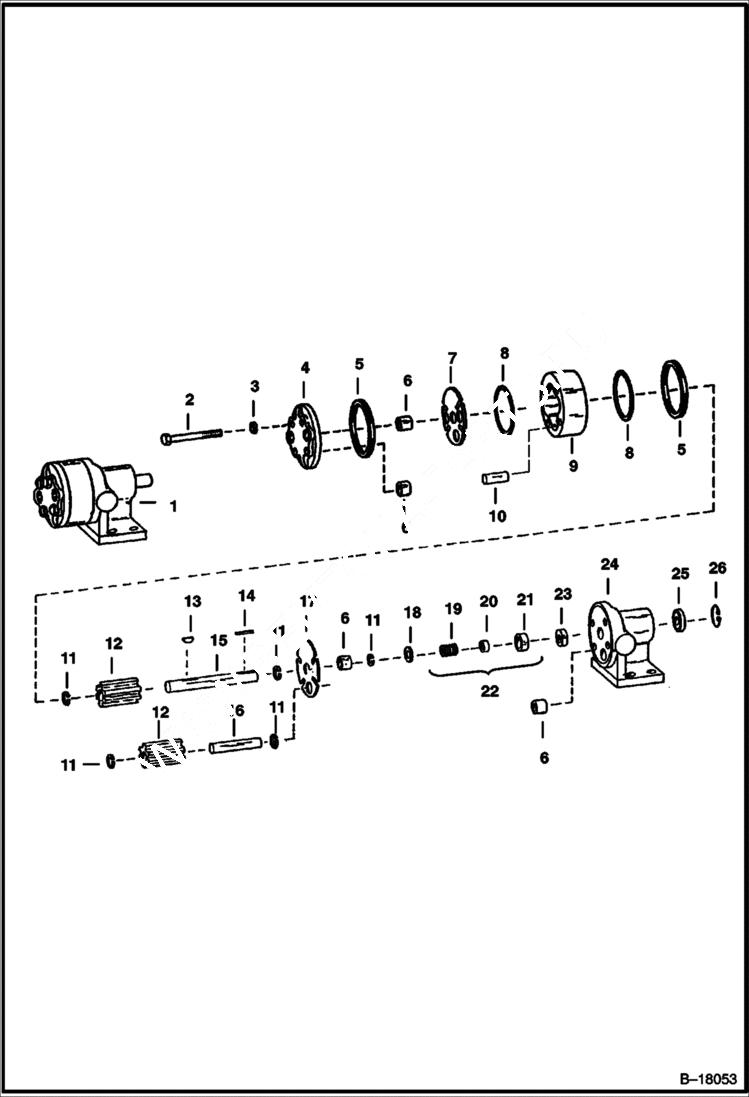

Запчасти Bobcat SWEEPER SWEEPER (Brush Drive Motor) Loader

1

6515465

MOTOR hydraulic

2

18C756

SCREW

3

4E7

WASHER

4

867745

HOUSING rear

5

25K40328

O RING 10

6

867755

BEARING roller

7

867748

WEAR PLATE

8

6520751

SHIM KIT W/1 - .001 Amber, 1 -.0015 Purple, 1 - .002 Red

9

946247

HOUSING center

10

867753

PIN, DOWEL

11

9J13

RING

12

GEAR NLA - Was 946243B - A

13

5J405

KEY

14

7J2104

KEY

15

6631034

SHAFT Was 946249B - A

16

6631035

SHAFT Was 946244B - A

17

867748

WEAR PLATE Was 867737B - A

18

867750

WASHER

19

SPRING NSS

20

SEAL NSS

21

RETAINER NSS

22

867749

SEAL Ref. 19-21

23

867743

SEAL

24

6517934

HOUSING

25

1302066

BEARING

26

713133

SNAP RING
