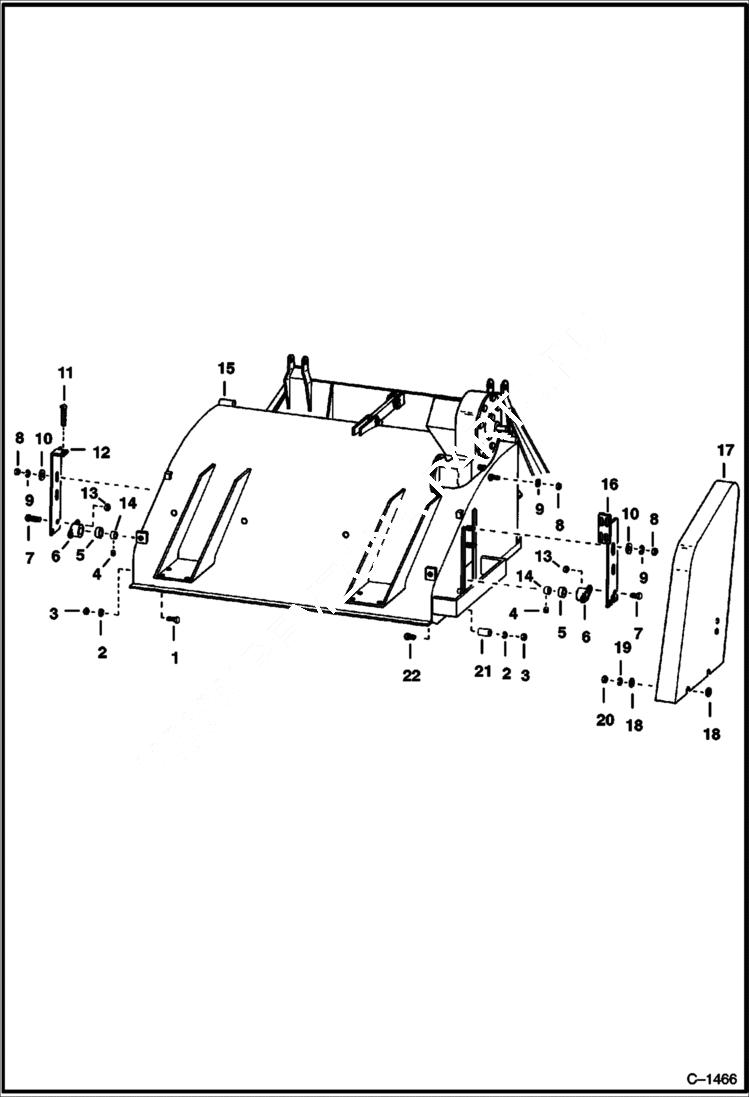

Запчасти Bobcat SWEEPER SWEEPER (Rear Brush Hangers & Bearings) (M-662) Loader

1

17C508

BOLT

2

4E5

WASHER

3

61D5

NUT

4

SET SCREW NLA - Was 16G000404B

5

BEARING NSS - Order Ref. 6

6

BEARING NLA - W/Ref. 4, 5 & 14 - Was 6518122 - A

7

17C624

BOLT 5

8

61D8

NUT 5

9

4E8

WASHER

10

25E21

WASHER 5

11

SET SCREW NLA - Was 13G000848B - A

12

6520573

BRACKET

13

81D6

NUT

14

COLLAR NSS - locking - Order Ref. 6

15

MAIN FRAME See Illustration SWEEPER/ D1102

16

6520591

BRACKET

17

6520589

SHIELD

18

25E17

WASHER 5

19

4E6

WASHER

20

61D6

NUT 5

21

6520744

STOP front core

22

17C524

BOLT
