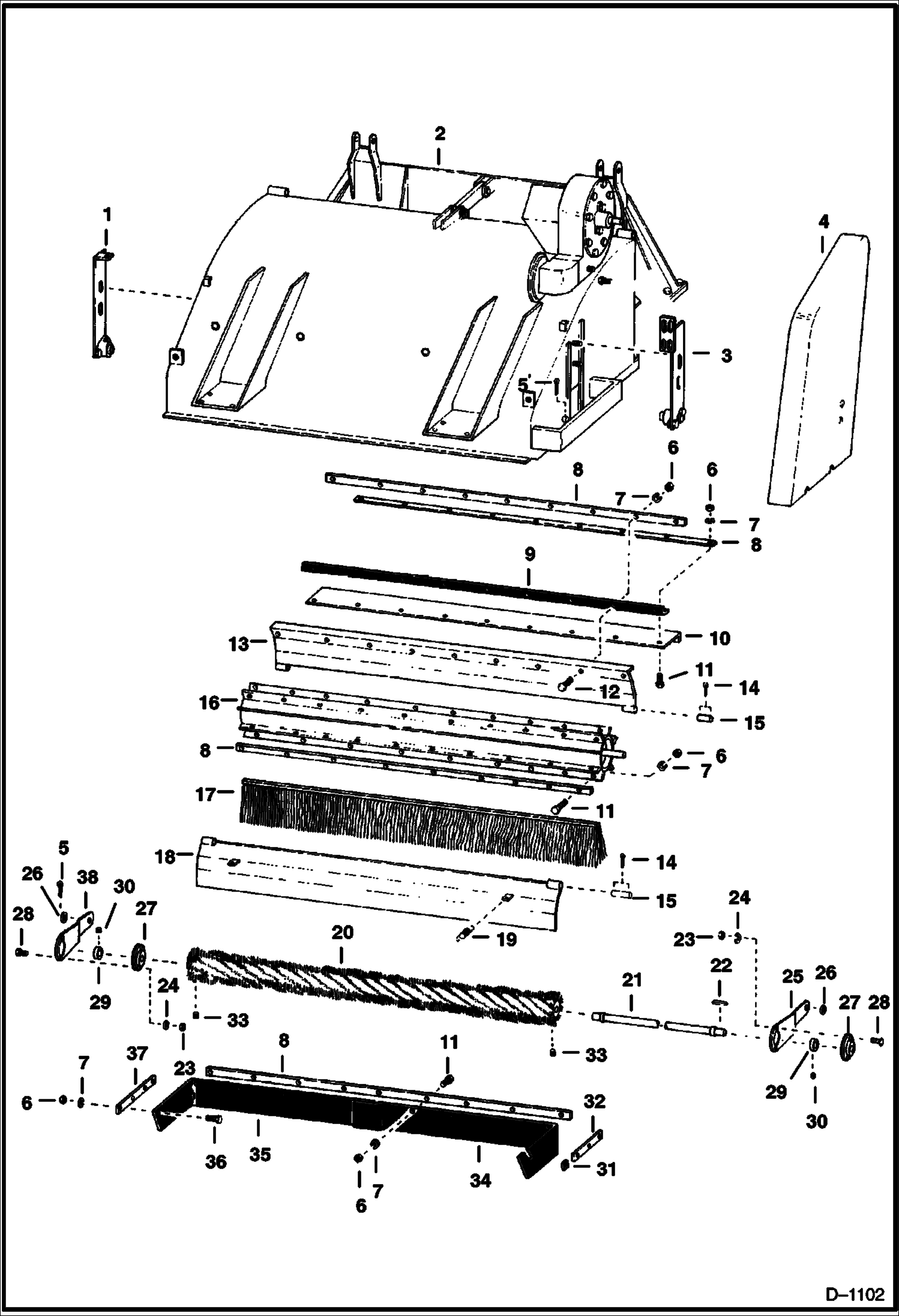

Запчасти Bobcat SWEEPER SWEEPER (Brushes) (M-662) Loader

1

BRACKET See Illustration SWEEPER/ C1466 W/BEARING ASSY

2

MAIN FRAME See Illustration SWEEPER/ C1395

3

BRACKET See Illustration SWEEPER/ C1466 W/BEARING ASSY

4

6520589

SHIELD

5

1F620

PIN COTTE

6

61D4

NUT 5

7

4E4

WASHER

8

6520623

STRAP retainer

9

6520747

HINGE rubber

10

6520745

FLAP

11

17C416

BOLT

12

7C416

SCREW

13

6520606

DIVIDER

14

1F308

PIN, COTTER

15

6520746

HINGE PIN

16

6520574

CORE brush

17

6520571

BRISTLE polypropylene

17

6520787

BRISTLE wire

18

6520605

BAFFLE

19

6505076

SPRING

20

BRUSH NLA - W/Ref. 33 - Was 6520576 - A

21

6520581

SHAFT

22

7J3100

KEY

23

61D5

NUT

24

4E5

WASHER

25

6520578

CARRIER bearing

26

6520733

BUSHING

27

335878

BEARING assy - W/Ref. 29 & 30

28

7C512

SCREW

29

6518127

COLLAR W/Ref. 30

30

SET SCREW NLA - Was 16G000404B

31

6520736

CLIP skirt retainer

32

6520738

RETAINER skirt

33

15G406

SCREW

34

6520735

SKIRT rubber - L.H.

35

6520734

SKIRT rubber - R.H.

36

17C412

BOLT 5

37

6520737

RETAINER skirt

38

6520579

CARRIER bearing
