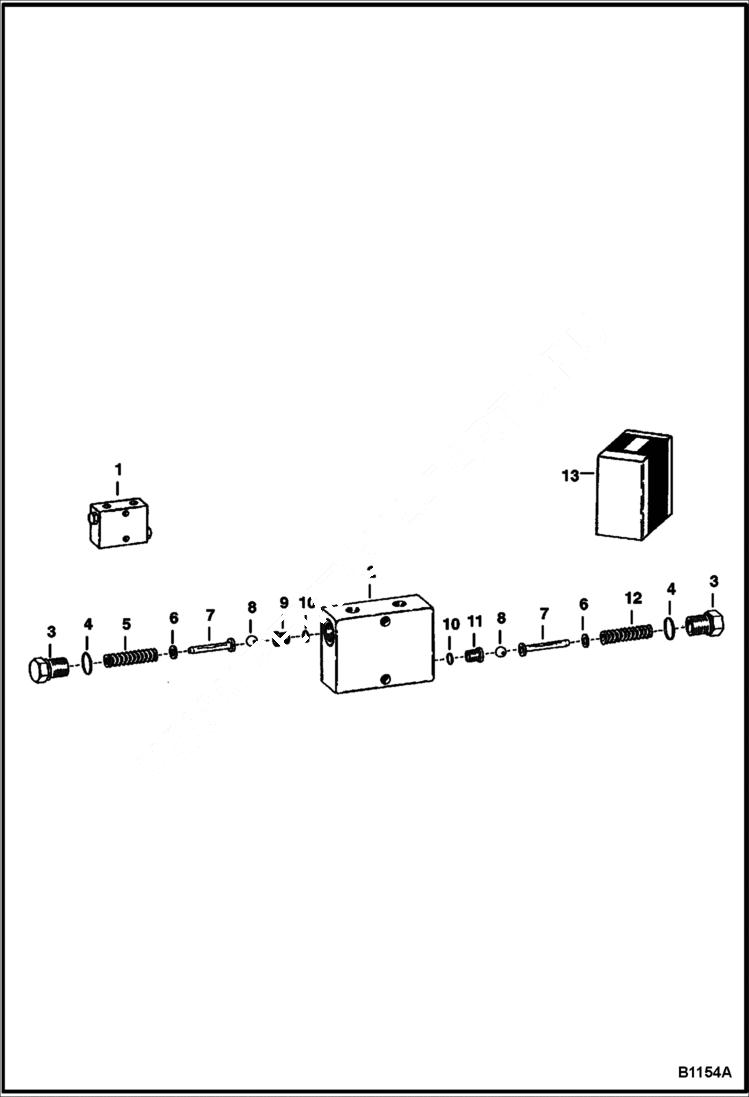

Запчасти Bobcat SWEEPER SWEEPER (Hydraulic Cushion Valve) Loader

1

6520575

VALVE Ref. 2-12

2

HOUSING NSS

3

CAP NSS - spring

4

O-RING NSS

5

SPRING NSS

6

SHIM KIT NSS

7

GUIDE NSS

8

BALL NSS - steel

9

SEAT NSS

10

O-RING NSS

11

SEAT NSS

12

SPRING NSS

13

6508350

REPAIR KIT return side - Ref. 3, 4, 6 - 8 & 10 - 12
