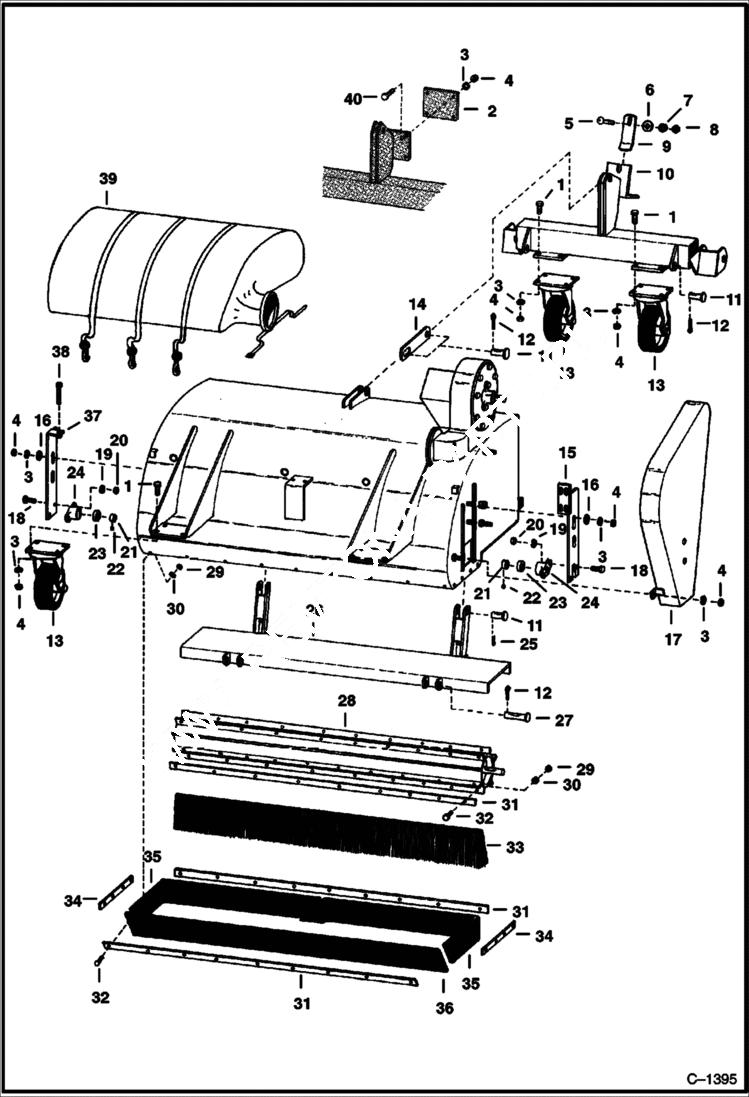

Запчасти Bobcat SWEEPER SWEEPER (Main Frame) (M-562) (M562A) Loader

1

17C824

BOLT 5

2

6508561

PLATE mounting - M-562 Model

3

4E8

WASHER

4

61D8

NUT 5

5

BOLT NLA - Was 7C001088B - A

6

25E25

WASHER 10

7

4E10

WASHER

8

61D10

NUT

9

6508493

PLATE mounting

10

6508562

FRAME

11

6520730

PIN

12

1F620

PIN COTTE

13

WHEEL See Illustration SWEEPER/ C1096B caster

14

6520731

LINK

15

6508563

BRACKET

16

25E21

WASHER 5

17

6508529

SHIELD

18

17C624

BOLT 5

19

4E6

WASHER

20

61D6

NUT 5

21

COLLAR NSS - locking - Order Ref. 24

22

SET SCREW NLA - Was 16G000404B

23

BEARING NSS - Order Ref. 24

24

BEARING NLA - W/Ref. 21-23 - Was 6518122 - A

25

6515499

PIN

26

6508564

DOOR hopper

27

6520729

PIN

28

6520574

CORE brush

29

61D4

NUT 5

30

4E4

WASHER

31

6520623

STRAP

32

17C416

BOLT

33

6520571

BRISTLE polypropylene

33

6520787

BRISTLE wire

34

6508589

STRIP

35

6508558

SKIRT dust - Side & Rear

36

SKIRT NLA - dust - Front - Was 6508559 - A

36

6508560

SKIRT dust

37

6520573

BRACKET

38

SET SCREW NLA - Was 13G000848B - A

39

BAG NLA - filter - W/retainer straps - Was 6520786 - A

40

17C888

BOLT
