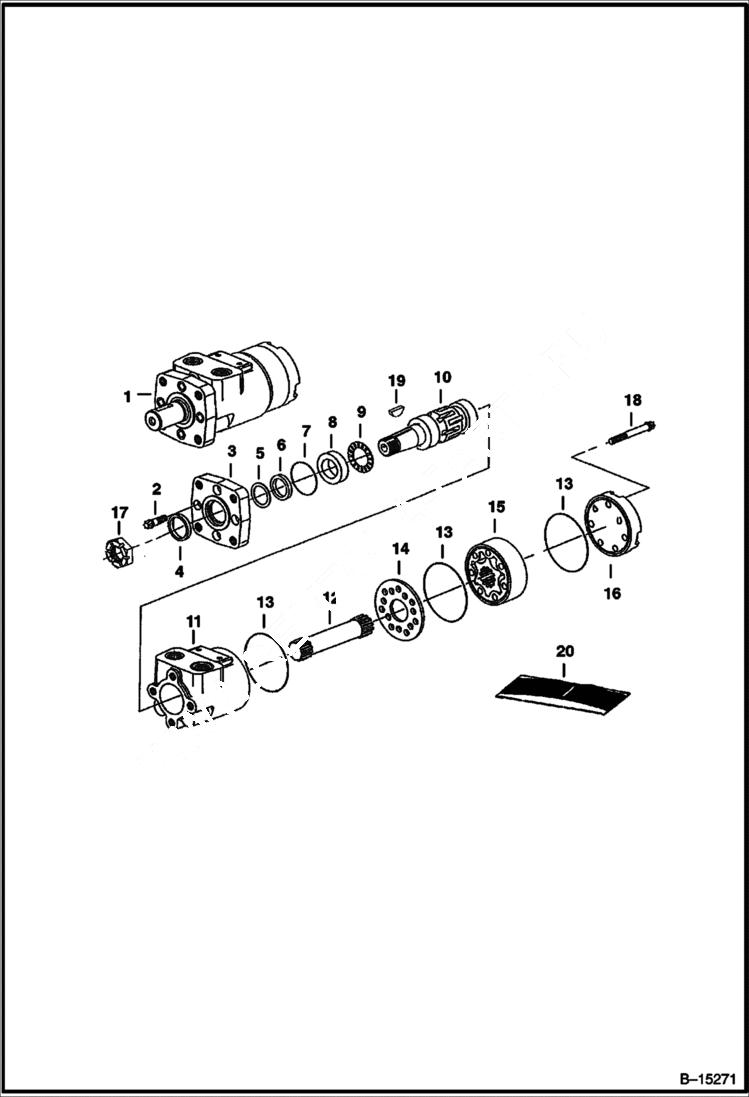

Запчасти Bobcat SWEEPER SWEEPER (Gutter Brush) (Motor Eaton 158-3098-001 With 4-bolt flange) Loader

1

MOTOR NLA - W/Ref. 2 - 19 - order 6815248 motor, 6815247 bracket & 2 each of 17C000824B & 55D000008B - Was 6670747 - A

2

6665325

SCREW

3

6653266

FLANGE mounting

4

6634895

SEAL

5

6651241

WASHER backup

6

6651240

SEAL

7

25K30124

O RING 10

8

7019134

CUP, BEARING Was 6513279 - A

9

6513280

BEARING

10

6674347

SHAFT

11

6674348

HOUSING

12

6674349

SHAFT

13

6674350

O-RING

14

SPACER PLATE NLA - Was 6674351 - A

15

6674352

GEROTER

16

6674353

END CAP

17

6674355

NUT

18

6674354

BOLT

19

6634899

KEY woodruff - Was 994816B - A

20

6674586

SEAL KIT
