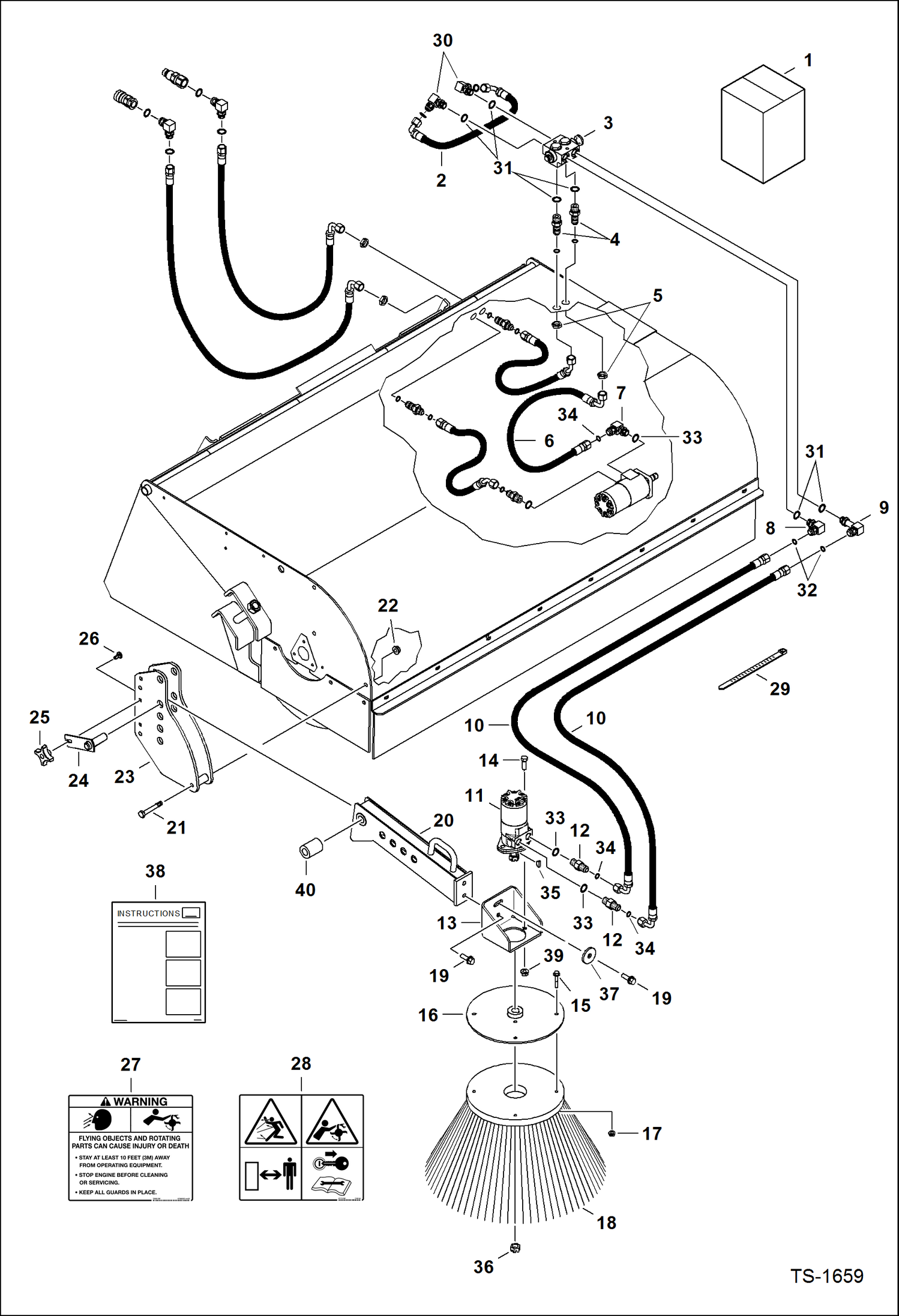

Запчасти Bobcat SWEEPER SWEEPER (Gutter Brush) (54 7826) (60 7144) (72 7837) Loader

1

GUTTER BRUSH SALES #6714219 - Ref. 2-40

2

6717506

HOSE

3

6662062

VALVE See Illustration SWEEPER/ TS1151 SELECTOR

4

6812816

ADAPTER bulkhead - Was 6715185 - A

5

86F7

LOCK NUT

6

6717505

HOSE

7

ELBOW NLA - tapered boss face - Was 17KV00007B - A

7

17KB1010

FITTING, HYD ELBOW flat boss face

8

ELBOW NLA - tapered boss face - Was 17KV00008B - A

8

17KB1212

FITTING, HYD ELBOW flat boss face

9

6716443

ELBOW

10

6717568

HOSE

11

MOTOR See Illustration SWEEPER/ B25140 See Illustration SWEEPER/ B15271

12

CONNECTOR NLA - tapered boss face - Was 15KV00007B - A

12

15KB1010

FITTING, HYD CONNECTOR flat boss face

13

6714231

BRACKET Use W/4 bolt motor

13

6815247

BRACKET Use W/2 bolt motor

14

35C612

BOLT Use W/4 bolt motor & bracket

14

17C824

BOLT 5 Use W/2 bolt motor & bracket

15

35C632

BOLT

16

6714232

MOUNT

17

83D6

NUT 5

18

BROOM, GUTTER, METAL BRISTLE NLA - Order 7023270 metal bristle gutter broom - Was 6672850 - A

18

7023270

BROOM, GUTTER, METAL BRISTLE W/POLY HEAD

18

6989026

BROOM, GUTTER, POLY BRISTLE (POLY HEAD)

19

31C824

BOLT 10 Was 31C000820B - B

20

6714226

ARM

21

17C860

BOLT

22

57D8

NUT 10

23

6714221

MOUNT

24

6714257

PIN

25

6670536

KNOB

26

37C624

BOLT

27

6708822

DECAL, WARNING See Illustration SWEEPER/ NA6248

27

7130144

DECAL, WARNING See Illustration SWEEPER/ NA6248 - no-text

28

6717571

DECAL on-off

29

6624289

STRAP, TIE

30

6715651

ELBOW

31

99K12

O RING tapered boss face

31

79K12

O RING 10 flat boss face

32

97K12

O'RING flared end

33

99K10

O'RING tapered boss face

33

79K10

O RING 10 flat boss face

34

97K10

O-RING 10 flared end

35

6634899

KEY woodruff - Was 994816B - A

36

6674355

NUT

37

6704978

WASHER

38

1F528

COTTERPIN

39

6900580

INSTRUCTIONS

40

55D8

NUT Use with 2-bolt motor & bracket
