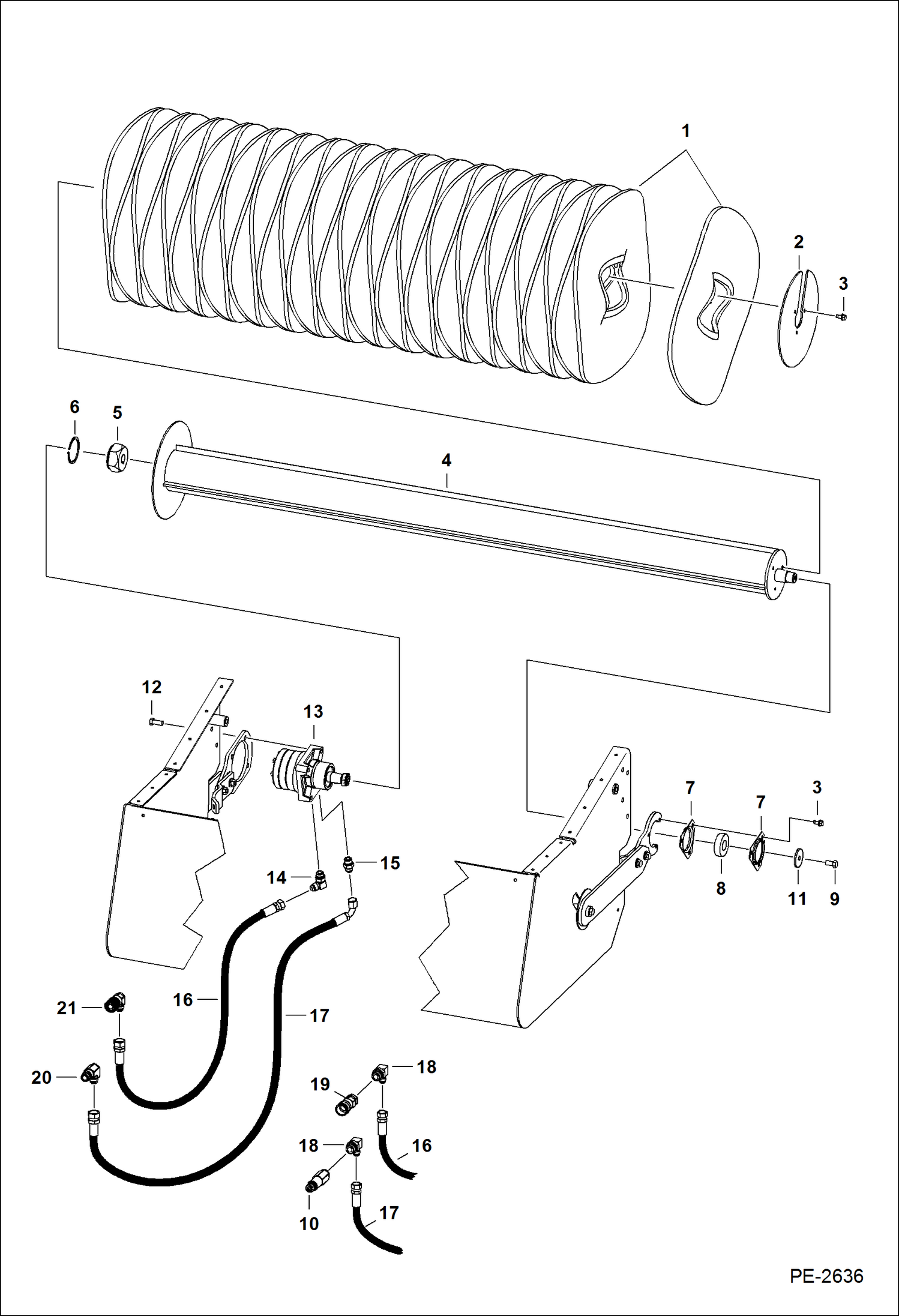

Запчасти Bobcat SWEEPER SWEEPER (84 A00A) Loader

1

6684129

BRUSH, POLY CONVOLUTED 24'' 25 factory option

1

6989024

BRISTLE, POLY HD 24'' CONVOLUTED

1

6988133

WAFER, 24' EARTHFORCE CONVOLUTED

1

6989144

BRISTLE, POLY HD 24'' FLAT

1

BRUSH, STEEL CONVOLUTED 24'' NLA - Order 6989025 bristle - Was 6904618 - A

1

6989025

BRISTLE, WIRE 24'' CONVOLUTED

1

6989145

BRISTLE, POLY/WIRE 24'' CONVOLUTED

2

7102381

DISC, RETAINING

3

84G3712

BOLT 5

4

7102373

TUBE

5

7146431

DRIVE Was 7104256 - A

6

21J44

RING, SNAP

7

6599441

FLANGE

8

6599429

BEARING

9

17C816

BOLT

10

6674688

COUPLER, FF MALE straight

11

6564692

WASHER

12

93G824

BOLT

13

6686333

MOTOR See Illustration SWEEPER/ B25298

14

17KB1010

FITTING, HYD ELBOW

15

15KB1010

FITTING, HYD CONNECTOR

16

7106881

HOSE 2845 mm (112'') long - .875'' threads - Use with straight couplers

16

7170637

HOSE, HYD 2845 mm (112'') long - .875'' thread & 1.063'' thread - Use with 90 degree couplers

17

7104251

HOSE 2845 mm (112'') long - 90 degree fitting (.875'' thread) & .875'' thread - Use with straight couplers

17

7170636

HOSE, HYD 2845 mm (112'') long - 90 degree fitting (.875'' thread) & 1.063'' thread - Use with 90 degree couplers

18

17KB1012

FITTING, HYD ELBOW Use with straight couplers - Was 6715651 - B

19

6672960

COUPLER, FF FEMALE straight

20

7168432

COUPLER, FF MALE 90 degree

21

7168433

COUPLER, FF FEMALE 90 degree
