Запчасти Bobcat SWEEPER SWEEPER (36 A7P2) (44 A7NW) (48 A9T6) (54 A7NU) Loader

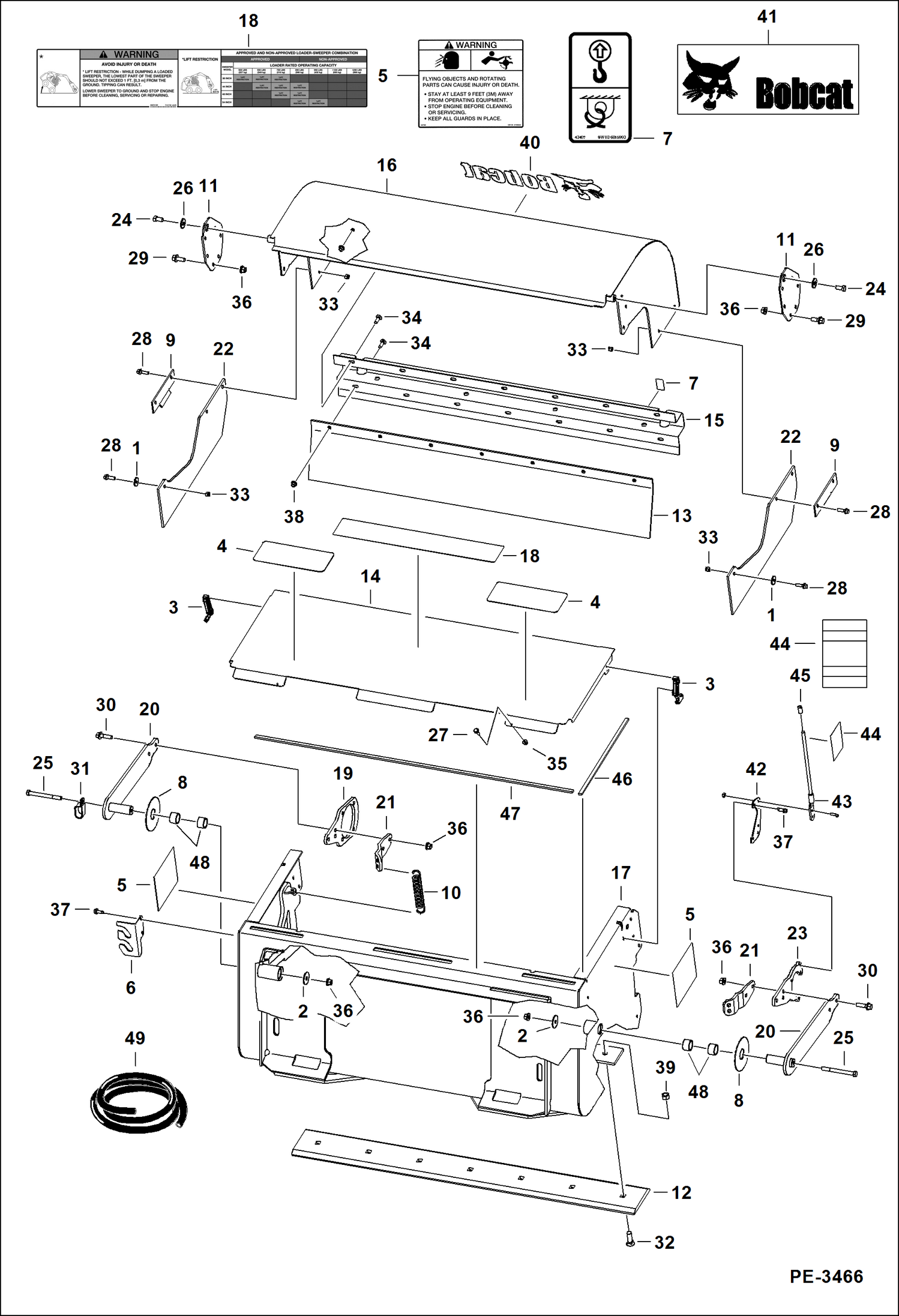

Схема запчастей Bobcat SWEEPER - SWEEPER (36 A7P2) (44 A7NW) (48 A9T6) (54 A7NU) Loader

Артикул

Название

Примечание

Количество

1

619021

WASHER, 5

2

6560899

WASHER

3

6692414

LATCH

4

6594485

STEP SKID Was 6569233 - B

5

6708822

DECAL, WARNING See Illustration SWEEPER/ NA6231

5

7130144

DECAL, WARNING See Illustration SWEEPER/ NA6231 - no-text

6

6808305

BRACKET

7

6815993

DECAL, LIFT tie down

8

7104307

WASHER

9

7104308

PLATE

10

7134220

SPRING

11

7138874

PLATE

12

7138949

EDGE, CUTTING BOLT BEVELED REV 35.88'' 36''

12

7138901

EDGE, CUTTING BOLT ON BEVELED REV 43.88'' 44''

12

7149361

EDGE, CUTTING BOLT ON BEVELED REV 47.88'' 48''

12

7138873

EDGE, CUTTING BOLT ON BEVELED REV 53.88'' 54''

13

7138950

SHIELD 36''

13

7138902

SHIELD 44''

13

7149362

SHIELD 48''

13

7138875

SHIELD 54''

14

7138951

COVER 36''

14

7138903

COVER 44''

14

7149363

COVER 48''

14

7138876

COVER 54''

15

7138953

BRACE 36''

15

7138905

BRACE 44''

15

7149364

BRACE 48''

15

7138878

BRACE 54''

16

7138957

COVER 36''

16

7138909

COVER 44''

16

7149368

COVER 48''

16

7138882

COVER 54''

17

7138960

BUCKET 36''

17

7138912

BUCKET 44''

17

7149371

BUCKET 48''

17

7138886

BUCKET 54''

18

7141748

DECAL, WARNING See Illustration SWEEPER/ NA6231

18

7150916

DECAL, WARNING See Illustration SWEEPER/ NA6231 - no-text

19

7145849

MOUNT

20

7145850

ARM

21

7145852

CLIP

22

7145853

SHIELD

23

7146166

MOUNT

24

17C816

BOLT

25

17C880

BOLT

26

25E22

WASHER

27

31C408

SCREW

28

31C620

BOLT

29

31C820

BOLT

30

31C828

BOLT

31

31H48

CLAMP

32

39C1032

BOLT qty. 5 for 36'', qty 5'' for 44'', qty. 7 for 48'' & qty. 7 for 54''

33

59D6

NUT

34

7C620

BOLT qty. 10 for 36'', qty. 10 for 44'', qty. 10 for 48'' & qty. 14 for 54''

35

83D4

NUT 10

36

83D8

NUT 5

37

84G3716

SCREW 5

38

89D6

NUT qty. 10 for 36'', qty. 10 for 44'', qty. 10 for 48'' & qty. 14 for 54''

39

93D10

NUT qty. 5 for 36'', qty 5'' for 44'', qty. 7 for 48'' & qty. 7 for 54''

40

6809831

DECAL, LOGO BOBCAT AND HEAD

41

7109473

DECAL, LOGO BOBCAT AND HEAD

42

7149262

PLATE

43

7152229

ROD MARKER

44

7152231

DECAL, SAFETY

45

7152230

CAP

46

SEAL NLA - bulk - Sold Per Foot - Order 2' of 6697817 - Use W/ 36'', 44'', 48'', 54'' sweeper

47

SEAL NLA - bulk - Sold Per Foot - Order 5' of 6697817 - Use W/ 54'' sweeper

47

SEAL NLA - bulk - Sold Per Foot - Order 4' of 6697817 - Use W/ 48'' sweeper

47

SEAL NLA - bulk - Sold Per Foot - Order 4' of 6697817 - Use W/ 44'' sweeper

47

SEAL NLA - bulk - Sold Per Foot - Order 3' of 6697817 - Use W/ 36'' sweeper

48

7104276

BEARING

49

6697817

SEAL bulk - Sold Per Foot

Выбрано товаров: 72
