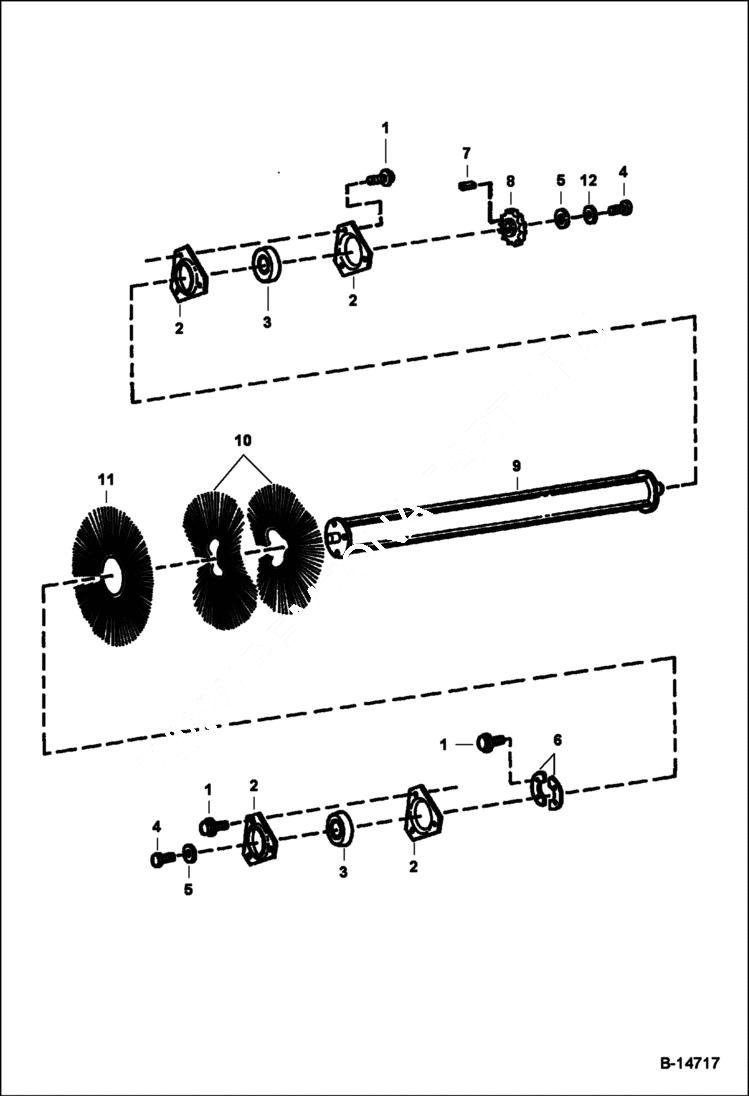

Запчасти Bobcat SWEEPER SWEEPER (Brushes With Convoluted Sections) (Two Piece End Caps) (54) Loader

1

84G3712

BOLT 5

2

6599441

FLANGE

3

6538846

BEARING, SWEEPER Use without locking collar

4

17C820

BOLT for shafts with 38.1mm (1.50'') deep threads

4

17C824

BOLT 5 for shafts with 44.5mm (1.75'') deep threads

5

6704978

WASHER

6

6708813

COVER

7

7J4102

KEY

8

6813247

SPROCKET Was 6708812 - A

9

6711381

DRIVE TUBE

10

6652802

BRUSH, POLY CONVOLUTED 21 3/8'' factory option

10

6988131

WAFER, 21 3/8' EARTHFORCE CONVOLUTED

10

6989020

BRISTLE, POLY HD 21 3/8'' CONVOLUTED

10

6989142

BRISTLE, POLY/WIRE 21 3/8'' CONVOLUTED

10

BRUSH, STEEL CONVOLUTED 21 3/8'' NLA - factory option - Order 6989019 bristle - Was 6648798 - A

10

6989019

BRISTLE, WIRE 21 3/8'' CONVOLUTED

11

6648797

BRUSH, POLY STRAIGHT 21 3/8'' factory option - to fill space if needed

11

6988130

WAFER, 21 3/8' EARTHFORCE FLAT to fill space if needed

11

6989018

BRISTLE, POLY HD 21 3/8'' FLAT to fill space if needed

12

6693407

WASHER lock
