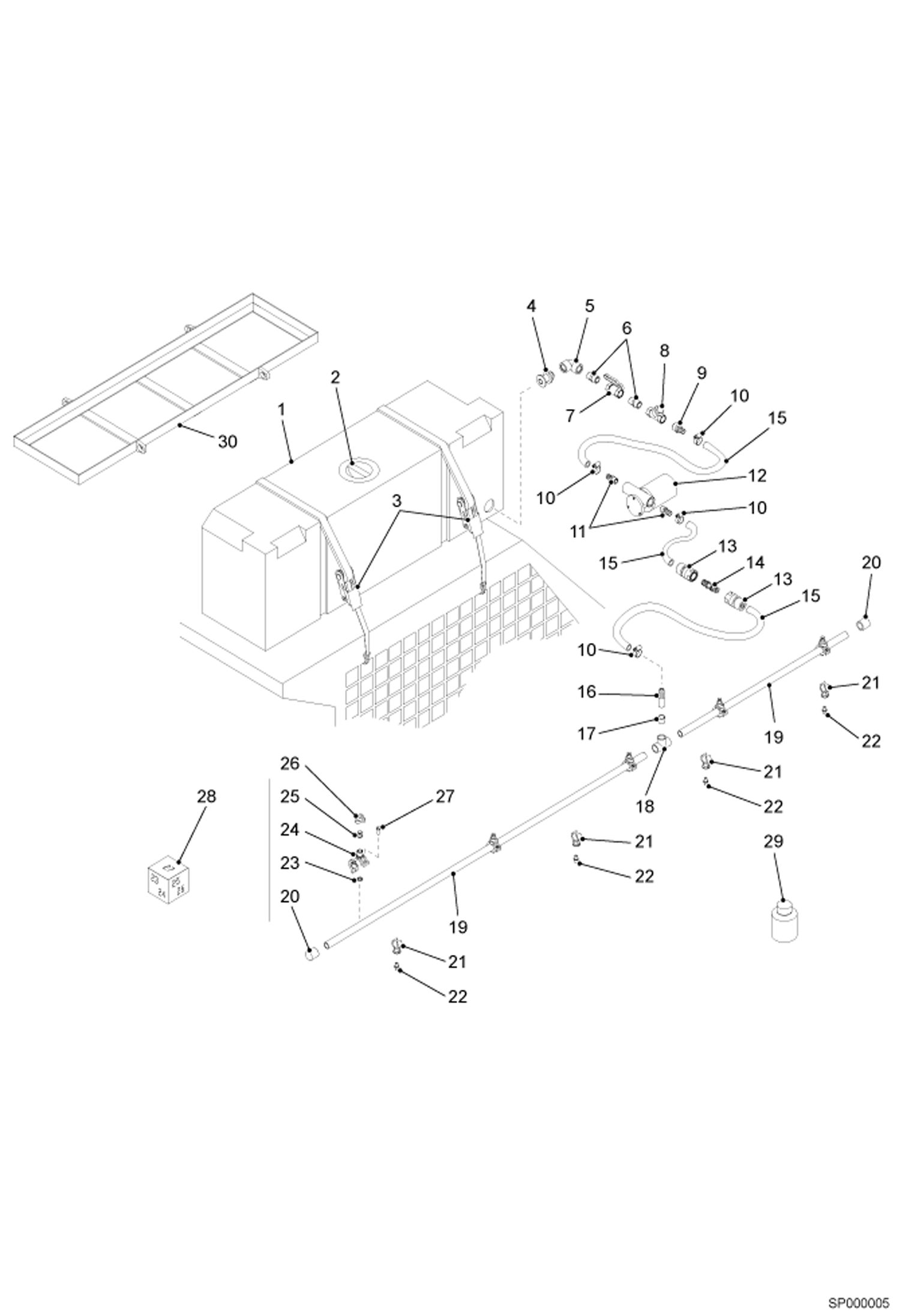

Запчасти Bobcat SWEEPER Sprayer Installation (Europe Only) Loader

1

MAP

Tank 1251 White

1

6692311

Tank 1251 Black

1

MAP

Tank 1251 White

1

6692312

Tank 2751 Black

2

6692131

Tank Cap Tank 1251

2

6692132

Tank Cap Tank 2751

3

6691980

Belt And Belt Tightener

4

6692227

Tank Nipple

5

6692165

Elbow

6

6692228

Nipple

7

6692211

Locking Valve

8

6692168

Water Filter

9

6692229

Hose Nipple

10

6692263

Clamping Ring

11

6692230

OPEN

11

6692234

Hose Nipple Dry Pump

11

6692233

Hose Nipple Dry Pump Closed Broom Bin

12

Water Pump Standard NLA

12

6692323

Water Pump Dry-Running

13

6692231

Quick-Release Coupling

14

6691958

Intermediate Piece Quick-Release Coupling

15

6692200

Water Hose (Brush Bin To 1850m)

15

6692201

Water Hose (Brush Bin From 1850m)

16

6692232

Hose Nipple

17

6692261

Reducer

18

6692316

T-Nipple

19

6692245

Pipe (Brush Bin To 1850m)

19

6692246

Pipe (Brush Bin From 2000m)

20

6692114

Cap

21

6692071

Bracket

22

6692216

Nipple

22

6692360

Nipple Closed Broom Bin

23

6692243

O-Ring

24

6691954

Foot

25

6692295

Sprayer

26

6692296

Sprayer Holder

27

6692248

Propeller

28

6692297

Sprayer Set

29

6691961

Adhesive

30

6692176

Frame Tank 125 Liters

30

6692177

Frame Tank 275 Liters
