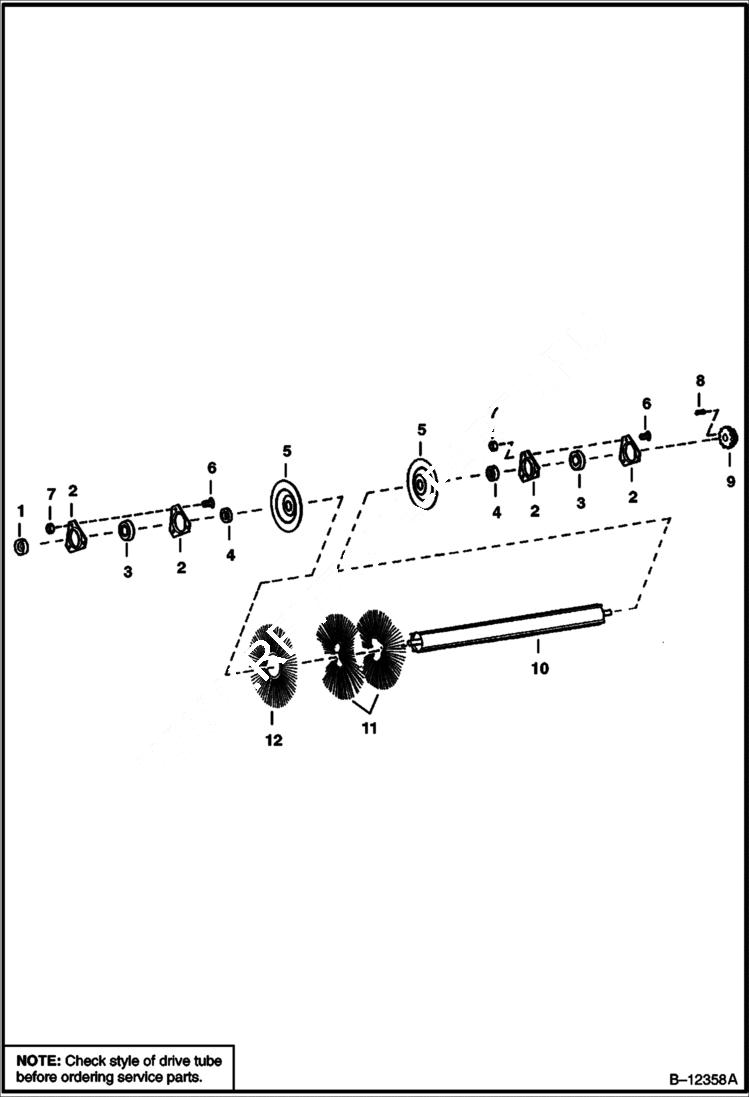

Запчасти Bobcat SWEEPER SWEEPER (Brushes With Convoluted Sections) (One Piece End Caps) (60) Loader

1

6515106

COLLAR

2

6599441

FLANGE

3

6538846

BEARING, SWEEPER W/Ref. 1 - Was 6599429 - A

4

6646638

COLLAR

5

6594340

CAP

6

10C616

BOLT 10 Was 6529105 - A

6

84G3716

SCREW 5 Use on Forward Sweeper

7

85D6

NUT, 5

8

7J4108

KEY

9

6594497

SPROCKET, SWEEPER BRUSHED

9

33G608

SCREW Was 33G-308 - D

10

DRIVE TUBE See BTI305 NLA - Was 6591471 - A

11

6652802

BRUSH, POLY CONVOLUTED 21 3/8'' factory option - A

11

6988131

WAFER, 21 3/8' EARTHFORCE CONVOLUTED

11

6989020

BRISTLE, POLY HD 21 3/8'' CONVOLUTED

11

6989142

BRISTLE, POLY/WIRE 21 3/8'' CONVOLUTED

11

BRUSH, STEEL CONVOLUTED 21 3/8'' NLA - factory option - Order 6989019 bristle - Was 6648798 - A

11

6989019

BRISTLE, WIRE 21 3/8'' CONVOLUTED

11

6989142

BRISTLE, POLY/WIRE 21 3/8'' CONVOLUTED

12

6648797

BRUSH, POLY STRAIGHT 21 3/8'' factory option - to fill space if needed

12

6988130

WAFER, 21 3/8' EARTHFORCE FLAT to fill space if needed

12

6989018

BRISTLE, POLY HD 21 3/8'' FLAT to fill space if needed
