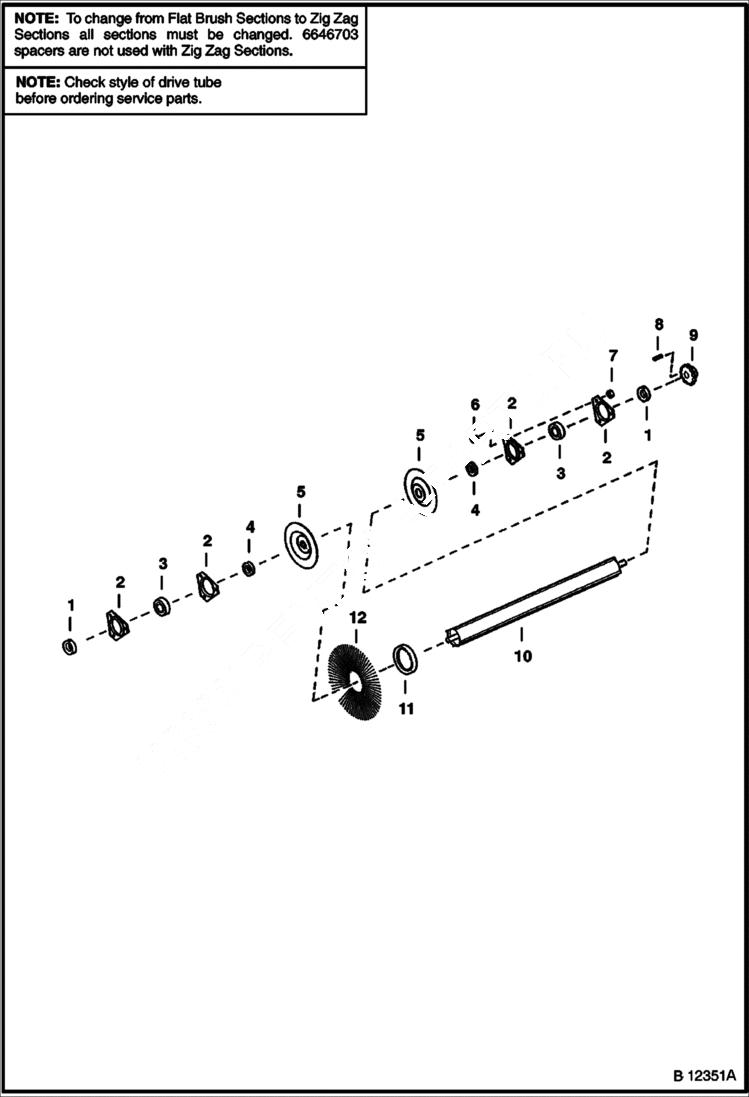

Запчасти Bobcat SWEEPER SWEEPER (Brushes W/Flat Sections) (72) Loader

1

6515106

COLLAR

2

6599441

FLANGE

3

6538846

BEARING, SWEEPER W/Ref. 1 - Was 6599429 - A

4

6646638

COLLAR

5

6594340

CAP

6

10C616

BOLT 10 Was 6529105 - A

7

85D6

NUT, 5

8

7J4108

KEY

9

6594497

SPROCKET, SWEEPER BRUSHED

9

33G608

SCREW Was 33G-308 - D

10

DRIVE TUBE See BTI305 NLA - Was 6594361 - A

11

6646703

SPACER

12

6648797

BRUSH, POLY STRAIGHT 21 3/8'' factory option - SEE NOTE - Was 6646640 - A

12

6988130

WAFER, 21 3/8' EARTHFORCE FLAT SEE NOTE

12

6989018

BRISTLE, POLY HD 21 3/8'' FLAT SEE NOTE
