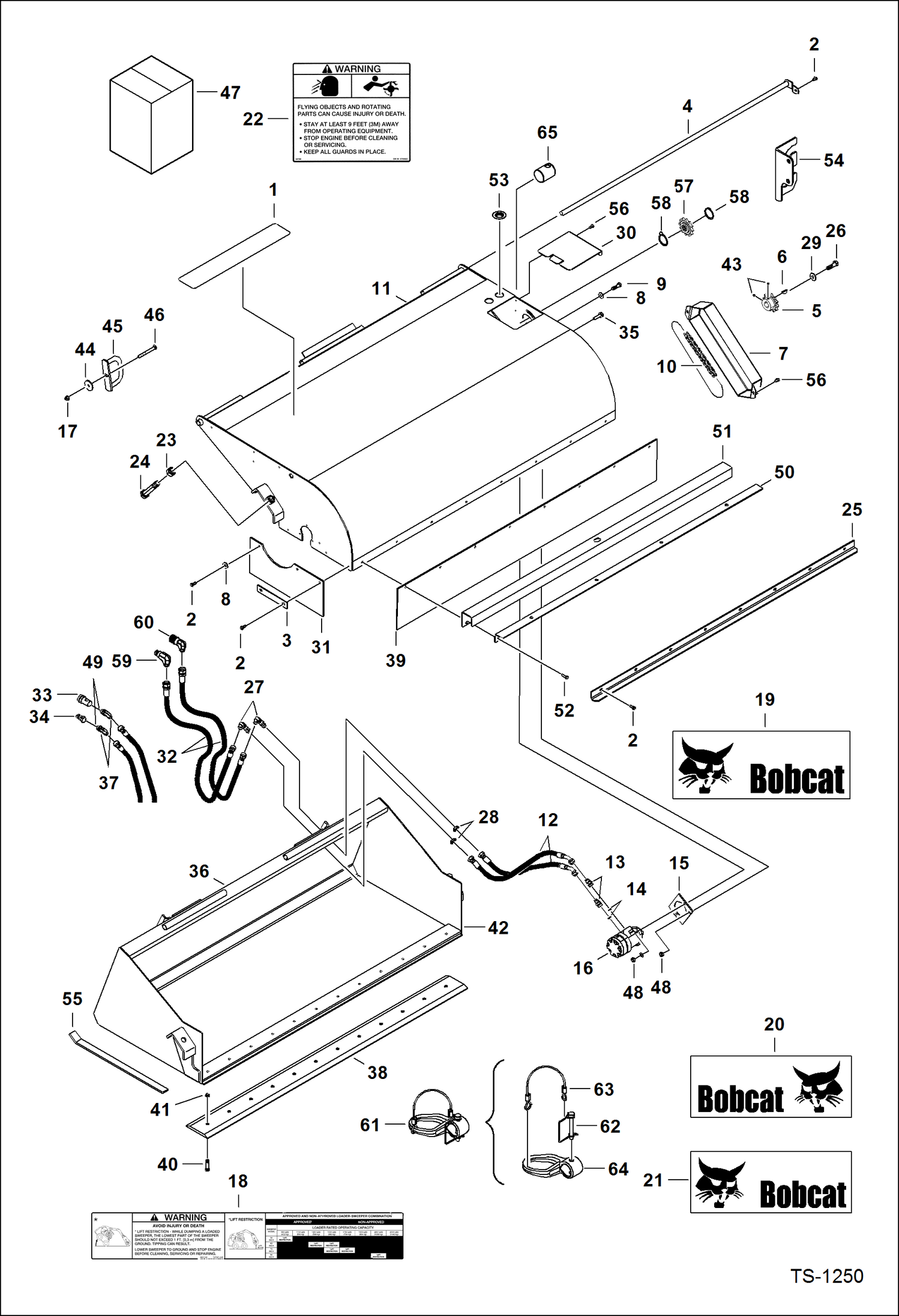

Запчасти Bobcat SWEEPER SWEEPER (54 7826) (60 7144) (72 7837) Loader

1

6569233

SAFETY TREAD

2

84G3716

SCREW 5

3

6707160

PLATE

4

6594792

HINGE PIN 54''

4

6591249

HINGE PIN 60''

4

6594364

HINGE PIN 72''

5

6813246

SPROCKET, SWEEPER Use with keyed motor shaft - Was 6594342 - A

6

6634899

KEY woodruff - Use W/Ref. 5

7

6707162

GUARD, COVER SPROCKET chain

8

27E8

WASHER 10

9

17C828

BOLT Was 17C832 - B

10

6594642

CHAIN

10

6515191

LINK press fit connector

10

6632387

LINK W/clip connector

11

6707830

FRAME 54''

11

6707151

FRAME 60''

11

6707841

FRAME, SWEEPER 72'' 72''

12

HOSE NLA - 54'' - Order 6537694 - Was 6594372 - A

12

6537694

HOSE Use for all sweepers

12

HOSE NLA - 72'' - Order 6537694 - Was 6702670 - A

13

15KB1010

FITTING, HYD CONNECTOR W/Ref. 14 - Was 15K000007B - B

14

79K10

O RING 10

15

6594341

MOUNT 4,3 mm (.17'') thick - Use with Eaton 103-1037-010 motor

15

7125868

MOUNT 6,35 mm (.25'') thick - Use with Eaton 104-3155-006 & 104-3938-006 motor

16

MOTOR See Illustration SWEEPER/ NA1338 See Illustration SWEEPER/ B18046A

17

85D6

NUT, 5

18

7127607

DECAL, WARNING See Illustration SWEEPER/ NA6248 - Was 6707991 - A

18

7130142

DECAL, WARNING See Illustration SWEEPER/ NA6248 - no-text

19

6809831

DECAL, LOGO BOBCAT AND HEAD front cover - Was 6727307 - B

20

DECAL NLA - Bobcat Sweeper - Order 6727323 - Was 6531053 - A

20

6727323

DECAL, LOGO BOBCAT AND HEAD LH

21

DECAL NLA - Bobcat Sweeper - Order 6727324 - Was 6531052 - A

21

6727324

DECAL, LOGO BOBCAT AND HEAD RH

21

7109473

DECAL, LOGO BOBCAT AND HEAD Use on both sides

22

6708822

DECAL, WARNING See Illustration SWEEPER/ NA6248

22

7130144

DECAL, WARNING See Illustration SWEEPER/ NA6248 - no-text

23

63D16

NUT Was 61D16 - B

24

6594345

BOLT

25

6707834

BRACKET 54'' - Use on sweepers without Ref. 51

25

6707157

BRACKET 60'' - Use on sweepers without Ref. 51

25

6707845

BRACKET 72'' - Use on sweepers without Ref. 51

26

17C412

BOLT 5 Use W/Ref. 5

27

88F7

ELBOW

28

86F7

LOCK NUT

29

6817775

WASHER Use W/Ref. 5

30

6707156

COVER motor

31

6707161

SHIELD, SWEEPER RUBBER rubber

32

6708220

HOSE, HYD ASSY 1448 mm (57'') long - .875'' threads - Use with straight couplers

32

7170596

HOSE, HYD 1448 mm (57'') long - .875'' thread & 1.063'' thread - Use with 90 degree couplers

33

6598758

COUPLER, POPPET FEMALE straight

33

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

34

6598757

COUPLER, POPPET MALE straight

34

6674688

COUPLER, FF MALE straight - Was 6667808 - A

34

6679841

SEAL Was 6672026 - A

35

31C816

BOLT Was 35C820 - B

36

BUCKET NLA - 54'' - Order 6707833, does not include bolt-on edge or hardware - W/Ref. 38, 40, 41 & 42 - Was 500029SUB - A

36

500030SUB

BUCKET 60'' - W/Ref. 38, 40, 41 & 42 - Was 6707146 - A

36

500031SUB

BUCKET, 72'' 72'' - W/Ref. 38, 40, 41 & 42 - Was 6707844 - A

37

17K7

ELBOW Use with poppet couplers - flat boss face

37

17KB1012

FITTING, HYD ELBOW Use with flush face couplers - flat boss face - Was 1302104B - A

37

6715651

ELBOW Use with flush face couplers - tapered boss face

37

97K12

O'RING flared end

38

6805366

EDGE, CUTTING BOLT ON BEVELED REV 53.88'' 54'' - Use 39C1032 bolt & 85D10 nut - holes in weld-on edge may have to be drilled to 17,5 mm (.688'') dia when ordering bolt-on edge, as the cutting edge

38

6805367

EDGE, CUTTING BOLT-ON 60'' Use 39C1032 bolt & 85D10 nut - holes in weld-on edge may have to be drilled to 17,5 mm (.688'') dia when ordering bolt-on edge, as the cutting edges now use a larger (5/

38

6805368

EDGE, CUTTING BOLT-ON 72'' Use 39C1032 bolt & 85D10 nut - holes in weld-on edge may have to be drilled to 17,5 mm (.688'') dia when ordering bolt-on edge, as the cutting edges now use a larger (5/

39

6707836

SHIELD 54'' - rubber

39

6707159

SHIELD, SWEEPER RUBBER 60'' - rubber

39

6707847

SHIELD, SWEEPER RUBBER 72'' - rubber

40

6704903

BOLT 5 1/2''

40

39C1032

BOLT 5/8'' - Use (9) with 54'' bucket, (10) with 60'' bucket & (12) with 72'' bucket

41

85D8

NUT, 5 1/2'' - Use (9) with 54'' bucket, (10) with 60'' bucket & (12) with 72'' bucket

41

93D10

NUT 5/8'' - Use Qty. 9 with 54''bucket & Qty. 12 with 72'' bucket - Was 85D000010B - B

41

85D10

NUT, 5 Use Qty. 10 with 60'' bucket

42

6707831

BAR 54''

42

6707150

BAR 60''

42

6707843

BAR 72''

43

15G505

SCREW Use W/Ref. 5

44

872229

WASHER

45

6706160

GUIDE

46

37C648

BOLT 540's, 640's & 740s

46

37C656

BOLT 750's

46

37C664

BOLT 7753, 853 & 840's

47

6716684AR

KIT decal - AR=Spanish (Argentine)

47

6716684BR

KIT decal - BR=Portugese (Brazil)

47

6716684JP

KIT decal - JP=Japanese

47

6716685AR

KIT translation - AR=Spanish (Argentine) - translation kit includes safety manual, operators manual and decal kit

47

6716685BR

KIT translation - BR=Portugese (Brazil) - translation kit includes safety manual, operators manual and decal kit

48

7184256

CANOPY U-BOLT NUT 8 Was 85D8 - B

49

79K12

O RING 10 for flat boss face

49

99K12

O RING tapered boss face

50

6716817

BRACE 54'' - Use with Ref. 51

50

6716815

BRACE 60'' - Use with Ref. 51

50

6716813

BRACE 72'' - Use with Ref. 51

51

6716816

BRACE 54''

51

6716814

BRACE 60''

51

6716812

BRACE 72''

52

84G3720

BOLT

53

6676173

PLUG

54

6808305

BRACKET

55

6730269

SKID BAR

56

84G3712

BOLT 5

57

7165291

SPROCKET splined

58

21J20

RING, SNAP Use W/Ref. 57

59

7168432

COUPLER, FF MALE 90 degree

60

7168433

COUPLER, FF FEMALE 90 degree

61

7161953

GUIDE, HOSE ASSY Ref. 62-64

62

7161559

PIN, SNAPPER

63

CABLE ASSY NSS - 304,8 mm (12'') long - Order 6558309 wire rope & (2) 6558310 sleeve - Was 7167775 - D

63

6558309

WIRE ROPE bulk - sold per foot

63

6558310

SLEEVE

64

GUIDE NSS - Order Ref. 61

65

7170300

PIN, PIVOT
