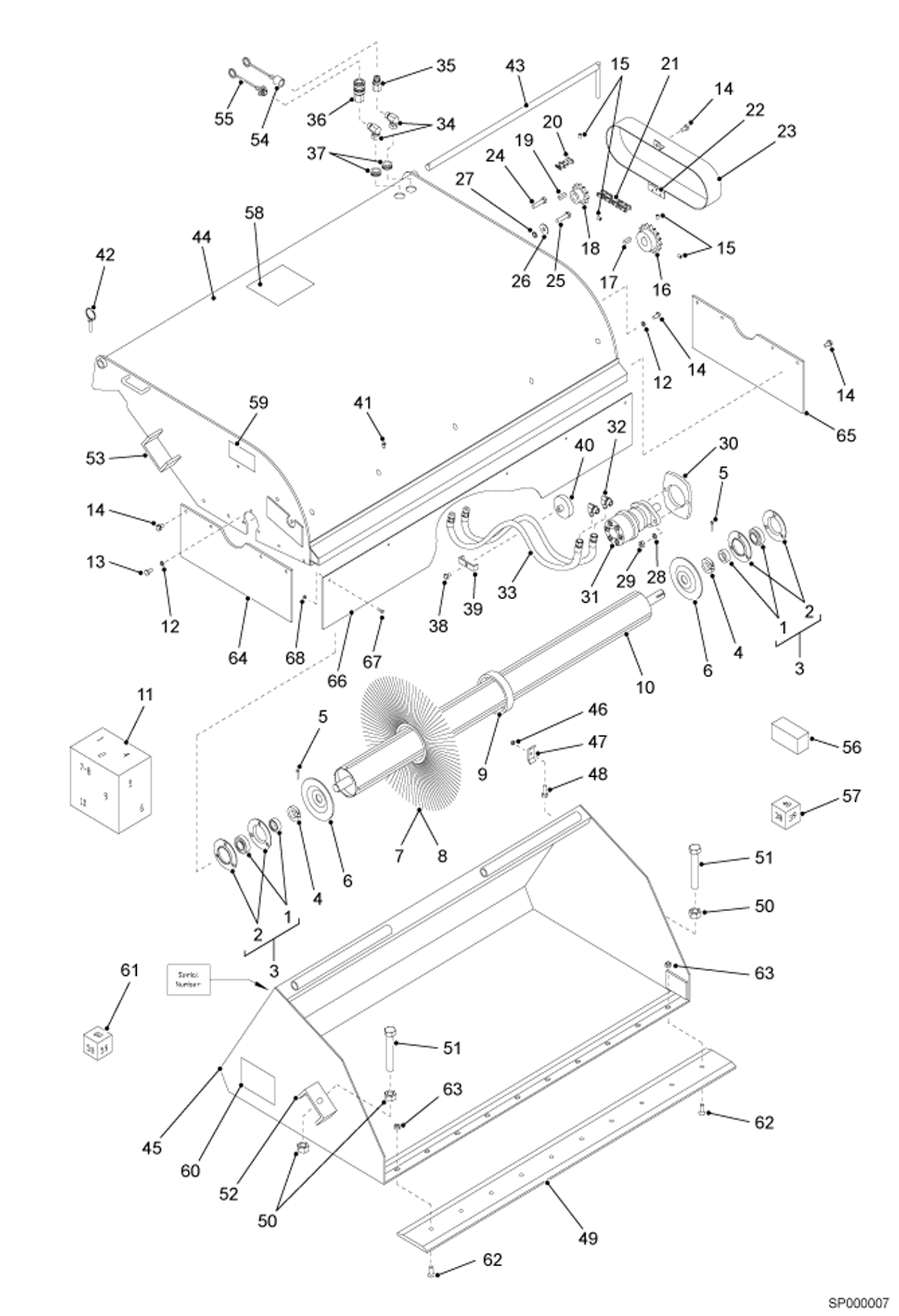

Запчасти Bobcat SWEEPER Closed Broom Bin 48 (1220 mm) (Europe Only) Loader

1

6685610

Eccentric +Bearing

2

6685611

Bearing Plate

3

6685612

Bearing Kit

4

6685613

Clamping Ring

5

6685614

Socket Nut

6

6685447

Locking Flange

7

6685450

Brush Ring PPN

8

6685451

Brush Ring Steel

9

6679646

Intermediate Ring

10

6691964

Axle Core 48'' (1220mm)

11

6692080

Brush Core Kit (1-10) 48'' (1220mm)

12

6647959

Grower

13

6647961

Bolt

14

6692060

Bolt

15

6647929

Socket Nut

16

6647924

Gear

17

6647930

Cotter

18

6647927

Gear

19

6643540

Cotter

20

6692137

Chainj Lock

21

6647921

Chain + Lock

22

6692181

Hinge

23

6692135

Chain Guard

24

6647937

Bolt

25

6672062

Bolt

26

6692322

Washer

27

6692212

Locking Washer

28

6647939

Grower

29

6647940

Nut

30

6647935

Motor Flange

31

6647933

Hydromotor

32

6692220

Nipple

33

6691763

Flexible Hoses

34

6692221

Nippel

35

6647978

Quick-Release Coupeling Male

36

6647975

Quick-Release Coupeling Female

37

6647988

Lead-Through Rubber

38

6695054

Bolt

39

6648006

Flexible Clamp

40

6692213

Magnet

41

6692315

Threaded Nipple

42

6647997

Transfer Pin

43

6647992

Hinge Pin 48'' (1220mm)

44

6679647

Brush Cap 48'' (1220mm)

45

6691724

Bin 48'' (1220mm)

46

6648007

Wing Nut

47

6692140

Flexible Clamp

48

6692063

Bolt (welded)

49

6685749

Bottom Blade 48'' (1220mm)

50

6692240

Adjusting Nut

51

6692055

Adjusting Bolt

52

6691959

Adjusting Slot (Welded)

53

6691717

Adjusting Piece (Welded)

54

Dust Cap Female NLA

55

Dust Cap Male NLA

56

6692270

Seal Kit Hydromotor

57

6647990

GEARCASE

58

6692153

Decal

59

6692154

Decal

60

6692156

Decal Broom Bucket

61

6692157

Decal Kit

62

6685764

Bolt Bottom Blade

63

6685766

Lock Nut Bottom Blade

64

6688587

Side Rubber Right

65

6688588

Side Rubber Left

66

6679657

Rubber For 48'' (1220mm)

67

6692056

Bolt

68

6692241

Nut
