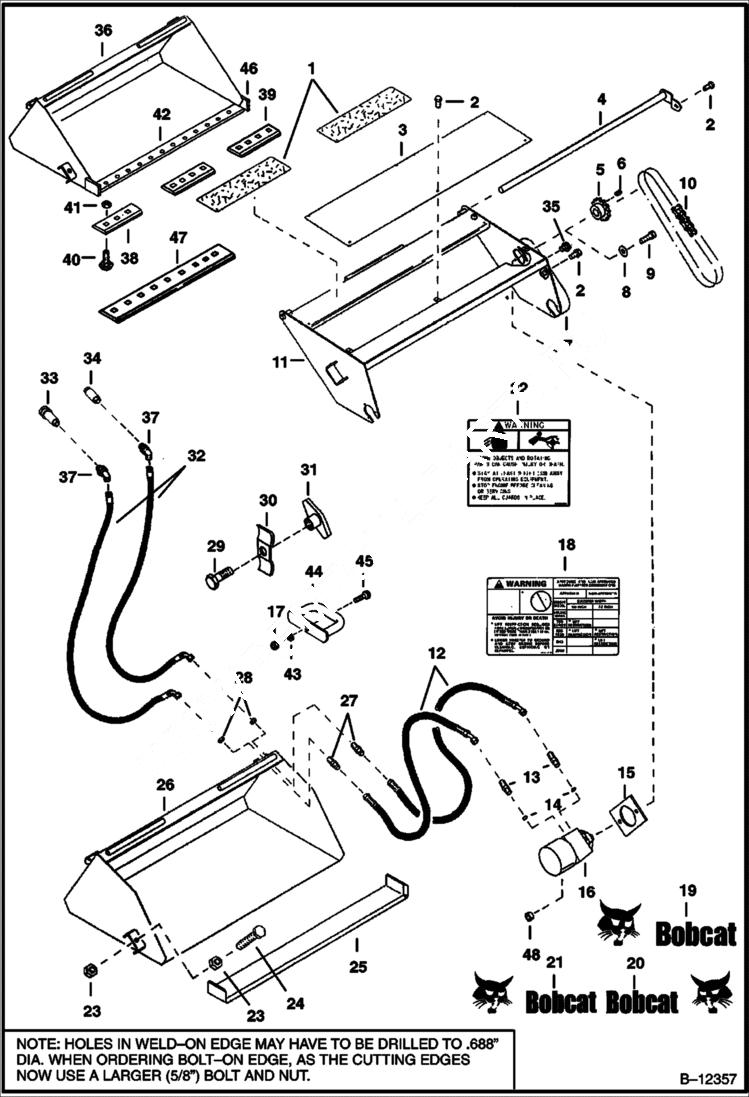

Запчасти Bobcat SWEEPER SWEEPER (54 4395) (60 4347) (72 4354) Loader
№
Артикул
Название
Примечание
Количество
1
6569233
SAFETY TREAD
3
6594797
COVER 54'' (1371,6mm)
3
6594382
COVER 60'' (1524mm)
3
6594388
COVER 72'' (1828,8mm)
4
6594792
HINGE PIN 54'' (1371,6mm)
4
6591249
HINGE PIN 60'' (1524mm)
4
6594364
HINGE PIN 72'' (1828,8mm)
5
6813246
SPROCKET, SWEEPER Was 6594342 - A
5
15G505
SCREW
6
6634899
KEY woodruff
7
6594348
GUARD
7
6594483
HINGE guard
8
27E8
WASHER 10
9
17C828
BOLT
10
6594642
CHAIN
10
6515191
LINK connector, press fit
10
6632387
LINK connector, W/Clip
11
6594789
FRAME 54'' (1371,6mm)
11
FRAME See BTI300 NLA - 60'' (1524mm) For weld on cutting edge - Order 6705476 - Was 6591243 - A
11
6705476
FRAME 60'' (1524mm)
11
FRAME See BTI300 NLA - 72'' (1828,8mm) For weld on cutting edge - Order 6705478 - Was 6594358 - A
11
6705478
FRAME 72'' (1828,8mm)
12
6537694
HOSE Was 6594372 - A
13
15K7
FITTING W/Ref. 14
15
6594341
MOUNT
16
MOTOR See Illustration SWEEPER/ B18046A See Illustration SWEEPER/ D1757A See Illustration SWEEPER/ B18046
17
85D6
NUT, 5 Was 85D000008B - B
18
6531055
DECAL warning - Was 6594379 - A
19
6809831
DECAL, LOGO BOBCAT AND HEAD Was 6727307 - B
20
DECAL NLA - Bobcat Sweeper - Order 6727323 - Was 6594380 - A
20
DECAL NLA - 54'' Bobcat Sweeper - Order 6727323 - Was 6531053 - A
20
6727323
DECAL, LOGO BOBCAT AND HEAD
21
DECAL NLA - Bobcat Sweeper - Order 6727324 - Was 6594377 - A
21
DECAL NLA - 54'' Bobcat Sweeper - Order 6727324 - Was 6531052 - A
21
6727324
DECAL, LOGO BOBCAT AND HEAD
22
6708822
DECAL, WARNING See Illustration SWEEPER/ NA6248 - Was 6577324 - A
22
7130144
DECAL, WARNING See Illustration SWEEPER/ NA6248 - no-text
23
61D16
LCKNUT
24
6594345
BOLT
25
6594397
EDGE, CUTTING WELD ON 55.09'' 54'' (1371,6mm)
25
6577904
CUTTING EDGE 60'' (1524mm) - Was 6594393 - A
25
6594356
EDGE, CUTTING WELD ON BEVELED 73'' 72'' (1828,8mm)
26
BUCKET NLA - 54'' (1371,6mm) - Order Ref. 36 - Was 6594396 - A
26
BUCKET NLA - 60'' (1524mm) - Order Ref. 36 - Was 6705477 - A
26
BUCKET NLA - 72'' (1828,8mm) - Order Ref. 36 - Was 6705479 - A
27
45K7
CONNECTR
28
86F7
LOCK NUT
29
17C680
BOLT
30
6563353
CLAMP
31
6647668
KNOB plastic
32
6594371
HOSE
33
6598758
COUPLER, POPPET FEMALE straight
34
6598757
COUPLER, POPPET MALE straight
34
6679841
SEAL Was 6672026 - A
35
35C820
BOLT Was 6511995 - A
36
BUCKET See BTI300 NLA - 54'' - W/Ref. 42 - Was 6704042 - A
36
BUCKET See BTI300 NLA - 60'' (1524 mm) - W/Ref. 42 - Was 6705477 - A
36
BUCKET See BTI300 NLA - 72'' (1829 mm) - W/Ref. 42 - Was 6705479 - A
37
17K7
ELBOW Use with poppet couplers
37
17KB1012
FITTING, HYD ELBOW Use with flush face couplers - Was 1302104B - A
38
CUTTING EDGE NLA - 18'' (457,2 mm) - Use (3) with 54'' (1371,6 mm) bucket - Use (2) with 60'' (1524 mm) bucket & (1) of Ref. 39 - Order Ref. 47 - Was 6704029 - A
39
CUTTING EDGE NLA - 24'' (609,6 mm) - Use (1) with 60'' (1524 mm) bucket & (2) of Ref. 38 - Use (3) with 72'' (1828,8 mm) bucket - Order Ref. 47 - Was 6704009 - A
40
6704903
BOLT 5 1/2'' - Use Qty. 9 with 54'' (1372mm) bucket, Qty. 10 with 60'' (1524mm) bucket & Qty. 12 with 72'' (1829mm) bucket
40
BOLT 5/8'' - Use Qty. 9 with 54'' (1372mm) bucket, Qty. 10 with 60'' (1524mm) bucket & Qty. 12 with 72'' (1829mm) bucket
41
85D8
NUT, 5 1/2'' - Use Qty. 9 with 54'' (1372mm) bucket, Qty. 10 with 60'' (1524mm) bucket & Qty. 12 with 72'' (1829mm) bucket
41
NUT 5/8'' - Use Qty. 9 with 54'' (1372mm) bucket, Qty. 10 with 60'' (1524mm) bucket & Qty. 12 with 72'' (1829mm) bucket - Was 85D000010B - B
42
6707831
BAR 54'' (1372mm) - Was 6704039 - A
42
6707150
BAR 60''(1524mm) - Was 6704030 - A
42
6707843
BAR 72''(1829mm) - Was 6704008 - A
43
872229
WASHER
44
6706160
GUIDE
45
37C660
BOLT
46
6704007
BRACKET
47
EDGE, CUTTING BOLT ON BEVELED REV 53.88'' Uses 39C1032 bolt & 85D10B nut - SEE NOTE - Was 6706554 - A
47
6805367
EDGE, CUTTING BOLT-ON 60'' Uses 39C1032B bolt & 85D10 nut - SEE NOTE - Was 6706555 - A
47
6805368
EDGE, CUTTING BOLT-ON 72'' Uses 39C1032 bolt & 85D10 nut - SEE NOTE - Was 6706556 - A
48
85D8
NUT, 5
Выбрано товаров: 81
