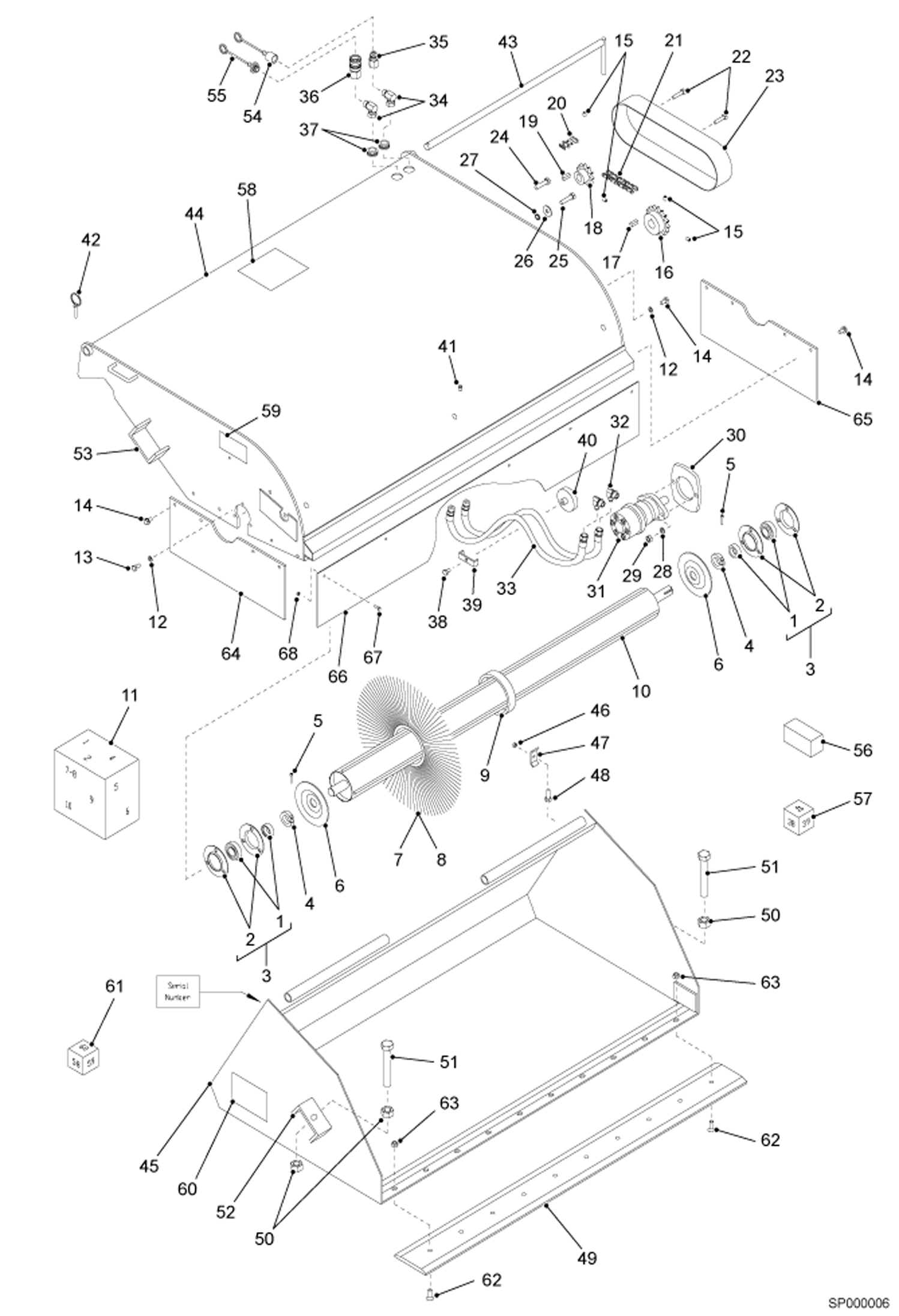

Запчасти Bobcat SWEEPER Closed Broom Bin 44 (1100 mm) (Europe Only) Loader

1

6685610

Eccentric +Bearing

2

6685611

Bearing Plate

3

6685612

Bearing Kit

4

6685613

Clamping Ring

5

6685614

Socket Nut

6

6685446

Locking Flange

7

6685448

Brush Ring PPN

8

6685449

Brush Ring Steel

9

6647966

Intermediate Ring

10

6691978

Axle Core 44'' (1100mm)

11

6692093

Brush Core Kit (1-10) 44'' (1100mm)

12

6647959

Grower

13

6647961

Bolt

14

6692060

Bolt

15

6647929

Socket Nut

16

6647923

Gear

17

6647930

Cotter

18

6647926

Gear

19

6643540

Cotter

20

6692137

Chainj Lock

21

6647920

Chain + Lock

22

6692061

Bolt

23

6692136

Chain Guard

24

6647937

Bolt

25

6672062

Bolt

26

6692322

Washer

27

6692322

Washer

28

6647939

Grower

29

6647940

Nut

30

6647935

Motor Flange

31

6647932

Seal Kit Hydromotor

32

6647984

Nipple

33

6647980

Flexible Hose

34

6692223

Nipple

35

6647974

Quick-Release Coupeling Male

36

6647977

Quick-Release Coupeling Female

37

6692264

Lead-Through Rubber

38

6695054

Bolt

39

6648006

Flexible Clamp

40

6692213

Magnet

41

6692315

Threaded Nipple

42

6647997

Transfer Pin

43

6647991

Hinge Pin 44'' (1100mm)

44

6679653

Brush Cap 44'' (1100mm)

45

6691737

Bin 44'' (1100mm)

46

6648007

Wing Nut

47

6692140

Flexible Clamp

48

6692063

Bolt (welded)

49

6685748

Bottom Blade 44'' (1100mm)

50

6692240

Adjusting Nut

51

6692055

Adjusting Bolt

52

6691959

Adjusting Slot (Welded)

53

6691717

Adjusting Piece (Welded)

54

Dust Cap Female NLA

55

Dust Cap Male NLA

56

6692274

Seal Kit Hydromotor

57

6647990

GEARCASE

58

6692153

Decal

59

6692154

Decal

60

6692156

Decal Broom Bucket

61

6692157

Decal Kit

62

6685764

Bolt Bottom Blade

63

6685766

Lock Nut Bottom Blade

64

6692267

Rubber Right

65

6692268

Rubber Left

66

6679655

Rubber For 44'' (1100mm)

67

6692056

Bolt

68

6692241

Nut
