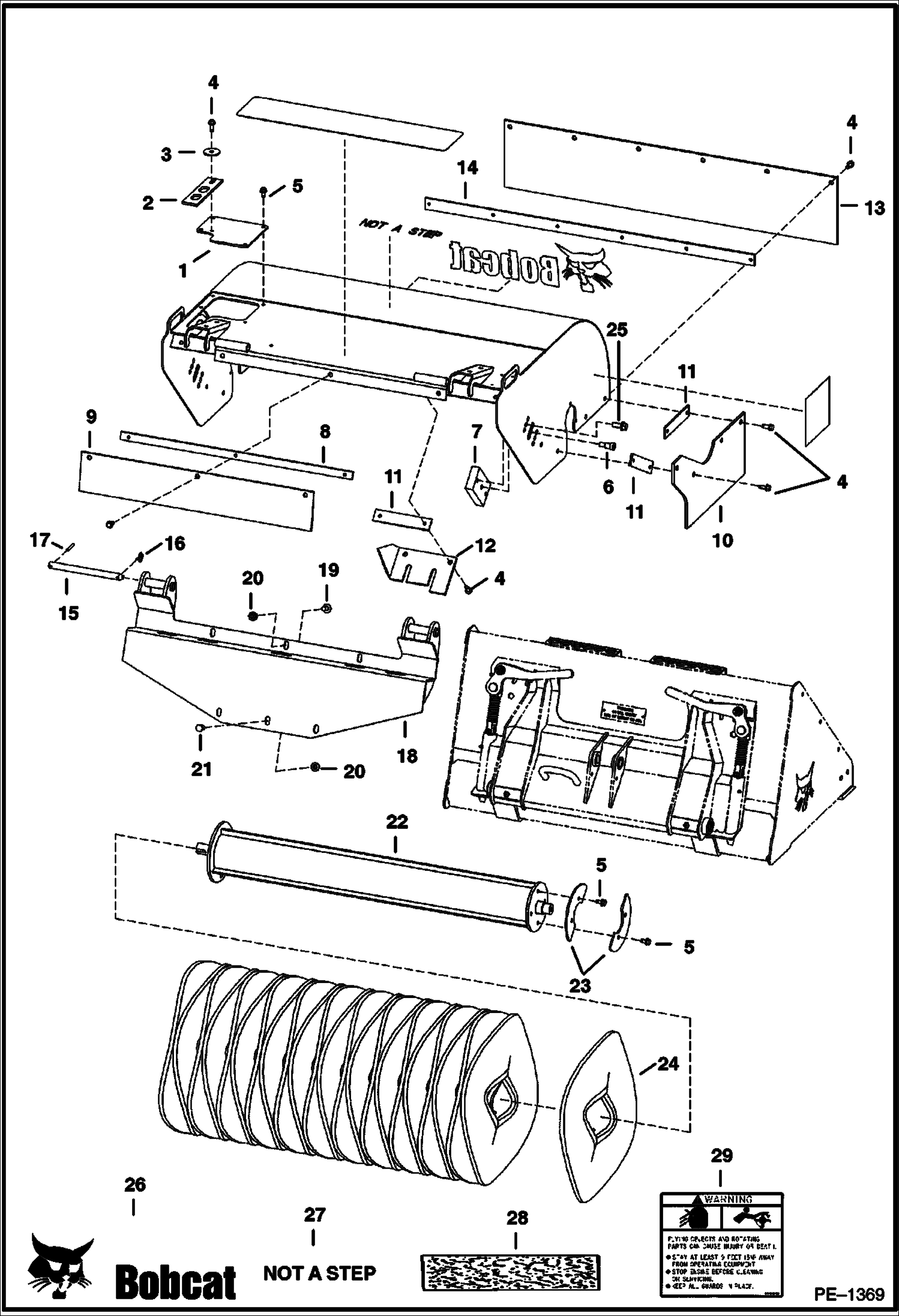

Запчасти Bobcat SWEEPER SWEEPER (463) (44 9846) Loader

1

6809711

COVER

2

6809746

COVER dust

3

6705232

WASHER

4

84G3716

SCREW 5

5

84G3712

BOLT 5

6

35C820

BOLT

7

6809765

STOP threaded holes

8

6809878

BAR

9

6809894

SHIELD rubber front

10

6809642

SHIELD rubber side

11

6809650

PLATE shield

12

6809745

SHIELD rubber top

13

6809641

SHIELD rubber bottom

14

6809649

PLATE shield

15

6809636

PIN

16

6649706

PIN lynch

17

ROLL PIN NLA - Was 14J002528B - A

18

6809562

MOUNT

19

35C816

BOLT

20

97D8

NUT

21

17C816

BOLT

22

6809552

DRIVE TUBE

23

6708813

COVER

24

6652802

BRUSH, POLY CONVOLUTED 21 3/8'' factory option

24

6988131

WAFER, 21 3/8' EARTHFORCE CONVOLUTED

24

6989020

BRISTLE, POLY HD 21 3/8'' CONVOLUTED

24

6989142

BRISTLE, POLY/WIRE 21 3/8'' CONVOLUTED

25

38C1012

BOLT, SHOULDER

26

6809831

DECAL, LOGO BOBCAT AND HEAD

27

6657351

DECAL, STEP See Illustration SWEEPER/ NA6248

27

7130136

DECAL, STEP See Illustration SWEEPER/ NA6248 - no-text

28

6702718

SAFETY TREAD

29

6708822

DECAL, WARNING See Illustration SWEEPER/ NA6248

29

7130144

DECAL, WARNING See Illustration SWEEPER/ NA6248 - no-text
