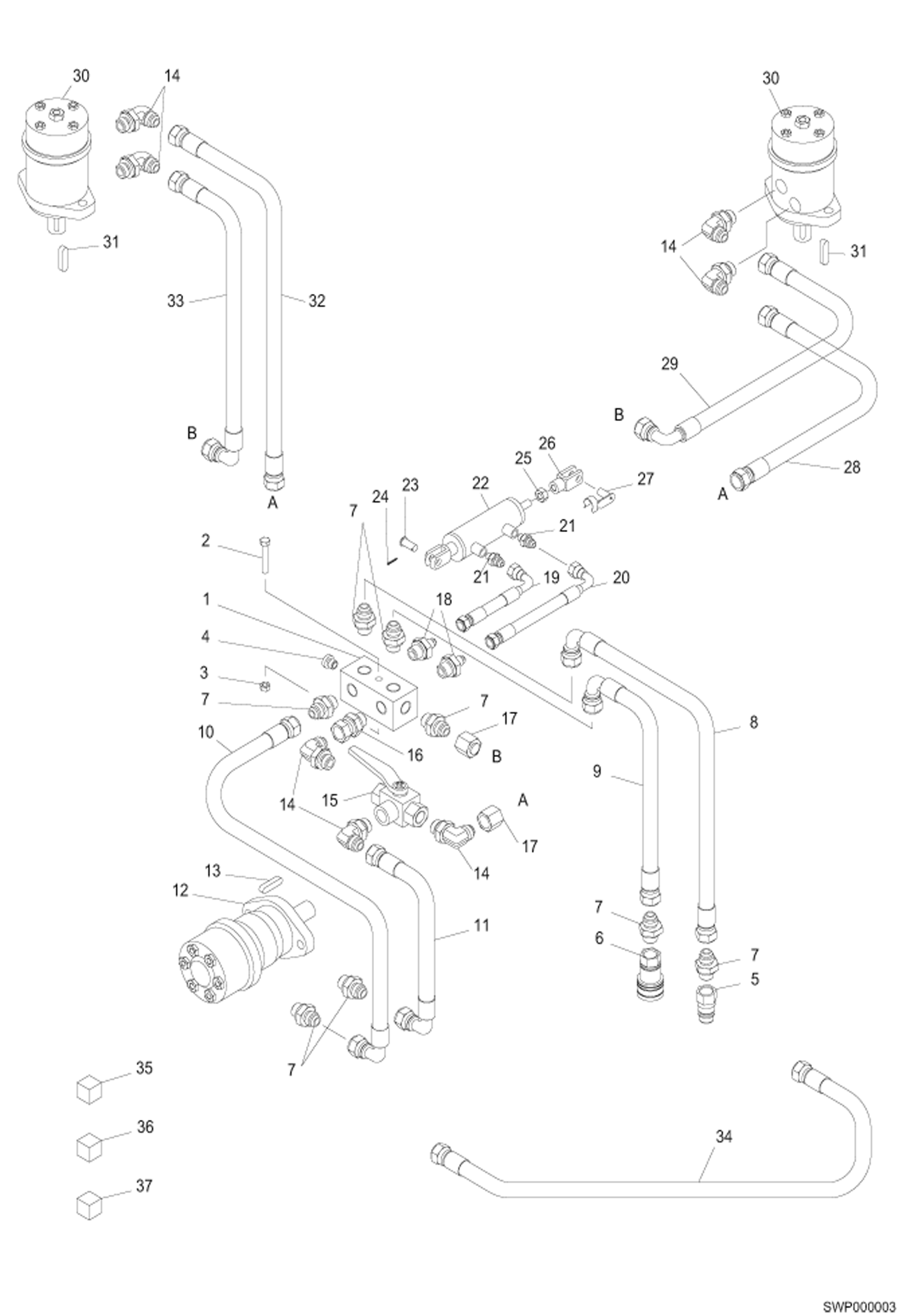

Запчасти Bobcat SWEEPER Hydraulic Telescopic

1

6690884

Block Port

2

6690880

Bolt

3

6690786

Lock Nut

4

6690849

Plug

5

6690848

Coupler Male

5

6690886

Coupler Male

6

6690847

Coupler Female

6

6690885

Coupler Female

7

6690874

Nipple

8

6690878

Connector

9

6690879

Connector

10

6690887

Flexible Main Motor 2100

11

6690888

Motor 2100

12

6690800

Motor Hydraulic

13

6690889

Cotter Motor Main

14

6690875

Nipple

15

6690838

Valve Three-Way

16

6690876

Nipple

17

6690890

Cap

18

6690877

Nipple

19

6690839

Cylinder

20

6690840

Cylinder

21

6690841

Fitting Connector

22

6690842

Cylinder

23

6690843

Pin

24

6690844

Pin

25

6690808

Nut

26

6690845

Fork

27

6690846

Clip Lock

28

6690891

Hose Assy

29

6690892

Hose Assy

30

6690819

Motor Hydraulic

31

6690818

Key

32

6690893

Hose Assy

33

6690894

Hose Assy

34

6690895

Hose Assy

35

6690850

Seal Kit Motor

36

6690851

Seal Kit Main Motor

37

6690852

Seal Kit Cylinder
