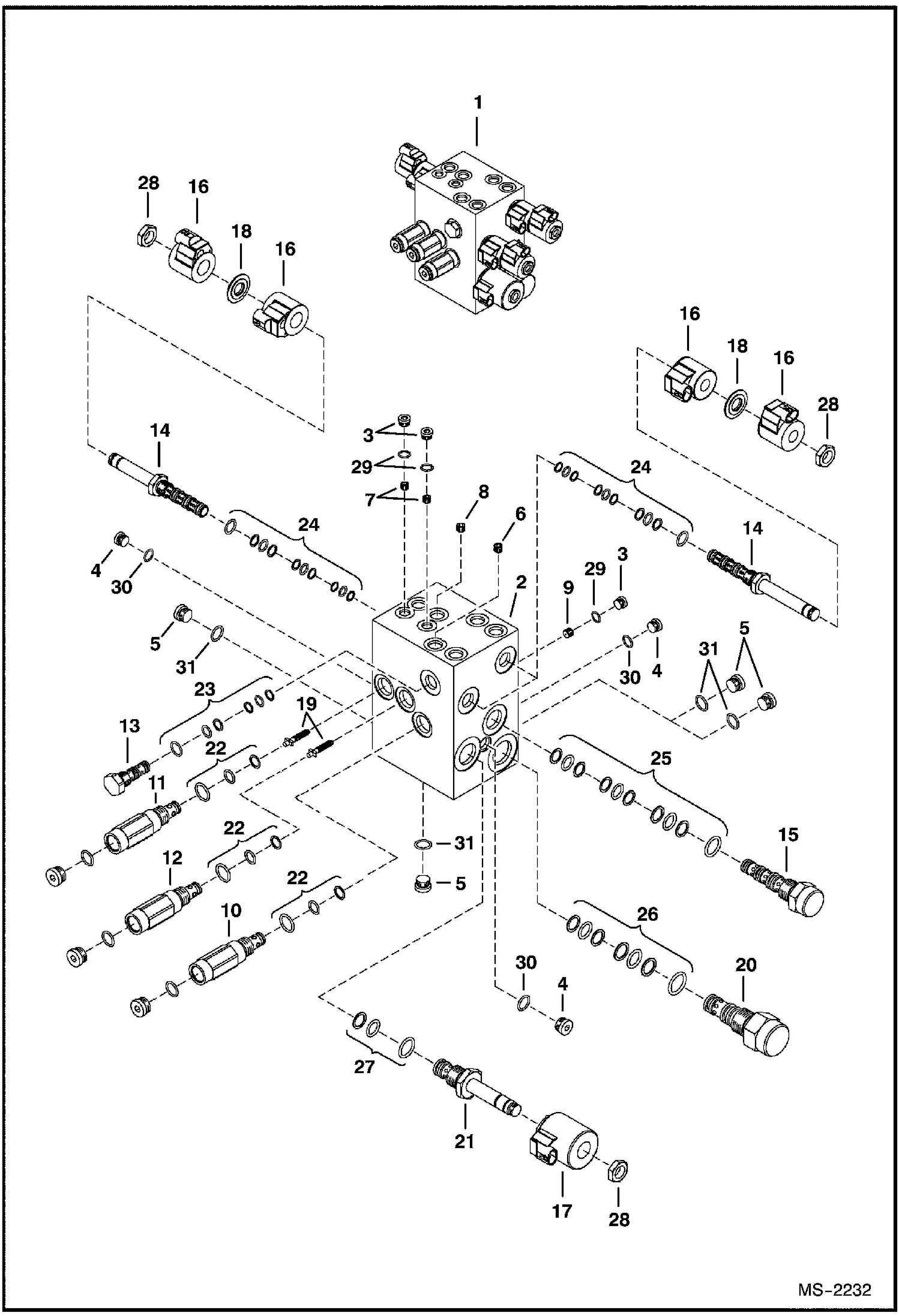

Запчасти Bobcat STUMP GRINDER STUMP GRINDER (Control Valve) (SGX60 A00700500 & Above) Loader

1

6688402

VALVE, CONTROL W/Ref. 2-31

2

BLOCK NSS - Order Ref 1

3

6665719

PLUG W/Ref. 29

4

6669620

PLUG W/Ref. 30

5

6674548

PLUG

6

6690583

ORIFICE .025

7

6690584

ORIFICE .038

8

6690585

ORIFICE .032

9

6690586

ORIFICE .046

10

6677353

RELIEF VALVE 2000 psi

11

6688678

RELIEF VALVE 2680 psi

12

6686399

RELIEF VALVE 3000 psi

13

6677354

CHECK VALVE

14

6677153

SOLENOID

15

6677351

ELEMENT

16

6688356

COIL

17

6690587

COIL

18

6689389

SPACER

19

6690588

PISTON pilot

20

6676313

VALVE logic

21

6677352

VALVE, SOLENOID

22

6672515

KIT, SEAL

23

6677150

SEAL KIT

24

6672756

KIT, SEAL

25

6667625

SEAL KIT

26

6676314

SEAL KIT

27

6667626

SEAL KIT

28

7D8

NUT 5

29

O RING 10 NSS - Order Ref. 3 - Was 79K4 - B,D

30

O RING 10 NSS - Order Ref. 4 - Was 79K6 - B,D

31

79K8

O RING 10
