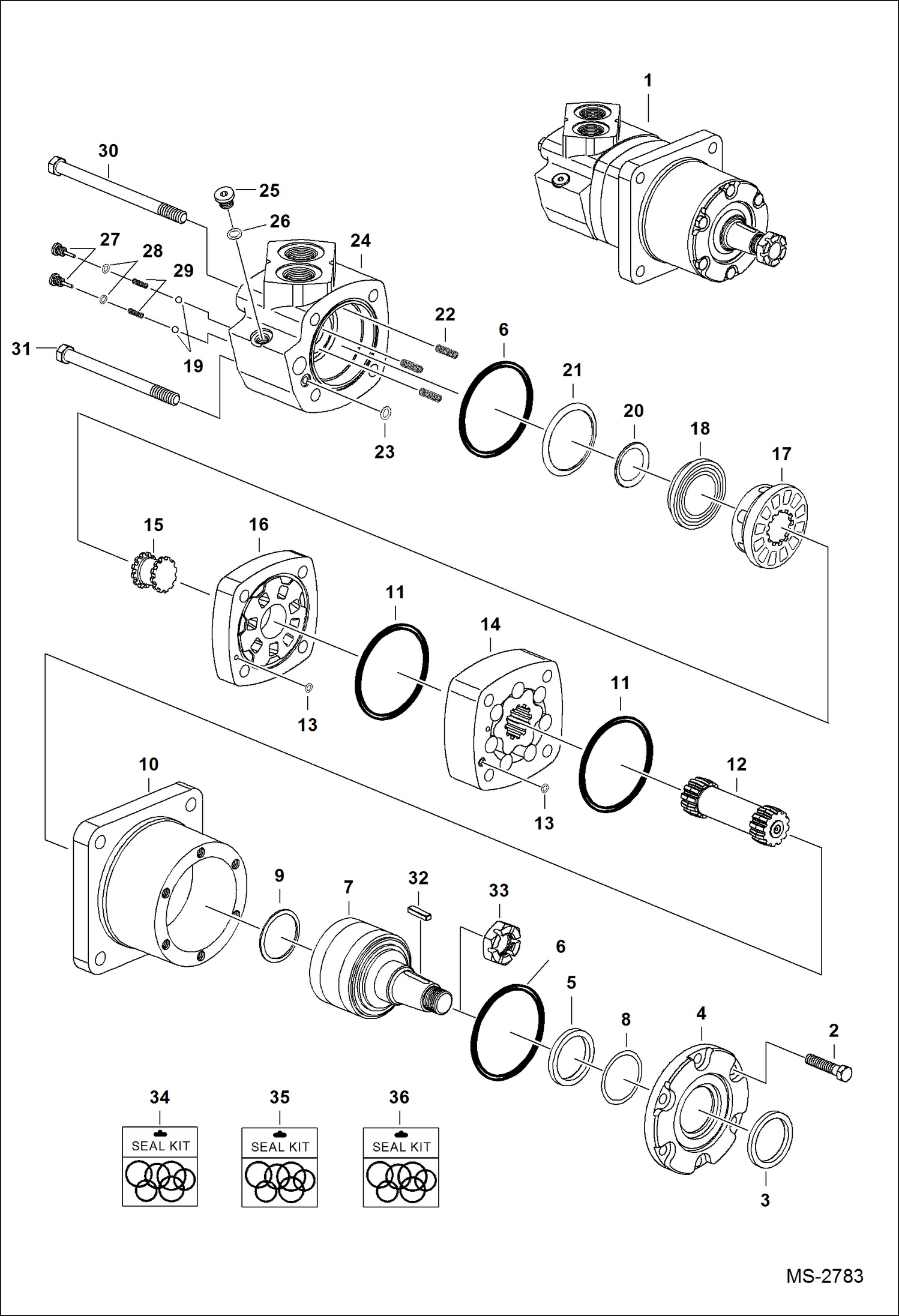

Запчасти Bobcat STUMP GRINDER STUMP GRINDER (Motor) (Eaton) (SGX60 A00701000 & Above) Loader

1

7001500

MOTOR, DRIVE HYD W/Ref. 2-32 - Eaton 113-1157-006

2

6664809

SCREW

3

6664810

SEAL

4

6677397

RETAINER

5

6665556

SEAL

6

58K44

O RING 10

7

7002709

SHAFT, MOTOR DRIVE

8

6665557

RING, BACK-UP

9

6664815

SEAL, OIL

10

6693531

HOUSING

11

6513524

O'RING

12

6658758

DRIVE

13

6667332

SEAL

14

6658761

GEROLER

15

6513518

DRIVE

16

6661809

PLATE valve

17

6513519

VALVE

18

6658757

RING balancing

19

10J8

BALL

20

6513529

SEAL inner

21

6513520

SEAL

22

6190121

SPRING

23

25K20010

O RING 10

24

6664820

HOUSING

25

1992104

PLUG W/Ref. 26

26

6664822

O-RING

27

1992107

PLUG check assy - W/Ref. 28

28

79K8

O RING 10

29

6190116

SPRING

30

6658755

SCREW

31

6658754

BOLT

32

6669431

KEY, SQUARE

33

6669430

NUT, SLOTTED

34

6664823

SEAL KIT rear - W/Ref. 6, 11, 13, 20, 21, 23, 26 & 28

35

6664824

SEAL KIT shaft - W/Ref. 3, 5, 6 & 9

36

7002710

KIT, SEAL complete - W/Ref. 3, 5, 6, 9, 11, 13, 20, 21, 23, 26 & 25
