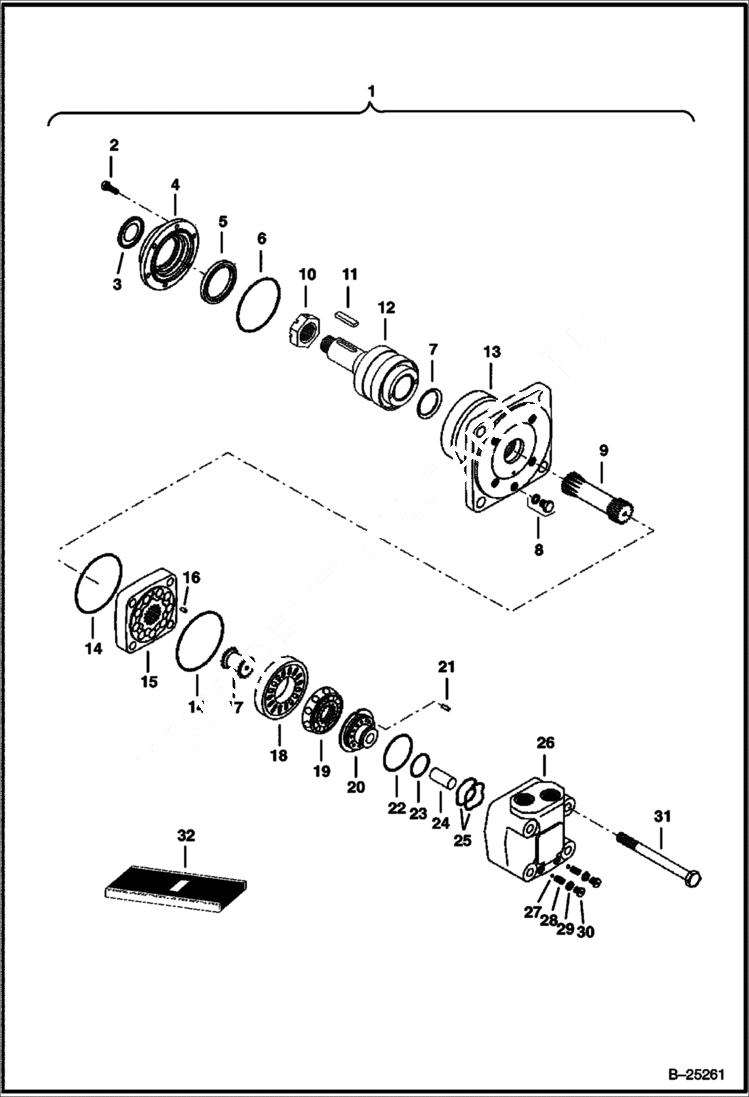

Запчасти Bobcat STUMP GRINDER STUMP GRINDER (Motor) (Sauer) (SGX60 A00700101 - 00999) Loader

1

6688392

MOTOR W/Ref. 2-31

2

6688684

BOLT

3

6688685

SEAL

4

6688686

COVER

5

6688687

SEAL

6

6681335

O-RING

7

6688688

SEAL

8

6688689

PLUG

9

6688690

SHAFT

10

6688691

NUT

11

6688692

KEY

12

SHAFT ASSY NSS - Order Ref. 1

13

HOUSING NSS - Order Ref. 1

14

6688693

O-RING

15

6688694

GEROLER

16

6688695

PIN

17

6688696

DRIVE

18

6688697

PLATE

19

6688698

DISC

20

6688699

PLATE

21

6688700

PIN

22

6688701

O-RING

23

6688702

O-RING

24

6688703

SPACER

25

6688704

WASHER

26

6688705

COVER

27

6688706

BALL

28

6688707

SPRING

29

6688708

WASHER

30

6688709

PLUG

31

6688710

BOLT

32

6688711

SEAL KIT W/Ref. 3, 5, 6, 7, 14, 22 & 23
