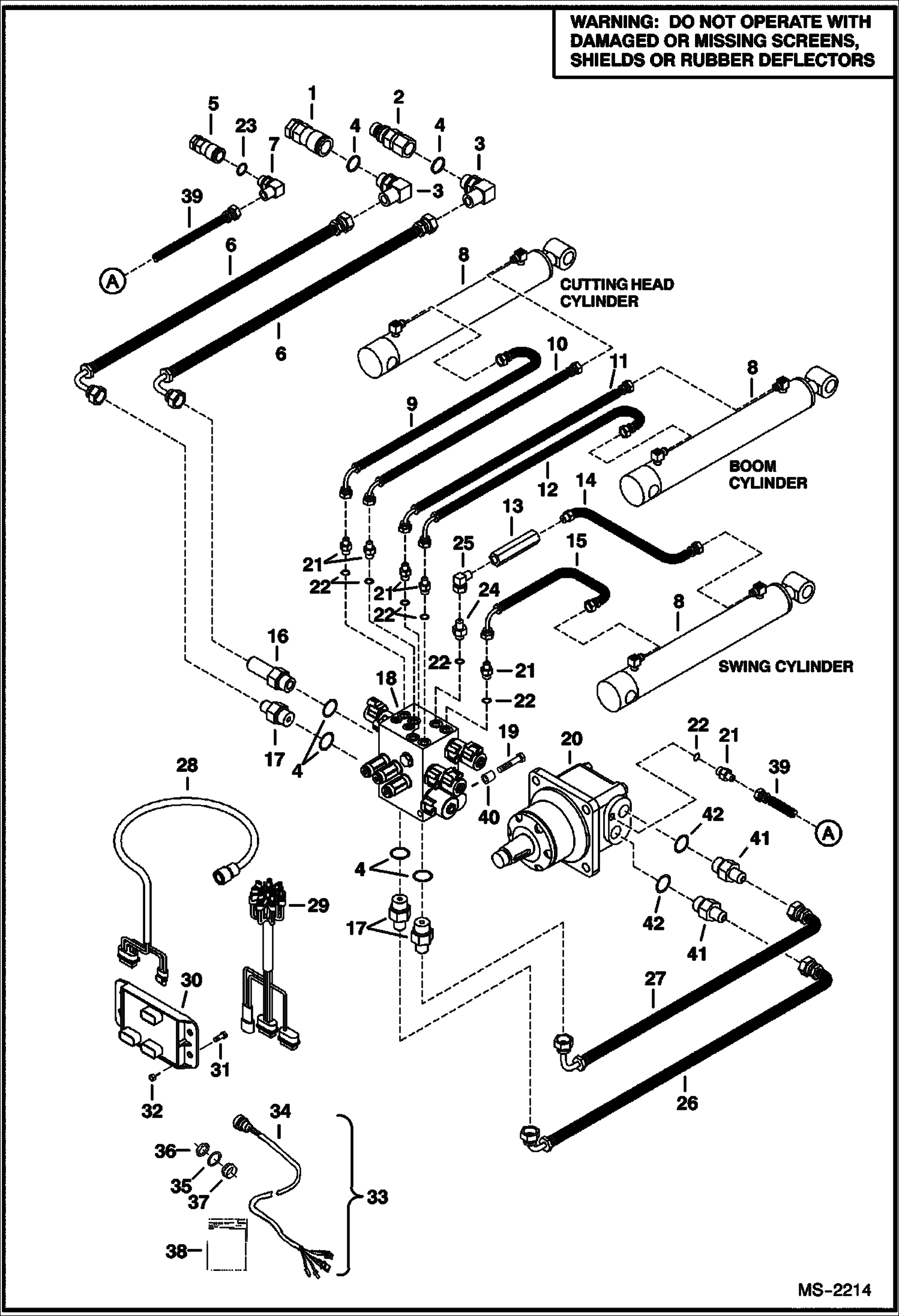

Запчасти Bobcat STUMP GRINDER STUMP GRINDER (Hydraulic System) (SGX60 A00700500 & Above) Loader

1

6687636

COUPLER, FF FEMALE straight - 40 GPM

2

6688454

COUPLER, FF MALE straight - 83,5 mm (3.29'') long - 40 GPM

3

17KB1212

FITTING, HYD ELBOW

4

79K12

O RING 10

5

6667805

COUPLER, FF FEMALE straight

6

6676228

HOSE

7

17KB0608

FITTING, HYD ELBOW

8

CYLINDER See Illustration STUMP GRINDER/ B14357

9

6676232

HOSE

10

6676231

HOSE

11

6676233

HOSE

12

6676234

HOSE

13

6678037

VALVE relief/check

14

6678039

HOSE

15

6676230

HOSE

16

16KB1212

FITTING, HYD CONNECTOR

17

15KB1212

FITTING, HYD CONNECTOR

18

6688402

VALVE, CONTROL See Illustration STUMP GRINDER/ MS2232 control

19

17C624

BOLT 5

20

MOTOR See Illustration STUMP GRINDER/ MS2783 See Illustration STUMP GRINDER/ B25261

21

15KB0406

FTG HYD S CONNECTOR

22

79K6

O RING 10

23

79K8

O RING 10

24

6676715

ADAPTER

25

6678038

ELBOW

26

6686923

HOSE

27

6676227

HOSE

28

6725385

HARNESS 7-pin

29

7116174

HARNESS ACD to valve

30

6678675

CONTROLLER, ACD Was 6676514 - A

31

17C616

BOLT 5

32

55D6

NUT

33

6725383

KIT 14-pin attachment T-harness - adds a 14-pin harness to a 7-pin SG60 - W/Ref. 34-38

34

6719697

HARNESS 14-pin conversion

35

6664037

WASHER

36

6664036

NUT

37

6673680

RECEPTACLE, TWIST-LOC

38

6901005

INSTRUCTIONS

39

6686921

HOSE case drain

40

6690700

SPACER

41

15KB1212

FITTING, HYD CONNECTOR

41

15KB1216

FITTING, HYD CONNECTOR

42

79K12

O RING 10

42

79K16

O RING 10
