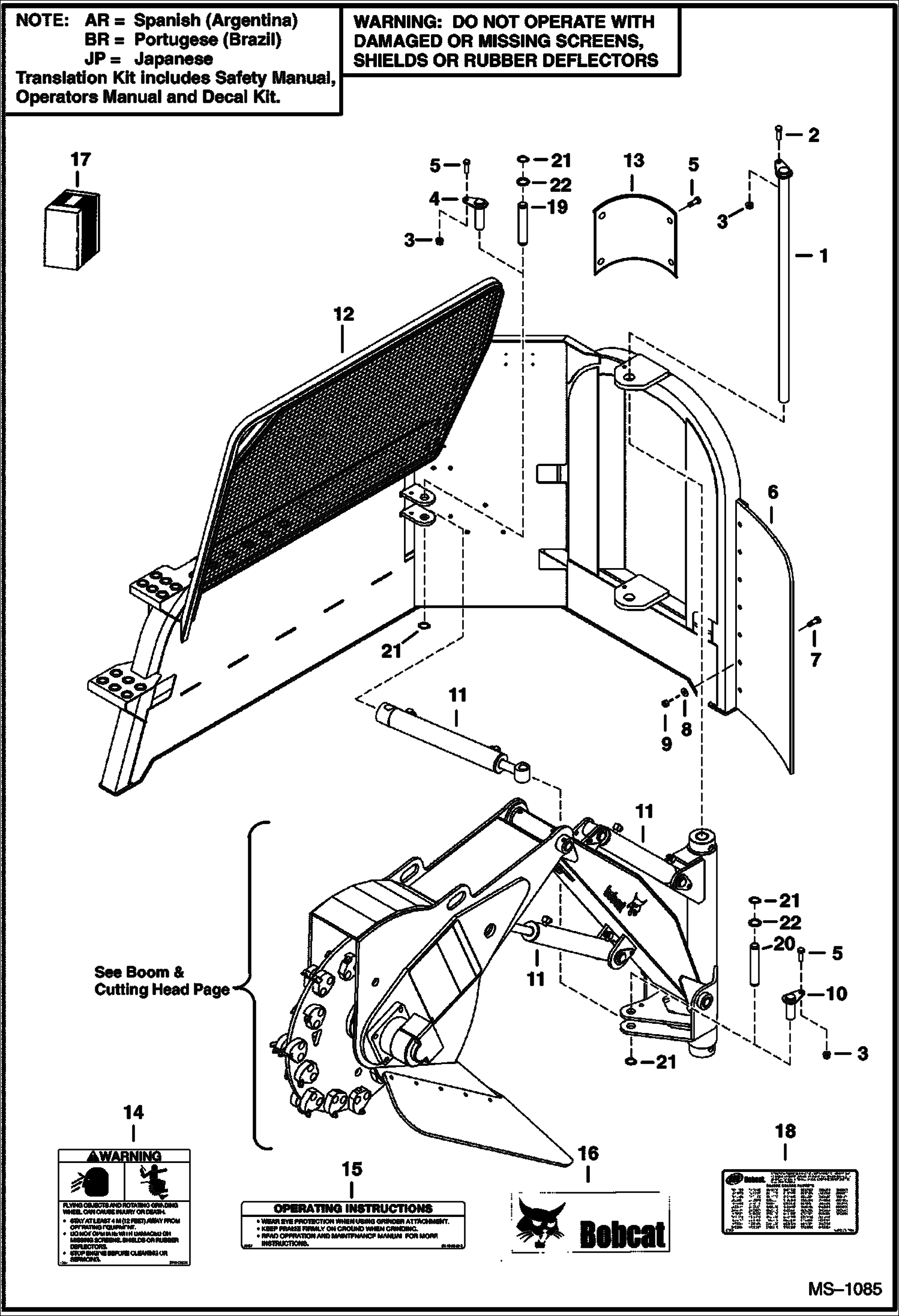

Запчасти Bobcat STUMP GRINDER STUMP GRINDER (Main Frame) (SG60 2330) (SGX60 A007) Loader

1

6676429

PIN

2

17C620

BOLT

3

55D6

NUT

4

PIN NLA - cylinder base end - Order Ref. 19, 22 & (2) of Ref. 21 - Was 6676428 - A

5

17C616

BOLT 5

6

6676533

SHIELD side

7

17C412

BOLT 5

8

6664090

WASHER

9

55D4

NUT

10

PIN NLA - cylinder rod end - Order Ref. 20, 22 & (2) of Ref. 21 - Was 6676427 - A

11

CYLINDER See Illustration STUMP GRINDER/ B14357

12

6676519

SCREEN deflector

12

6676518

ROD screen

13

6676525

COVER valve

14

6808208

DECAL,WARNING See Illustration STUMP GRINDER/ NA6240

14

7199454

DECAL, WARNING See Illustration STUMP GRINDER/ NA6240 - no-text

15

6808209

DECAL,OPERATION See Illustration STUMP GRINDER/ NA6240

15

7199453

DECAL, OPERATION See Illustration STUMP GRINDER/ NA6240 - no-text

16

7109473

DECAL, LOGO BOBCAT AND HEAD Was 6727323 - B

17

6808043AR

KIT translation - SG60

17

6808043BR

KIT translation - SG60

17

7113004AR

KIT translation - SGX60

17

7113004BR

KIT translation - SGX60

17

6808044AR

KIT decal

17

6808044BR

KIT decal

17

6808044JP

KIT decal

18

DECAL NLA - patent - Was 6557224 - C

19

6680987

PIN cylinder base end

20

6680986

PIN cylinder rod end

21

1320431

RING, SNAP

22

6573567

WASHER

23

6676524

FRAME
