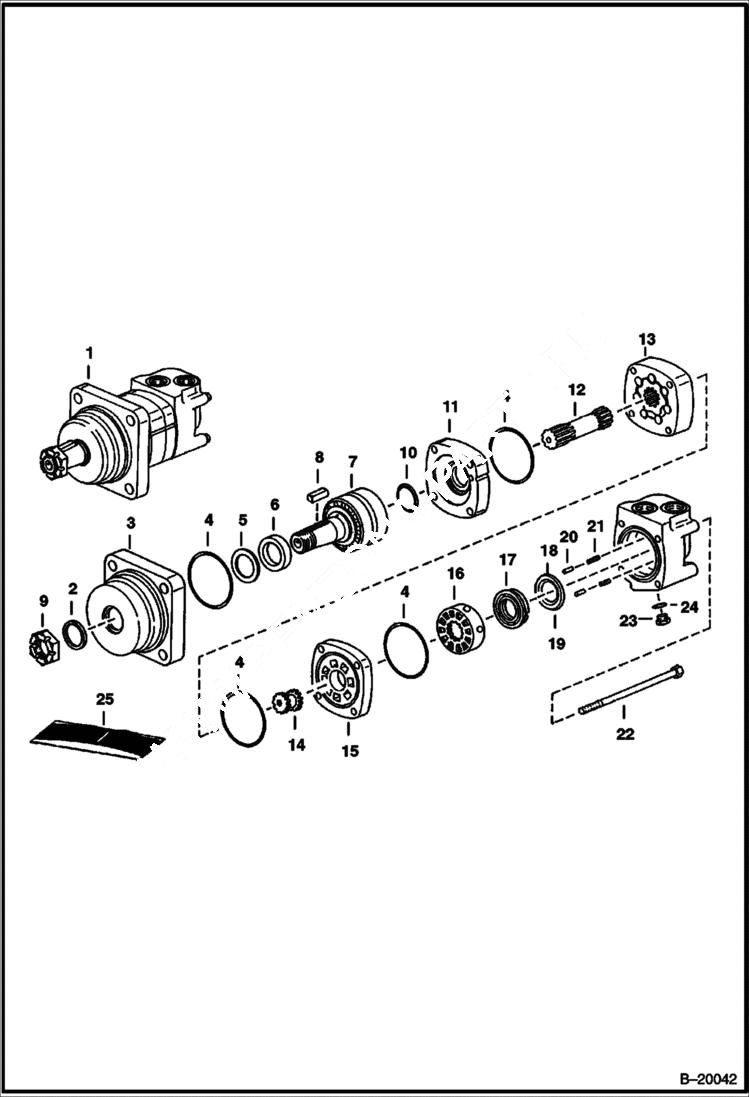

Запчасти Bobcat STUMP GRINDER STUMP GRINDER (Drive Motor) (SG50 7021) Loader

1

6665305

MOTOR Drive - W/Ref. 2 - 24

1

6667564

MOTOR Drive - W/Ref. 2 - 24

1

6667564

MOTOR Does not require case drain

2

6630029

SEAL shaft - 1.28'' ID x 1.57'' OD x .13'' wide

3

6665333

HOUSING

4

6662955

SEAL

5

6659511

BACKUP RING

6

6689096

SEAL Was 6665224 - A

7

6665334

SHAFT ASSY

8

6630089

KEY

9

5200255

NUTCASTLE

10

1992098

SEAL

11

6632286

WEAR PLATE

12

6665335

SHAFT

13

6665336

GEROLER

14

1992084

DR VALVE

15

6656368

PLATE

16

6632288

VALVE

17

6630027

BALANCE RING

18

1992100

SEAL inner

19

SEAL NLA - Order Ref. 25 seal kit - Was 6653300 - A

20

1992102

PIN

21

1992088

SPRING

22

6665337

BOLT

23

1992104

PLUG

24

O-RING NSS

25

6648973

KIT, SEAL W/Ref. 2, 4 - 6, 10, 18 & 19
