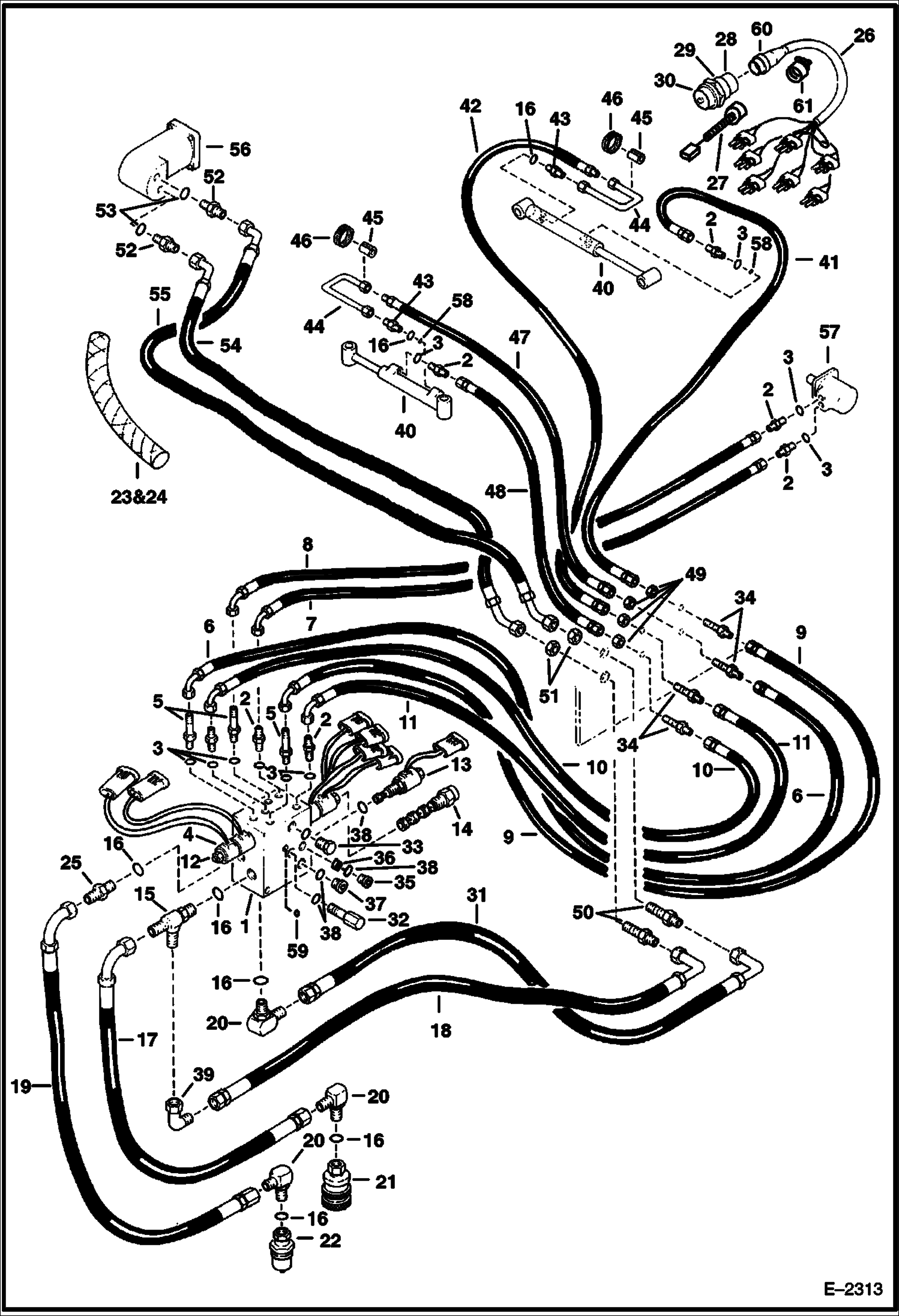

Запчасти Bobcat STUMP GRINDER STUMP GRINDER (Hydraulic Circuitry) (SG50 702100265 & Above) Loader

1

6665260

VALVE ASSY W/Ref. 3, 4, 12-14, 32, 33, 35 & 37

1

6665261

VALVE BLOCK Also Order qty. 13 of Ref. 59

2

15K5

FITTING W/Ref. 3

3

79K6

O RING 10

4

6671026

COIL Was 6661447 - A

5

16K5

FITTING

6

6665252

HOSE blue

7

HOSE NLA - brown - Order Ref. 6

8

HOSE NLA - lt. blue - Order Ref. 6

9

HOSE NLA - green - Order Ref. 6

10

6665250

HOSE orange

11

HOSE NLA - yellow - Order Ref. 10

12

6661443

VALVE

12

6661448

SEAL KIT

13

6665262

VALVE assy

13

6667626

SEAL KIT

14

6665265

CARTRIDGE

14

6667625

SEAL KIT

15

21KB1212

FITTING, HYD TEE W/Ref. 16 - Was 21K000008B - A

16

79K12

O RING 10

17

6665244

HOSE

18

6665246

HOSE

19

6665243

HOSE

20

17K8

FITTING W/Ref. 16

21

6648968

QUICK COUPLER female - poppet

21

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

22

6648970

QUICK COUPLER male - poppet

22

6674688

COUPLER, FF MALE straight - Was 6667808 - A

22

6679841

SEAL Was 6672026 - A

23

6652367

HOSE COVER 3.00'' (76.2mm)

24

6649389

HOSE COVER 1.75'' (44.5mm)

25

15K8

FITTING W/Ref. 16

26

6665297

HARNESS

27

JUMPER NLA - Was 6706551 - A

28

6664038

DUST CAP

29

6664037

WASHER

30

6664036

NUT

31

6665245

HOSE

32

6665264

RELIEF VALVE

33

6665263

CHECK VALVE

34

45K5

FITTING

35

24K5

PLUG W/Ref. 3

36

ORIFICE NLA - 1,88 mm (.074'') dia - Was 6665361 - A

37

24K7

PLUG W/Ref. 38

38

79K10

O RING 10

39

11K8

ELBOW

40

6665267

CYLINDER See Illustration STUMP GRINDER/ B14230

41

6665256

HOSE

42

6665257

HOSE

43

6665275

ADAPTER W/Orifice - .032'' (0,81mm) Dia.

44

6665273

TUBE

45

6665274

GROMMET

46

42H48

CLAMP 5

47

6578655

HOSE

48

6665258

HOSE

49

86F5

NUT

50

45K8

ADAPTOR

51

86F8

NUT 5

52

730963

CONNECTR W/Ref. 53

53

79K14

O RING 10

54

6672977

HOSE 54'' (1372mm) long - Was 6668186 - A

55

6672976

HOSE 52'' (1321mm) long - Was 6668187 - A

56

MOTOR See Illustration STUMP GRINDER/ B20042 Drive

57

MOTOR See Illustration STUMP GRINDER/ B14178 Sideshift

58

ORIFICE NSS - Order Ref. 43

59

6667572

PLUG 7mm

60

6665001

CONNECTOR, ELECTRICAL W/Ref. 61

61

6669286

CLAMP W/saddles
