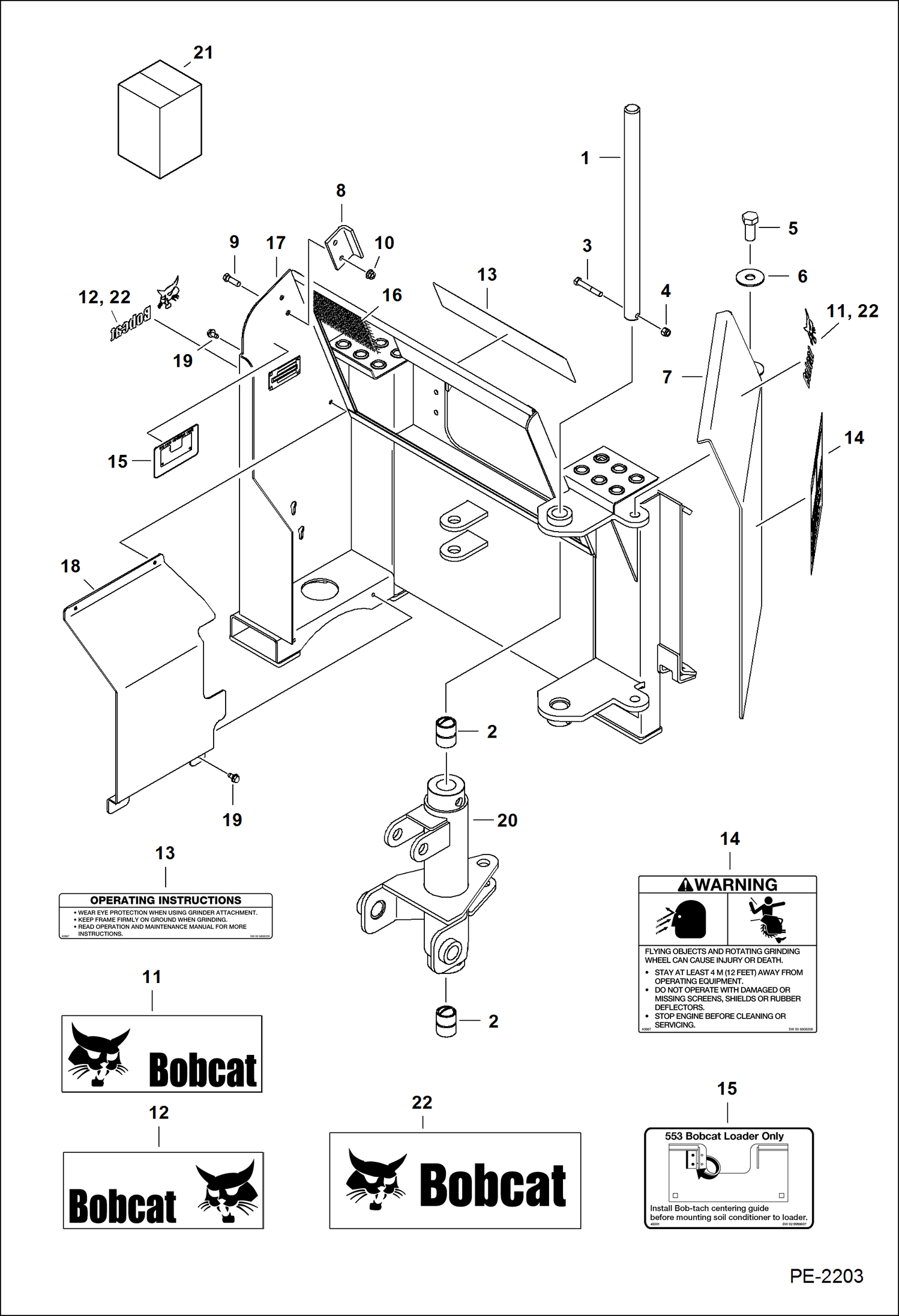

Запчасти Bobcat STUMP GRINDER STUMP GRINDER (Main Frame) (SG30 0056) Loader

1

7100649

SHAFT

2

6676531

BUSHING bronze

3

17C640

BOLT 5

4

59D6

NUT

5

17C1228

BOLT

6

7101039

WASHER rubber

7

7101032

SHIELD

8

7101037

STOP

9

17C620

BOLT

10

57D6

NUT 5

11

DECAL NLA - LH - Order Ref. 22 - Was 6727323 - B

12

DECAL NLA - RH - Order Ref. 22 - Was 6727324 - B

13

6808209

DECAL,OPERATION See Illustration STUMP GRINDER/ NA6240

13

7199453

DECAL, OPERATION See Illustration STUMP GRINDER/ NA6240 - no-text

14

6808208

DECAL,WARNING See Illustration STUMP GRINDER/ NA6240

14

7199454

DECAL, WARNING See Illustration STUMP GRINDER/ NA6240 - no-text

15

6958607

DECAL, INSTRUCTION See Illustration STUMP GRINDER/ NA6240

15

7199919

DECAL, INSTRUCTIONS See Illustration STUMP GRINDER/ NA6240 - no-text

16

6685775

SCREEN safety

17

7101029

FRAME

18

7101036

COVER valve

19

84G3110

SCREW

20

7101030

PIVOT TUBE

21

7100644AR

TRANSLATION KIT

21

7100644BR

TRANSLATION KIT

21

7100645AR

DECAL KIT

21

7100645BR

DECAL KIT

21

7100645JP

DECAL KIT

22

7109473

DECAL, LOGO BOBCAT AND HEAD Use on both sides
