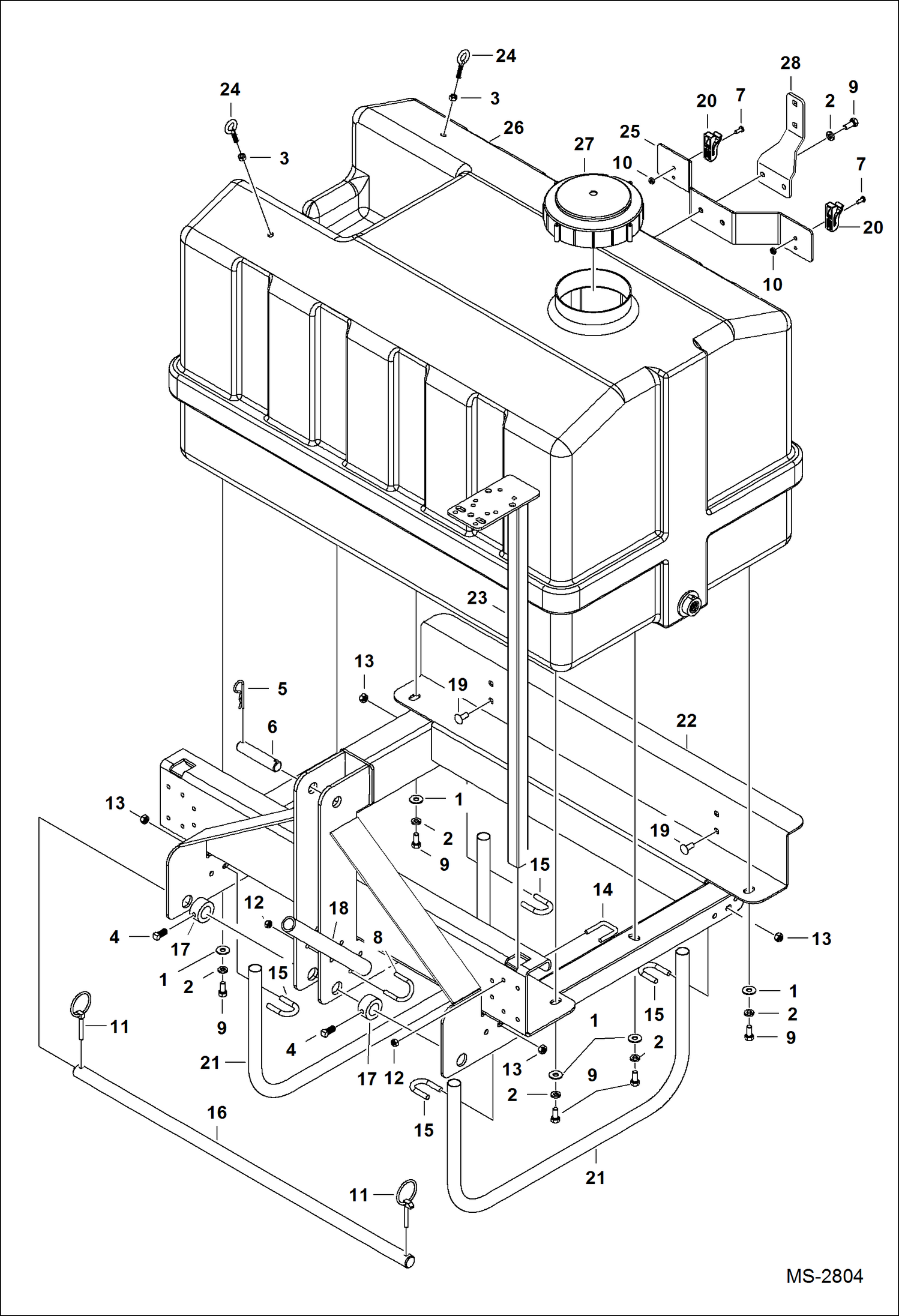

Запчасти Bobcat SPRAYER SPRAYER 3PT (Main Frame) (ABKT) Компактные тракторы

1

27E5

WASHER

2

4E5

WASHER

3

61D4

NUT 5

4

97G612

SCREW

5

1318565

COTTER PIN

6

7002765

PIN

7

87G1008

SCREW

8

6686832

U-BOLT

9

17C512

BOLT 5

10

50D10

LOCKNUT

11

7002766

PIN, LOCK

12

59D4

NUT 5

13

59D5

NUT 5

14

6685463

U-BOLT

15

7002767

U-BOLT

16

7002768

ROD

17

7002769

COLLAR, LOCKING

18

7002770

BRACKET, STORAGE PTO

19

37C512

BOLT

20

6686825

CLIP

21

7002771

MOUNT, LEG

22

7002772

FRAME, SPRAYER PTO

23

7002760

MOUNT, TANK

24

7002761

BOLT, EYE

25

7002762

MOUNT, HOSE

26

7002755

TANK, SPRAYER 60 GAL includes lid

27

6685668

CAP 5''

28

7168988

HOLDER, SMV
