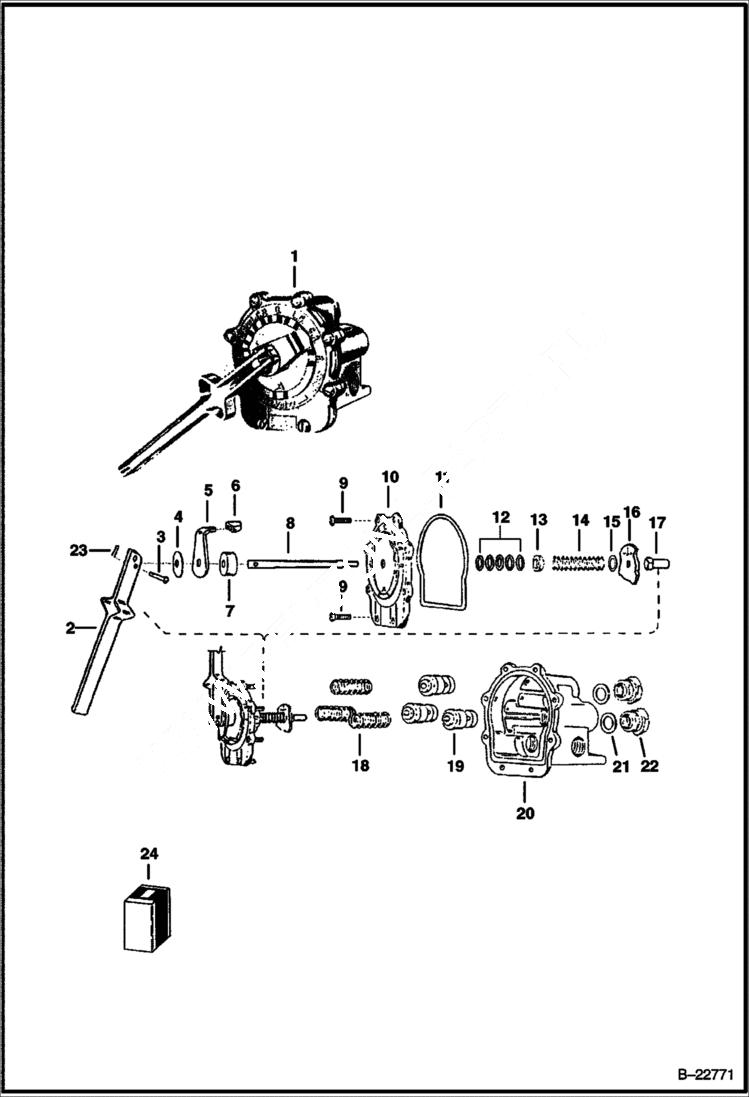

Запчасти Bobcat SPRAYER SPRAYER (Tee Valve for 21 ft Boom) (75 gal 0054) (80 gal A7F2) Loader

1

6684621

VALVE ASSY W/Ref. 2 - 23

2

HANDLE NSS

3

RIVET NSS

4

WASHER NSS

5

SELECTOR NSS

6

SHIELD NSS

7

SPACER NSS

8

STEM NSS

9

SCREW NSS

10

COVER NSS

11

GASKET NSS

12

PACKING NSS

13

GLAND NSS

14

SPRING NSS

15

WASHER NSS

16

CAM NSS

17

GUIDE NUT NSS

18

SPRING NSS

19

VALVE STEM NSS

20

HOUSING NSS

21

SEAT PLATE NSS

22

ADAPTER NSS

23

COTTER PIN NSS - 1/16'' x 1/2''

24

6685718

REPAIR KIT W/Ref. 3, 4, 6, 9, 11, 12 & 21
