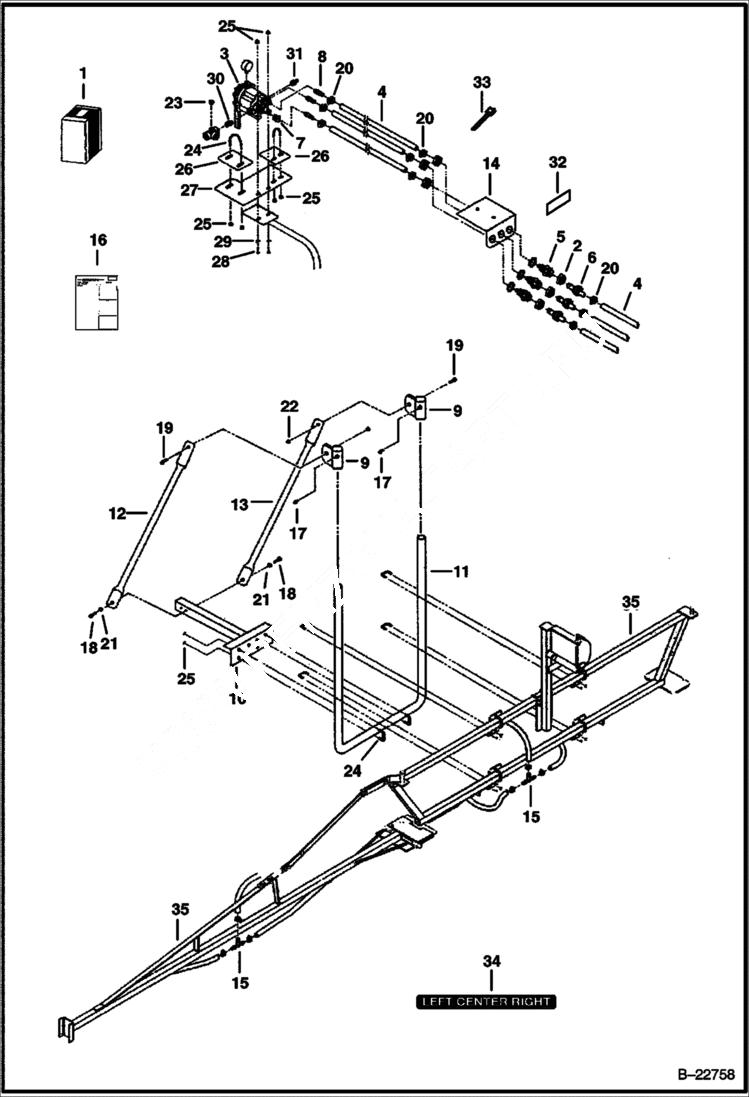

Запчасти Bobcat SPRAYER SPRAYER (21 ft Boom Kit) (75 gal 0054) (80 gal A7F2) Loader

1

KIT, FRAME SPRAYER NLA - Order components - Ref. 2-35 - Was SALES #6959268 - D

2

6684615

CAP coupler

3

6684621

VALVE ASSY See Illustration SPRAYER/ B22771

4

6684616

HOSE .50'' - bulk - sold per foot

5

6684960

COUPLER female

6

6684961

COUPLER male

7

6684965

PLUG

8

6684968

ADAPTER

9

6685003

BRACE

10

6685004

MOUNT

11

6685005

MOUNT

12

6685006

STABILIZER L.H.

13

6685007

STABILIZER R.H.

14

6685008

MOUNT

15

6685010

TEE

16

6902630

INSTRUCTIONS

17

13G620

SET SCREW Was 13G612 - A

18

17C1020

BOLT 5

19

17C616

BOLT 5

20

42HL100

CLAMP, HOSE for .50'' hose

21

4E10

WASHER

22

59D6

NUT

23

6685352

PLUG

24

6685360

U-BOLT

25

59D5

NUT 5

26

6685351

SPACER

27

6685350

MOUNT

28

17C624

BOLT 5

29

25E17

WASHER 5

30

6685349

ADAPTER

31

6685348

ADAPTER

32

6685631

DECAL label

33

6624289

STRAP, TIE

34

7104843

DECAL sprayer

35

6685009

FRAME, SPRAYER See Illustration SPRAYER/ B22759
