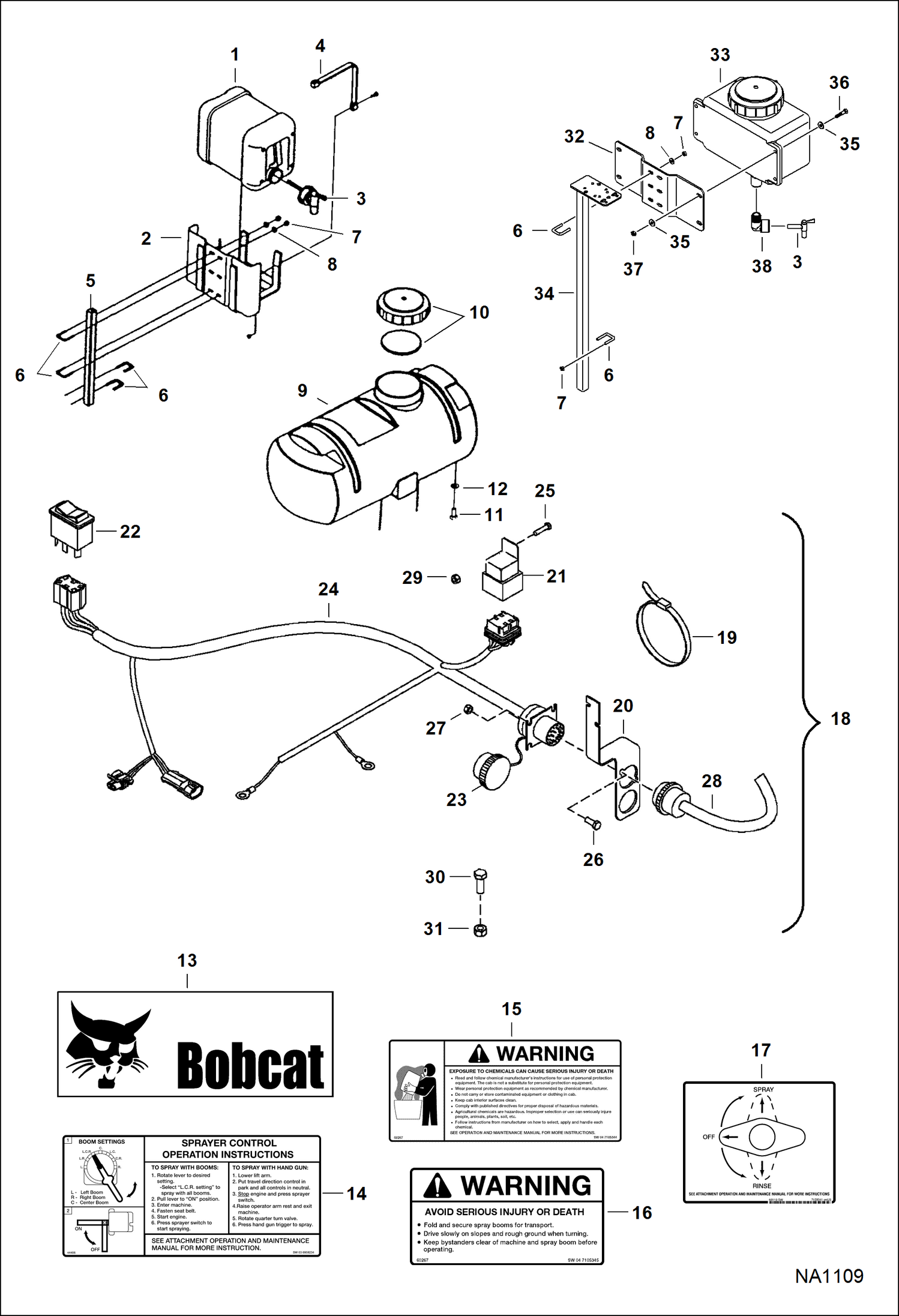

Запчасти Bobcat SPRAYER SPRAYER (Rinse Tanks, Electrical & Decals) (80 gal A7F2) Loader

1

6684999

TANK, WASH EYE 2.5 gallon

2

7003004

BRACKET, TANK

3

7003002

SPOUT, TANK

4

7002990

STRAP, TARP

5

6684981

MOUNT, TANK eye wash tank

6

6685463

U-BOLT

7

59D4

NUT 5

8

27E4

WASHER

9

6684997

TANK rinse

10

6685668

CAP

11

17C512

BOLT 5

12

4E5

WASHER

13

6676602

DECAL logo

14

6959234

DECAL instruction

15

7105344

DECAL, WARNING

16

7105345

DECAL, WARNING

17

7139041

DECAL instruction

18

HARNESS KIT SALES #7138308 - Use W/ 5600 A thru C series - Ref. 19-31

18

HARNESS KIT NLA - Use W/ 5600 D & F series - Order components - Ref. 19-31 - Was SALES #7138309 - A

19

6624289

STRAP, TIE

20

6959178

MOUNT Use W/ 5600 A thru C series

20

7135097

BRACKET Use with 5600 D & F series

21

6670312

SWITCH, MAGNETIC relay

22

6684927

SWITCH sprayer

23

6684931

COVER receptacle

24

6959237

HARNESS sprayer - Use W/ 5600 A thru C series

24

7135096

HARNESS Sprayer - used with 5600 D & F series

24

6684929

CONNECTOR, RECEPTACLE Use W/ 7135096 harness

25

17C412

BOLT 5

26

47G408

SCREW

27

50D4

NUT

28

6959259

HARNESS sprayer pump

29

59D4

NUT 5

30

29CM620

SCREW

31

51DM6

NUT

32

7028238

BRACKET, TANK

33

7028239

TANK, WASH EYE

34

7002760

MOUNT, TANK

35

29E5

WASHER

36

1C524

BOLT

37

89D5

NUT

38

7028540

FITTING, ELBOW
