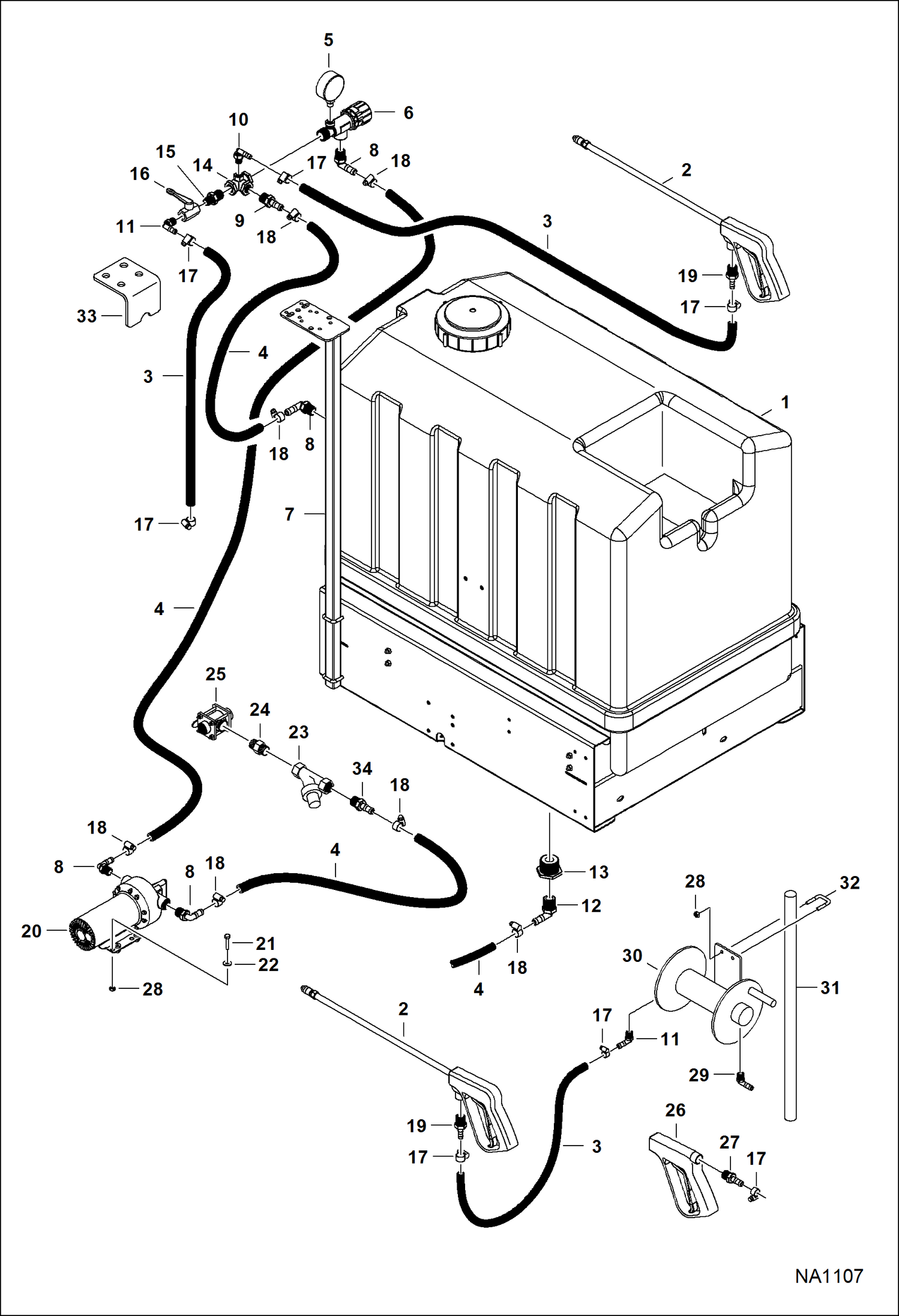

Запчасти Bobcat SPRAYER SPRAYER (Plumbing) (80 gal A7F2) Loader

1

7002756

TANK, SPRAYER 80 GAL See Illustration SPRAYER/ B23952A

2

6684618

GUN, SPRAY See Illustration SPRAYER/ B22770

3

6684620

HOSE .375'' ID - bulk-sold per foot

4

6684616

HOSE .50'' ID - bulk-sold per foot

5

6684610

GAUGE pressure

6

6684617

VALVE, RELIEF PRESSURE

6

6685704

REPAIR KIT for 6684617 relief valve - with guide pin, O-ring & spring

7

7002760

MOUNT, TANK

8

6684987

ELBOW 0.50'' MPT x 0.50'' hose barb

9

6684985

ADAPTER 0.50'' MPT x 0.50'' hose barb

10

7002764

ADAPTER, ELBOW 0.25'' MPT x .375'' hose barb

11

6684996

ADAPTER, ELBOW .375'' MPT x .375'' hose barb

12

6684964

ELBOW .750'' MPT x 0.50'' hose barb

13

6685042

ADAPTER 1.25'' MPT x .750'' MPT reducer - Was 7002763 - A

14

6686838

TEE

15

6684991

ADAPTER

16

6684976

VALVE, BRASS

17

42HL75

CLAMP, HOSE

18

42HL100

CLAMP, HOSE

19

6684984

ADAPTER

20

PUMP See Illustration SPRAYER/ B22772 5 GPM

21

17C420

BOLT

22

27E4

WASHER

23

6684608

FILTER

23

6685701

SCREEN

23

6685702

GASKET

24

6684992

ADAPTER

25

6684614

VALVE ball

26

6685043

SPRAY WAND See Illustration SPRAYER/ B22769 lawn & turf

27

6685044

ADAPTER

28

59D4

NUT 5

29

6684994

ELBOW

30

6684982

REEL, HOSE

31

7003003

MOUNT, REEL HOSE

32

6685703

U-BOLT

33

7003001

MOUNT, VALVE

34

6684986

ADAPTER
