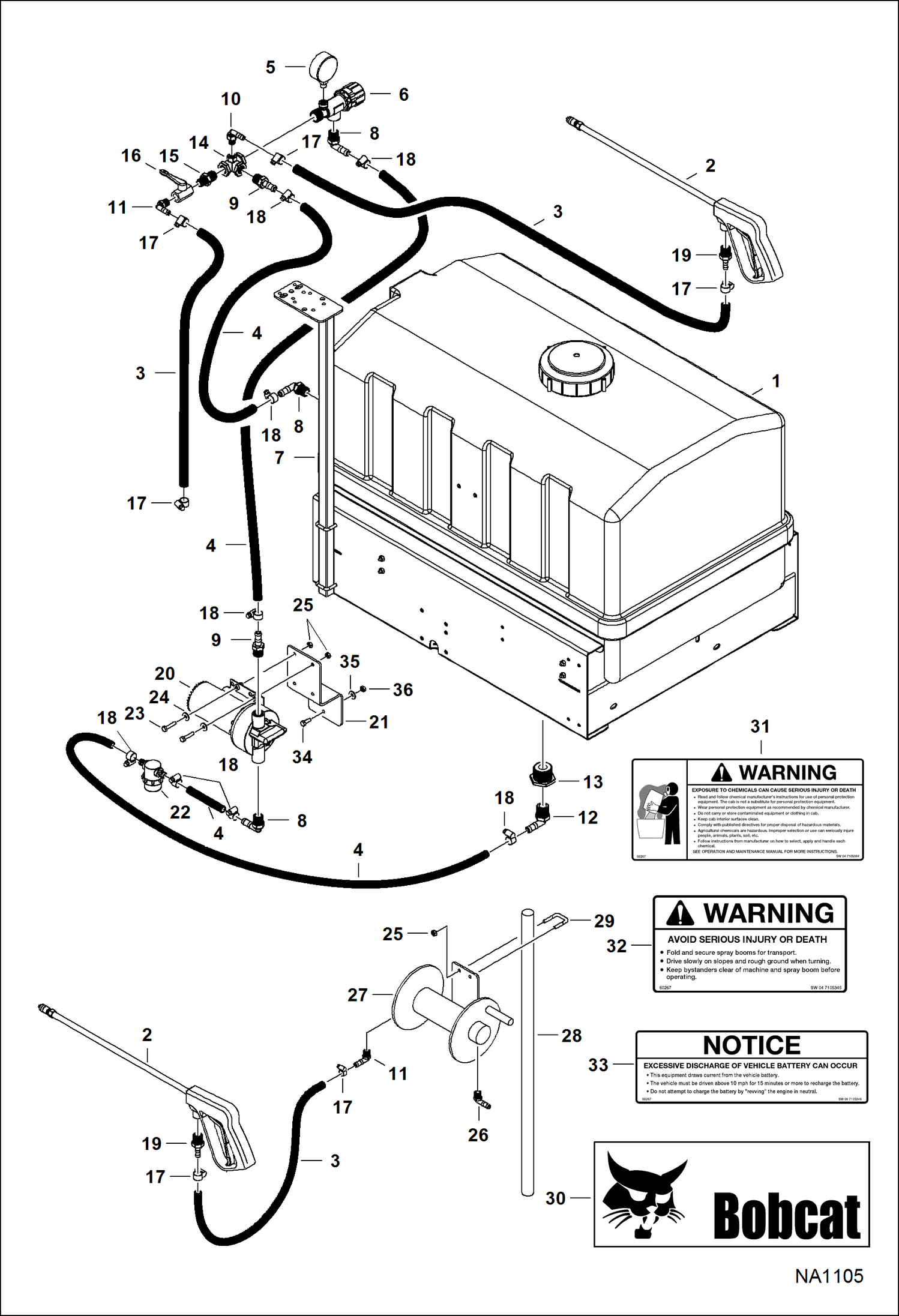

Запчасти Bobcat SPRAYER SPRAYER (Plumbing) (40 gal A7W3) Loader

1

7002754

TANK, SPRAYER 40 GAL See Illustration SPRAYER/ B23952

2

6684618

GUN, SPRAY See Illustration SPRAYER/ B22770

3

6684620

HOSE .375'' ID - bulk-sold per foot

4

6684616

HOSE 0.50'' ID - bulk-sold per foot

5

6684610

GAUGE pressure

6

6684617

VALVE, RELIEF PRESSURE

6

6685704

REPAIR KIT for 6684617 relief valve - with guide pin, O-ring & spring

7

7002760

MOUNT, TANK

8

6684987

ELBOW 0.50'' MPT x 0.50'' hose barb

9

6684985

ADAPTER 0.50'' MPT x 0.50'' hose barb

10

7002764

ADAPTER, ELBOW 0.25'' MPT x .375'' hose barb

11

6684996

ADAPTER, ELBOW .375'' MPT x .375'' hose barb

12

6684964

ELBOW .750'' MPT x 0.50'' hose barb

13

6685042

ADAPTER 1.25'' MPT x .750'' MPT reducer - Was 7002763 - A

14

6686838

TEE

15

6684991

ADAPTER

16

6684976

VALVE, BRASS

17

42HL75

CLAMP, HOSE

18

42HL100

CLAMP, HOSE

19

6684984

ADAPTER

20

PUMP See Illustration SPRAYER/ B22772 5 GPM

21

7002758

MOUNT, PUMP

22

6684967

STRAINER

23

17C420

BOLT

24

27E4

WASHER

25

59D4

NUT 5

26

6684994

ELBOW

27

6684982

REEL, HOSE

28

7003003

MOUNT, REEL HOSE

29

6685703

U-BOLT

30

6676602

DECAL logo

31

7105344

DECAL, WARNING

32

7105345

DECAL, WARNING

33

7105346

DECAL, WARNING

34

17C616

BOLT 5

35

27E6

WASHER 5

36

59D6

NUT
