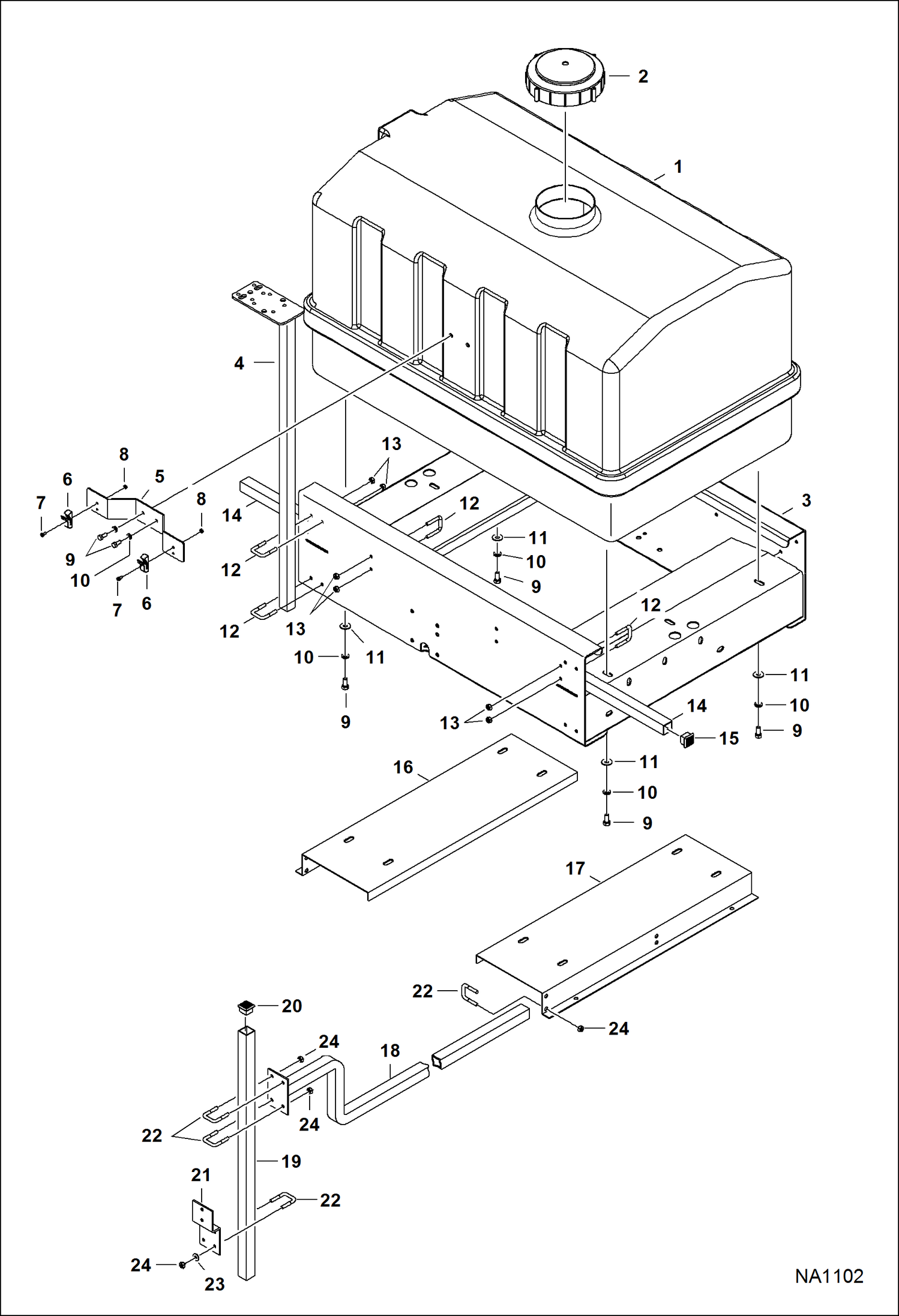

Запчасти Bobcat SPRAYER SPRAYER (Main Frame) (40 gal A7W3) Loader

1

7002754

TANK, SPRAYER 40 GAL See Illustration SPRAYER/ B23952

2

6685668

CAP

3

7002759

FRAME, SPRAYER

4

7002760

MOUNT, TANK

5

7002762

MOUNT, HOSE

6

6686825

CLIP

7

87G1008

SCREW

8

50D10

LOCKNUT

9

17C512

BOLT 5

10

4E5

WASHER lock

11

27E5

WASHER flat

12

6685463

U-BOLT

13

59D4

NUT 5

14

7002997

TUBE

15

7002999

PLUG

16

7002993

CHANNEL

17

7002994

CHANNEL

18

6686826

MOUNT

19

6686828

MOUNT

20

6686822

CAP, END

21

6685683

PLATE

22

6685672

U-BOLT

23

25E15

WASHER

24

59D5

NUT 5
