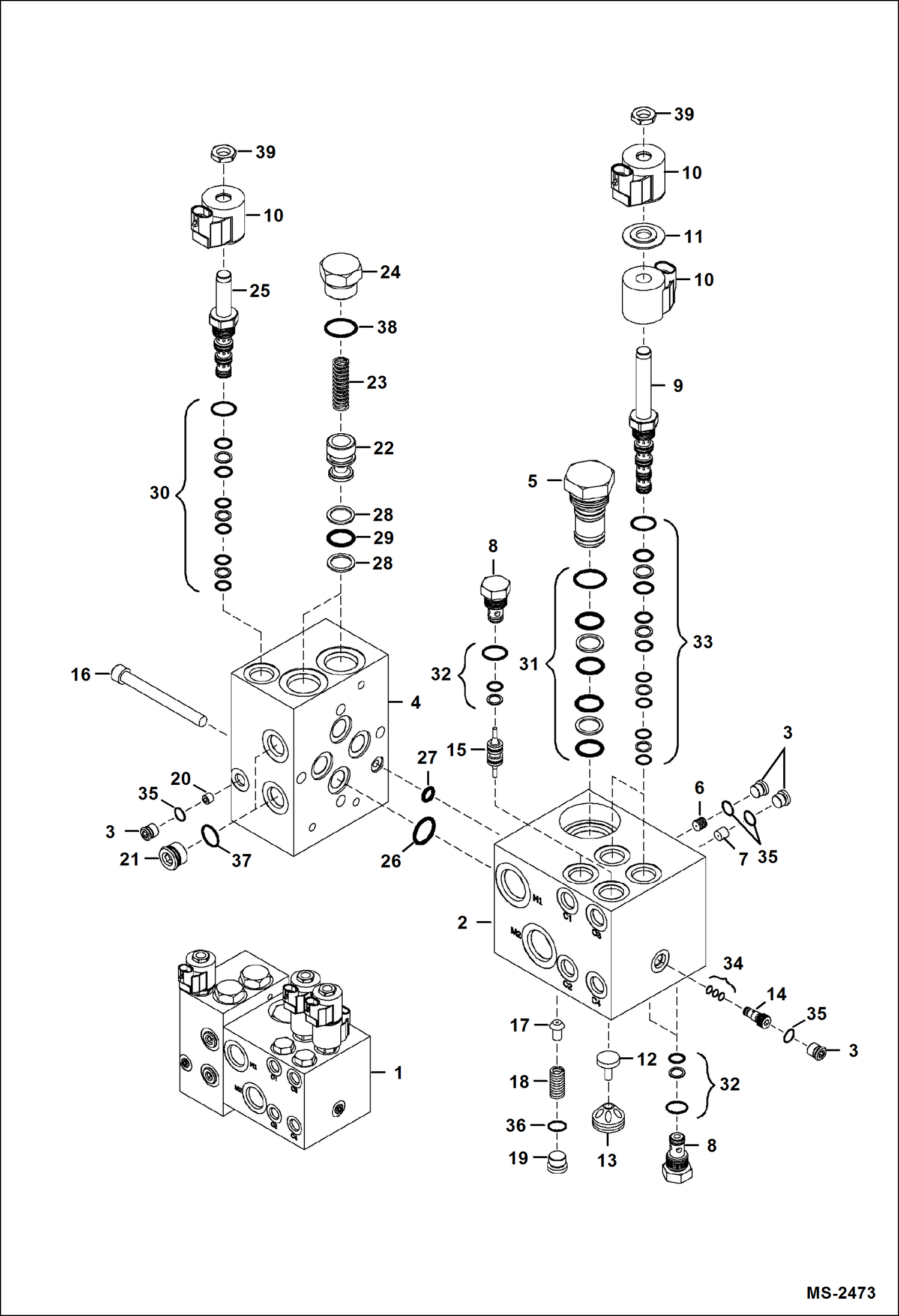

Запчасти Bobcat SOIL CONDITIONER CONTROL VALVE (60 A86R) (72 S6TE) (72 A6TD) (84 A6TG) (84 A6TH) Loader

1

6692411

VALVE W/Ref. 2-39

2

BLOCK NSS - Order Ref. 1

3

6665719

PLUG W/Ref. 35

4

BLOCK NSS - Order Ref. 1

5

6674442

VALVE logic

6

6693480

ORFICE 0.055

7

6690586

ORIFICE 0.046

8

6669728

VALVE, CHECK

9

6693479

VALVE solenoid

10

6688356

COIL

11

6689389

SPACER

12

6686520

POPPET

13

6686519

RETAINER

14

6669617

SHUTTLE VALVE shuttle

15

6673990

PISTON, VALVE double acting sealed - Was 6664028 - A

16

73G656

SCREW

17

6685202

CHECK VALVE

18

6685203

SPRING

19

6669620

PLUG W/Ref. 36

20

6673977

ORIFICE

21

6674548

PLUG

22

6693885

VALVE

23

6693884

SPRING

24

6693883

PLUG

25

6693882

VALVE solenoid

26

6693881

O-RING

27

6693879

O-RING

28

6693880

RING backup

29

6693878

O-RING

30

6672756

KIT, SEAL

31

6697867

SEAL KIT

32

6672515

KIT, SEAL

33

6697866

SEAL KIT

34

6669623

SEAL KIT

35

O RING 10 NSS - Order Ref. 7 - Was 79K4 - B,D

36

O RING 10 NSS - Order Ref. 19 - Was 79K6 - B,D

37

79K8

O RING 10

38

79K12

O RING 10

39

6668820

NUT
