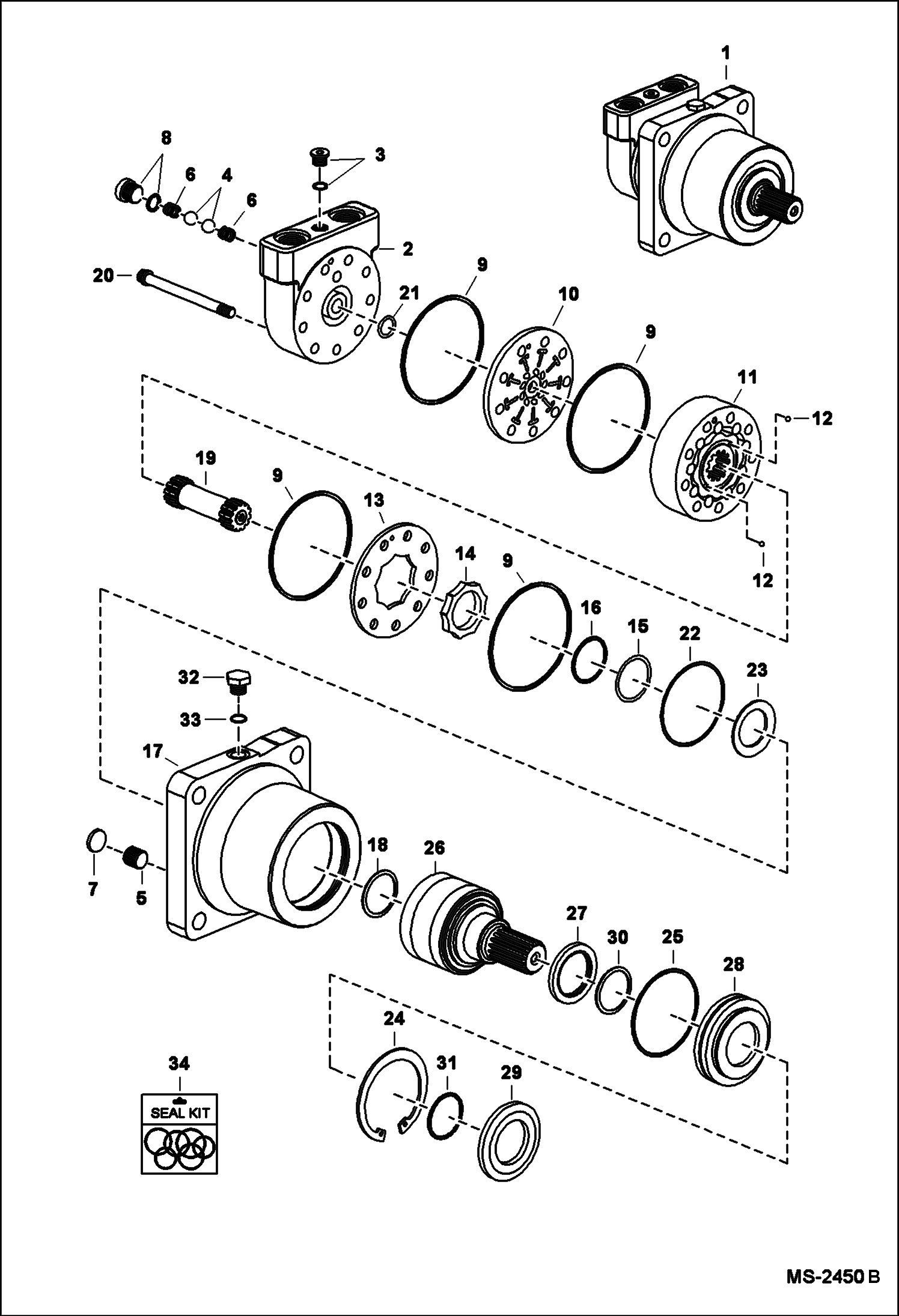

Запчасти Bobcat SOIL CONDITIONER MOTOR (84 A6TH) Loader

1

7224862

MOTOR, HYD Model 180-0105-005

2

6689697

HOUSING, MOTOR

3

6668079

PLUG, MOTOR

4

6664428

BALL, STEEL

5

PLUG, MOTOR NLA - Was 6850005 - A

6

6513533

SPRING

7

6850004

SCREEN

8

6668089

PLUG, MOTOR

9

6678000

SEAL

10

6689698

PLATE

11

7028241

GEROLER

12

6651542

BALL, STEEL

13

6689700

PLATE balancing - outer

14

6678004

PLATE balancing - inner

15

6682860

O-RING

16

6678006

RING, BACK-UP

17

7028242

HOUSING, BEARING

18

6664815

SEAL, OIL

19

7028243

SHAFT

20

6693607

BOLT

21

6669452

O-RING

22

6682897

SEAL

23

6685069

RING,BACK-UP belleville disc

24

6691337

RING, RETAINING

25

6513524

O'RING

26

7024948

SHAFT, OUTPUT

27

6665556

SEAL shaft

28

7024949

RETAINER, BEARING front

29

6693532

GUARD, SEAL slinger seal - 1.5'' ID x 3'' OD

30

6665557

RING, BACK-UP

31

6664810

SEAL dust

32

47K5

PLUG

33

79K6

O RING 10

34

7021021

KIT, SEAL Ref. 9, 15, 16, 18, 21, 22, 25, 27, 29, 30, 31 & 33
