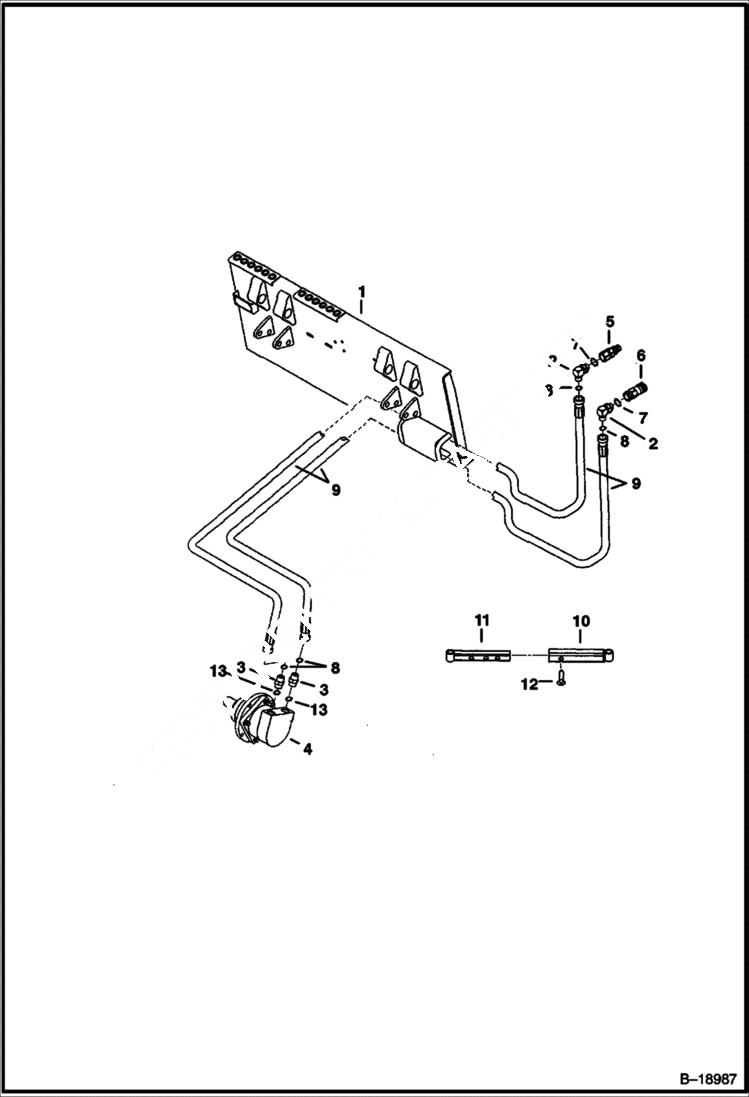

Запчасти Bobcat SOIL CONDITIONER HYDRAULICS (72 651300101 - 01555) Loader

1

6905722

FRAME Bob-Tach

2

17KB1212

FITTING, HYD ELBOW Was 17KN00008B - A

3

15KB1212

FITTING, HYD CONNECTOR W/1.06'' motor ports - Was 15KN00008B - A

3

6800566

ADAPTER W/1.31'' motor ports

4

CARRIER ASSY See Illustration MOTOR CARRIER ASSY/ B18990

5

6674688

COUPLER, FF MALE straight

6

6672960

COUPLER, FF FEMALE straight

7

99K12

O RING

8

97K12

O'RING flared end

9

6906526

HOSE

10

6906520

BAR angle adjust

11

6906522

BAR angle adjust

12

6906524

PIN

13

99K12

O RING W/1.06'' motor ports

13

99K16

O-RING W/1.31'' motor ports
