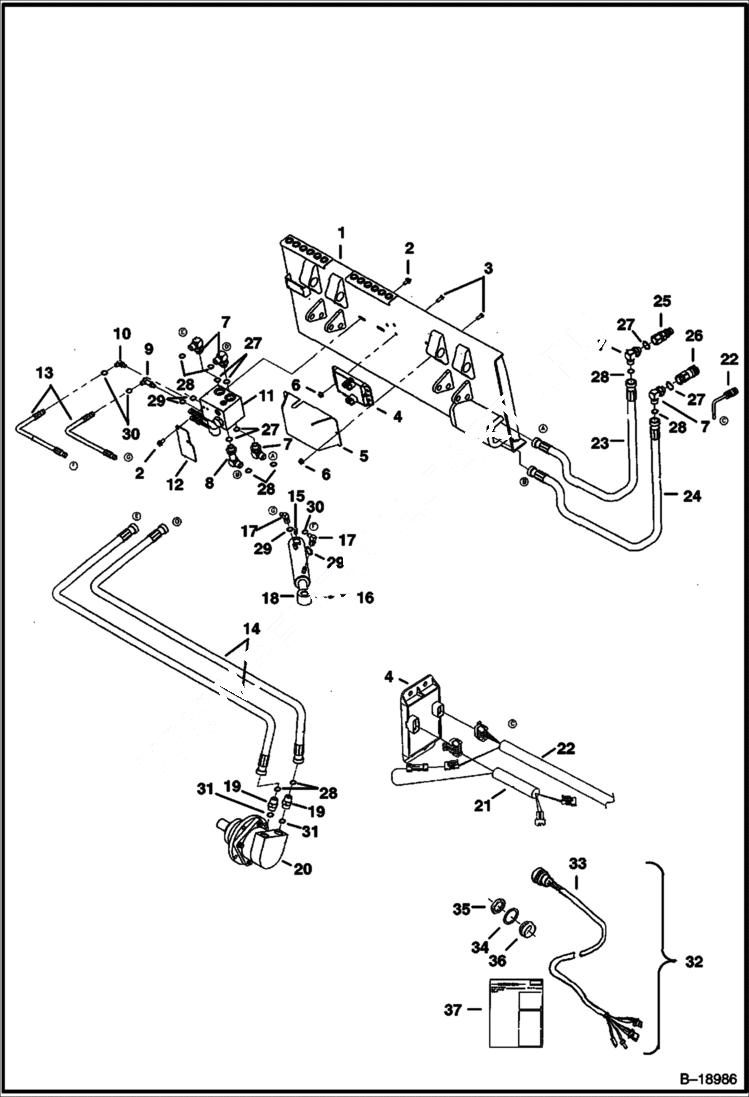

Запчасти Bobcat SOIL CONDITIONER HYDRAULICS (72 2320) (84 6514) Loader

1

6905722

FRAME Bob-Tach

2

35C612

BOLT

3

25G616

SCREW

4

6678677

CONTROLLER, ACD BASE Was 6674944 - A

5

6905670

COVER

6

55D6

NUT

7

17KB1212

FITTING, HYD ELBOW Was 17KN00008B - A

8

6716443

ELBOW

9

6812815

FITTING Was 6715188 - A

10

17KB0606

FITTING Was 17KN00005B - A

11

6676592

VALVE, CONTROL See Illustration CONTROL VALVE/ B18993

12

6906267

COVER

13

HOSE NLA - straight fittings - Order 7192242 hose & discard Ref. 17 - Was 6906238 - A

13

7192242

HOSE, HYD 90 degree & straight fitting

14

6906237

HOSE 72''

14

7181268

HOSE, HYD 84'' - Was 6906236 - A

15

12H25

FITTING

16

10H25

FITTING, GREASE 5

17

11K5

FITTING Was 11KN00005B - A

18

6809501

CYLINDER See Illustration CYLINDER - ANGLE CONTROL/ PE1330

19

15KB1212

FITTING, HYD CONNECTOR W/ 1.06'' motor ports - Was 15KN00008B - A

19

6800566

ADAPTER W/ 1.31'' motor ports

19

15KB1212

FITTING, HYD CONNECTOR W/ 1.06'' motor ports - Was 15K000008B - A

19

6800566

ADAPTER W/ 1.31'' motor parts

20

CARRIER ASSY See Illustration MOTOR CARRIER ASSY/ B18990

21

6725232

HARNESS ACD to valve

22

6719853

HARNESS 7-pin

23

7181268

HOSE, HYD Was 6906318 - A

24

7181269

HOSE, HYD Was 6906236 - A

25

6674688

COUPLER, FF MALE straight

26

6672960

COUPLER, FF FEMALE straight

27

99K12

O RING

28

97K12

O'RING flared end

29

99K6

O RING for tapered boss face

29

79K6

O RING 10 for flat boss face

30

97K6

O RING

31

99K12

O RING W/1.06'' motor ports

31

99K16

O-RING W/1.31'' motor ports

32

6725381

KIT 14-pin harness conversion - converts 7-pin soil conditioner to be used with 14-pin loader - W/Ref. 33 - 37

33

6725352

HARNESS 14-pin conversion

34

6664037

WASHER

35

6664036

NUT

36

6673680

RECEPTACLE, TWIST-LOC

37

6901005

INSTRUCTIONS
