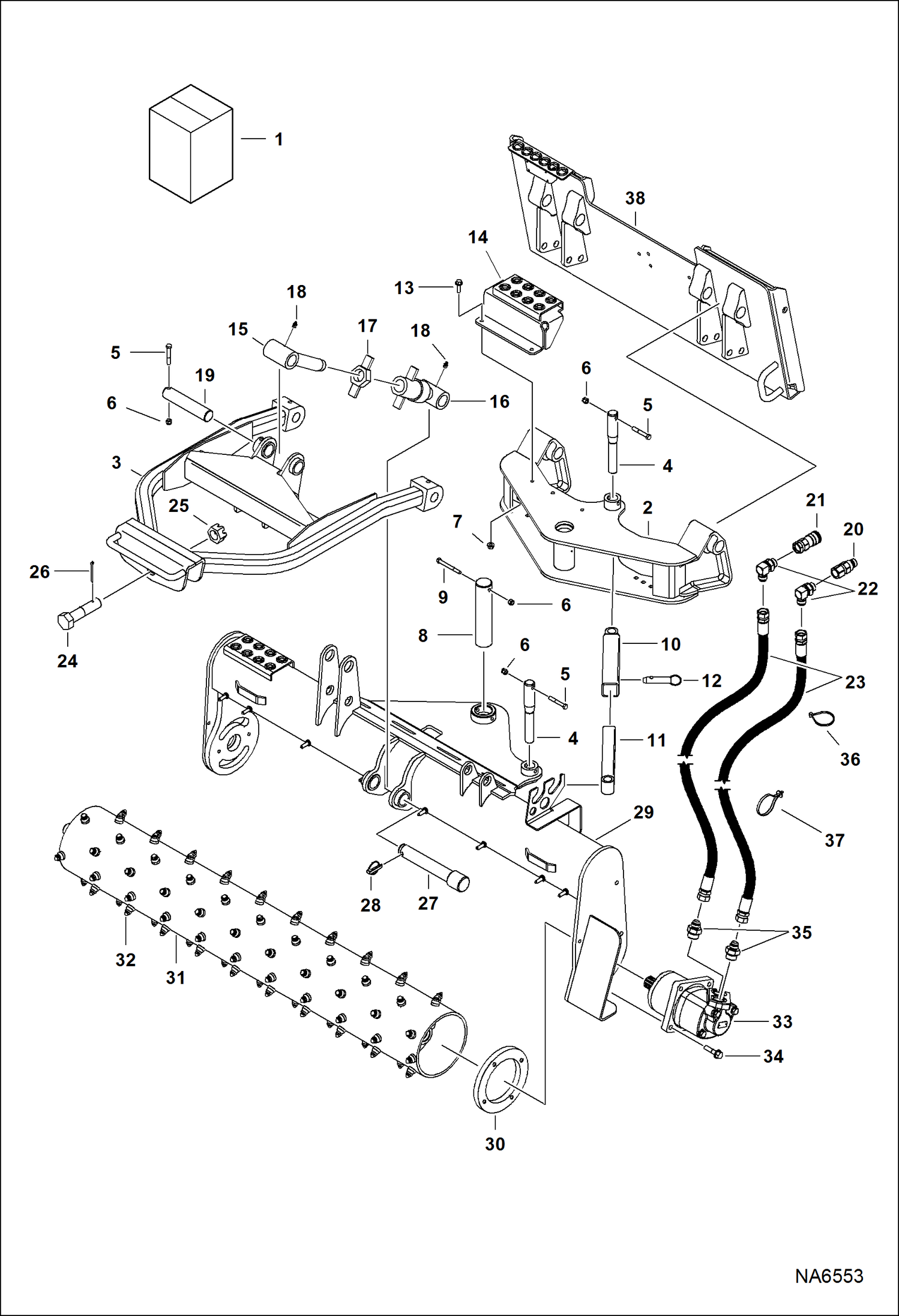

Запчасти Bobcat SOIL CONDITIONER MAIN FRAME - NON-HYD (60 A5PS00378 & Above) (72 651302050 & Above) Loader

1

SOIL CONDITIONER SALES #7132966 - 60''

1

SOIL CONDITIONER SALES #6906513 - 72''

2

6906135

PIVOT, WEDGE

3

7125325

ARM

4

7102382

PIN

5

17C640

BOLT 5

6

59D6

NUT

7

89D6

NUT

8

6714163

PIN

9

17C656

BOLT

10

6906520

BAR

11

6906522

BAR

12

6906524

PIN

13

31C620

BOLT

14

7192486

SHIELD, VALVE

15

6958237

ROD

16

6958238

LINK adjusting

17

6906352

NUT

18

10H25

FITTING, GREASE 5

19

6906591

PIN

20

6688454

COUPLER, FF MALE straight

21

6687636

COUPLER, FF FEMALE straight

22

15KB1212

FITTING, HYD CONNECTOR

23

7131659

HOSE 60''

23

6906526

HOSE 72''

24

6906130

BOLT

25

4D20

NUT

26

1F640

PIN cotter

27

6906873

PIN

28

6560382

PIN, LOCK

29

7131664

FRAME 60''

29

7145607

FRAME 72''

30

7139692

PLATE

31

7131665

TUBE 60''

31

7136905

TUBE 72''

32

TOOTH, CARBIDE NLA - Order 7223896 tooth - (101) for 60'', (121) for 72'' - Was 6676731 - A

32

7223896

TOOTH, CARBIDE (101) for 60'', (121) for 72''

33

6689967

MOTOR See Illustration MOTOR/ MS2451

34

31C832

BOLT

35

15KB1216

FITTING, HYD CONNECTOR

36

6624289

STRAP, TIE

37

6675734

STRAP, TIE

38

7194157

FRAME bob-tach
