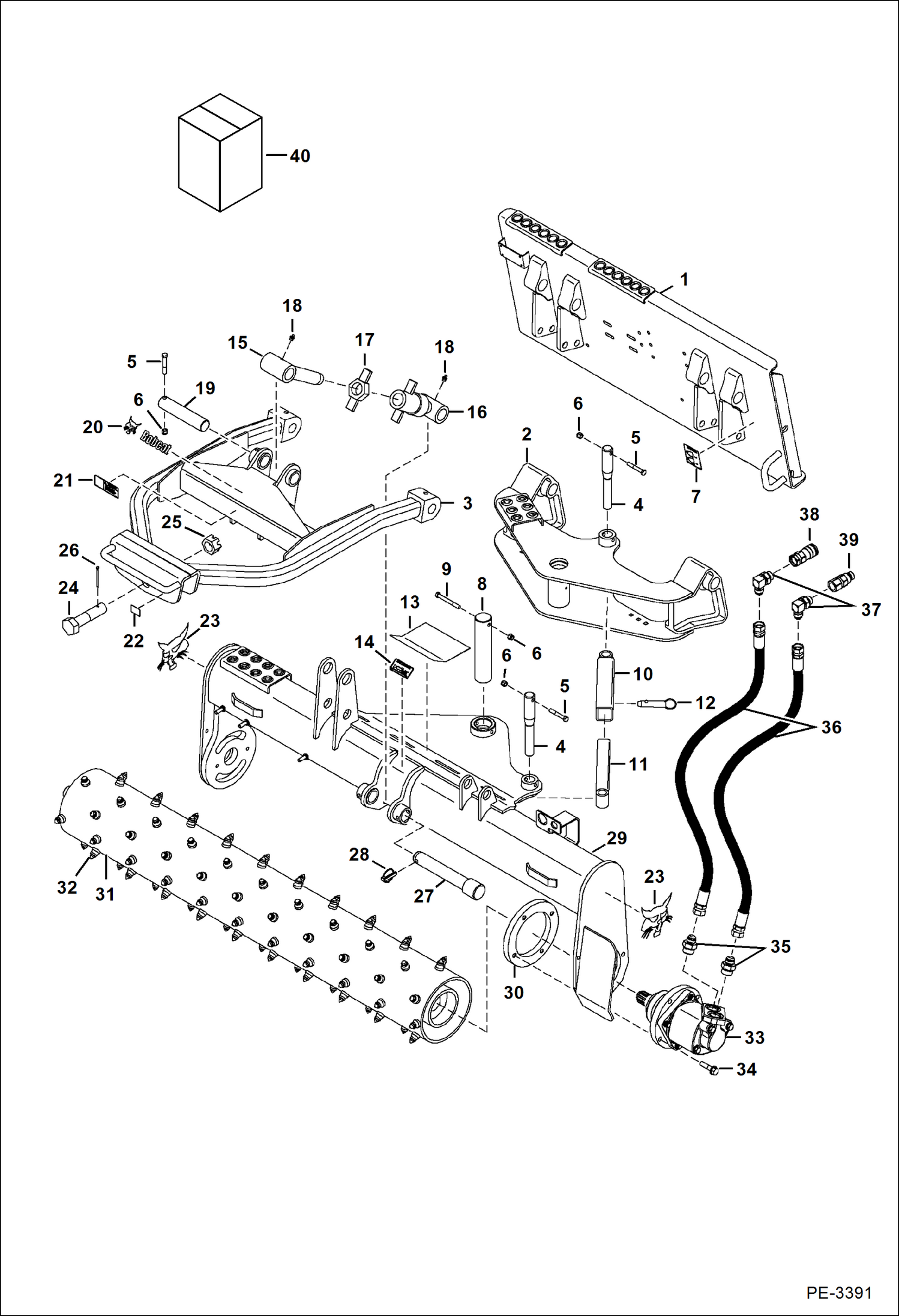

Запчасти Bobcat SOIL CONDITIONER MAIN FRAME - NON-HYD (60 A5PS00101 - 00377) (72 651301556 - 02049) Loader
№
Артикул
Название
Примечание
Количество
1
6905722
FRAME Bob-Tach
2
PIVOT, WEDGE SEE NA6553 - NLA - W/step - Order 6906135 pivot - Was 6906135 - A
3
7125325
ARM
4
7102382
PIN
6
59D6
NUT
7
6906490
DECAL, LOCK HEIGHT See Illustration DECALS/ NA5838
7
7199924
DECAL, LOCK HEIGHT See Illustration DECALS/ NA5838 - no-text
8
6714163
PIN
10
6906520
BAR
11
6906522
BAR
12
6906524
PIN
13
6708822
DECAL, WARNING See Illustration DECALS/ NA5838
13
7130144
DECAL, WARNING See Illustration DECALS/ NA5838 - no-text
14
6906489
DECAL, ADJUST HEIGHT See Illustration DECALS/ NA5838
14
7199923
DECAL, ADJUST HEIGHT See Illustration DECALS/ NA5838 - no-text
15
6958237
ROD
16
6958238
LINK adjusting
17
6906352
NUT
19
6906591
PIN
20
7109473
DECAL, LOGO BOBCAT AND HEAD
21
6906488
DECAL, WARNING See Illustration DECALS/ NA5838 - lift
21
7199922
DECAL, WARNING See Illustration DECALS/ NA5838 - no-text - lift
22
6705340
DECAL, GREASE
23
6700191
DECAL, LOGO BOBCAT HEAD
24
6906130
BOLT
25
4D20
NUT
26
1F640
PIN cotter
27
6906873
PIN
28
6560382
PIN, LOCK
29
FRAME SEE NA6553 - NLA - 60'' - Order 7131664 frame - Was 7131664 - A
29
FRAME SEE NA6553 - NLA - 72'' - Order 7145607 frame - Was 7145607 - A
30
7139692
PLATE
31
7131665
TUBE 60''
31
7136905
TUBE 72''
32
TOOTH, CARBIDE NLA - Order 7223896 tooth - (101) for 60'', (121) for 72'', (141) for 84'' - Was 6676731 - A
32
7223896
TOOTH, CARBIDE (101) for 60'', (121) for 72'', (141) for 84''
33
MOTOR See Illustration MOTOR/ MS2451
34
31C832
BOLT
35
15KB1216
FITTING, HYD CONNECTOR
36
7131659
HOSE 60''
36
6906526
HOSE 72''
40
7170785AR
KIT, TRANSLATION Spanish (Argentina)
40
7170785BR
KIT, TRANSLATION Portugese (Brazil)
40
7170787AR
KIT, DECAL Spanish (Argentina)
40
7170787BR
KIT, DECAL Portugese (Brazil)
40
7170787JP
KIT, DECAL Japanese
Выбрано товаров: 52
