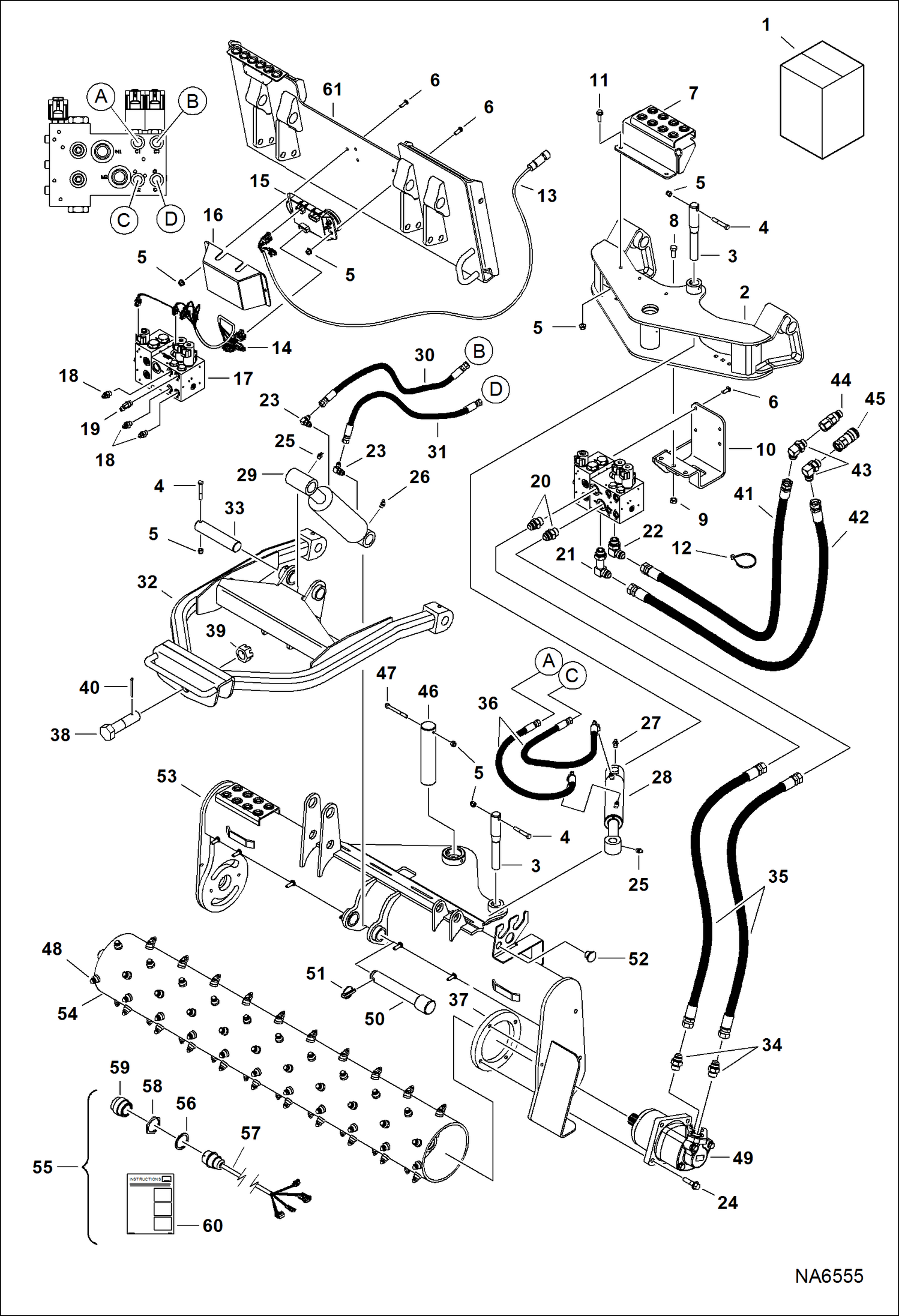

Запчасти Bobcat SOIL CONDITIONER MAIN FRAME - HYD (60 A86R00429 & Above) (72 S6TE01005 & Above, A6TD00555 & Above) (84 A6TG00735 & Above) Loader

1

SOIL CONDITIONER SALES #7140848 - 60''

1

SOIL CONDITIONER SALES #7135945 - 72''

1

SOIL CONDITIONER SALES #7135944 - 72''

1

SOIL CONDITIONER SALES #7135946 - 84''

2

6906135

PIVOT, WEDGE

3

7102382

PIN

4

17C640

BOLT 5

5

89D6

NUT

6

25G616

SCREW

7

7192486

SHIELD, VALVE

8

17C820

BOLT

9

85D8

NUT, 5

10

7144812

MOUNT

11

31C620

BOLT

12

6624289

STRAP, TIE

13

6725385

HARNESS 7-pin

14

7154200

HARNESS ACD to valve - Used W/standard flow

15

6678675

CONTROLLER, ACD

16

6905670

COVER

17

6692411

VALVE See Illustration CONTROL VALVE/ MS2473 - control

18

15KB0606

FITTING, HYD CONNECTOR

19

18KB0606

FITTING, HYD ELBOW

20

15KB1212

FITTING, HYD CONNECTOR

21

6716443

ELBOW

22

17KB1212

FITTING, HYD ELBOW

23

17KB0606

FITTING

24

31C832

BOLT

25

10H25

FITTING, GREASE 5

26

11H15

GREASE FITTING

27

12H15

FITTING, GREASE 5

28

6809501

CYLINDER See Illustration CYLINDER - ANGLE CONTROL/ PE1330 - angle control

29

6678153

CYLINDER See Illustration CYLINDER - DEPTH CONTROL/ TS1702C - depth control

30

6906659

HOSE, HYD

31

6906660

HOSE, HYD

32

7125325

ARM

33

6906591

PIN

34

15KB1216

FITTING, HYD CONNECTOR

35

7144802

HOSE 60''

35

7144803

HOSE 72''

35

7144804

HOSE 84''

36

7192242

HOSE, HYD

37

7139692

PLATE

38

6906130

BOLT

39

4D20

NUT

40

1F640

PIN

41

7181268

HOSE, HYD

42

7181269

HOSE, HYD

43

17KB1212

FITTING, HYD ELBOW

44

6688454

COUPLER, FF MALE straight

45

6687636

COUPLER, FF FEMALE straight

46

6714163

PIN

47

17C656

BOLT

48

TOOTH, CARBIDE NLA - Order 7223896 tooth - (101) for 60'', (121) for 72'', (141) for 84'' - Was 6676731 - A

48

7223896

TOOTH, CARBIDE (101) for 60'', (121) for 72'', (141) for 84''

49

6689967

MOTOR See Illustration MOTOR/ MS2451

49

6689968

MOTOR See Illustration MOTOR/ MS2451A

50

6906873

PIN

51

6560382

PIN, LOCK

52

6675128

CAP

53

7131664

FRAME 60''

53

7145607

FRAME 72''

53

7145608

FRAME 84''

54

7131665

TUBE 60''

54

7136905

TUBE 72''

54

7137276

TUBE 84''

55

7155357

KIT, HARNESS 14-PIN converts 7-pin soil conditioner to be used W/ 14-pin loader - Ref. 56-60

56

6673680

RECEPTACLE, TWIST-LOC

57

7240058

HARNESS, 14 PIN TEE Was 7150446 - A

58

6664037

WASHER

59

6664036

NUT

60

6901005

INSTRUCTIONS

61

7194157

FRAME bob-tach
