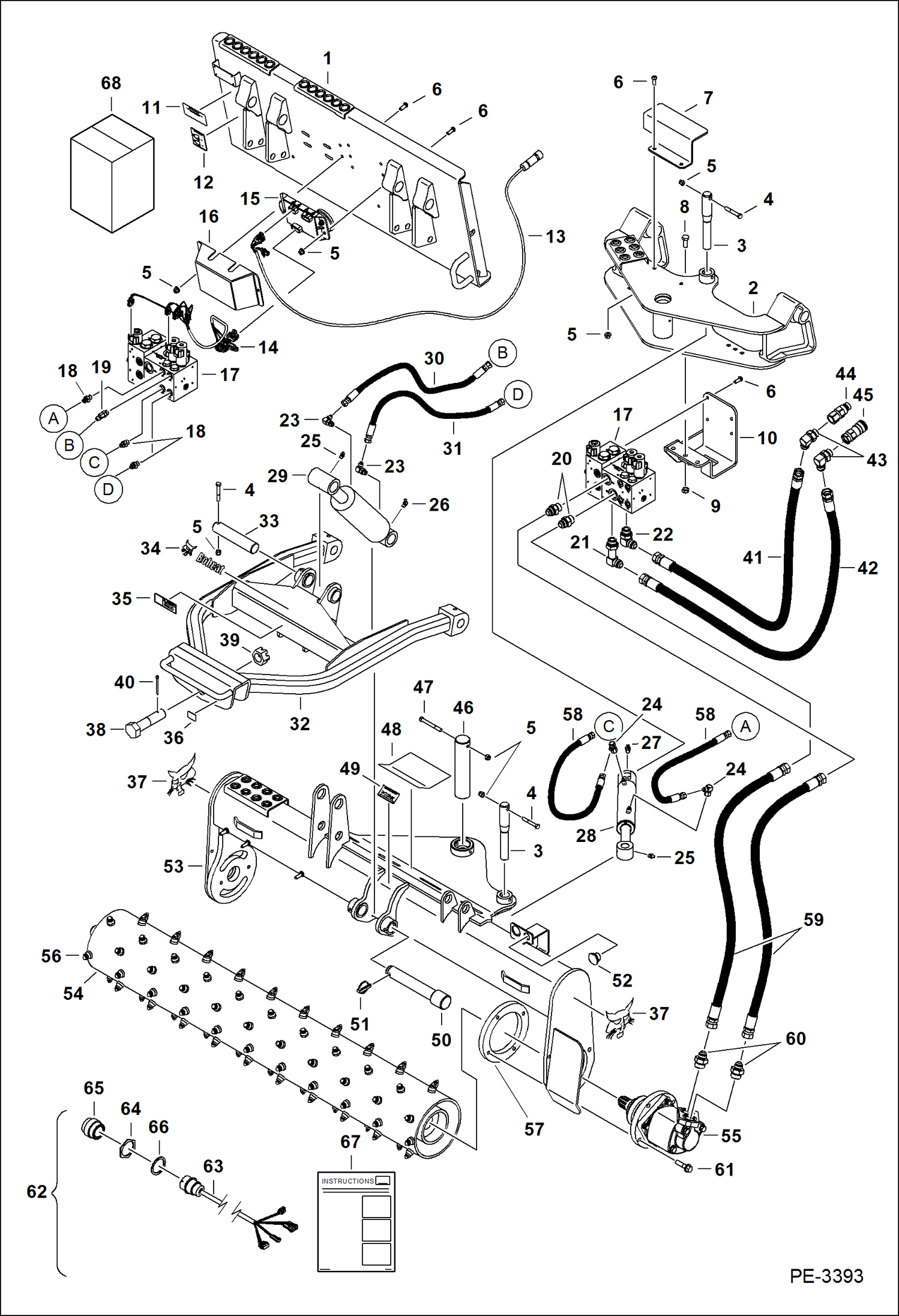

Запчасти Bobcat SOIL CONDITIONER MAIN FRAME - HYD (60 A86R00101 - 00428) (72 S6TE00101 - 01004, A6TD00101 - 00554) (84 A6TG00101 - 00734) Loader

1

6905722

FRAME bob-tach

2

PIVOT, WEDGE See Illustration MAIN FRAME - HYD/ NA6555 - NLA - W/step - Order 6906135 pivot - Was 6906135 - A

3

7102382

PIN

4

17C640

BOLT 5

5

89D6

NUT

6

25G616

SCREW

7

7142378

SHIELD

8

17C820

BOLT

9

85D8

NUT, 5

10

7144812

MOUNT

11

DECAL NLA - patent - Was 7158126 - C

12

6906490

DECAL, LOCK HEIGHT See Illustration DECALS/ NA5838

12

7199924

DECAL, LOCK HEIGHT See Illustration DECALS/ NA5838 - no-text

13

6725385

HARNESS 7-pin

14

7124982

HARNESS ACD to valve - used with high flow (72'' S/N prefix A6TD)

14

7154200

HARNESS ACD to valve - used with standard flow

15

6678675

CONTROLLER, ACD

16

6905670

COVER

17

6692411

VALVE See Illustration CONTROL VALVE/ MS2473 - control

18

15KB0606

FITTING, HYD CONNECTOR

19

18KB0606

FITTING, HYD ELBOW

20

15KB1212

FITTING, HYD CONNECTOR

21

6716443

ELBOW

22

17KB1212

FITTING, HYD ELBOW

23

17KB0606

FITTING

24

11K5

FITTING

25

10H25

FITTING, GREASE 5

26

11H15

GREASE FITTING

27

12H15

FITTING, GREASE 5

28

6809501

CYLINDER See Illustration CYLINDER - ANGLE CONTROL/ PE1330 - angle control

29

6678153

CYLINDER See Illustration CYLINDER - DEPTH CONTROL/ TS1702C - depth control

30

6906659

HOSE, HYD

31

6906660

HOSE, HYD

32

7125325

ARM

33

6906591

PIN

34

7109473

DECAL, LOGO BOBCAT AND HEAD

35

6906488

DECAL, WARNING See Illustration DECALS/ NA5838 - lift

35

7199922

DECAL, WARNING See Illustration DECALS/ NA5838 - no-text

36

6705340

DECAL, GREASE

37

6700191

DECAL, LOGO BOBCAT HEAD

38

6906130

BOLT

39

4D20

NUT

40

1F640

PIN

41

7181268

HOSE, HYD Was 6906318 - A

42

7181269

HOSE, HYD Was 6906236 - A

43

17KB1212

FITTING, HYD ELBOW

44

6688454

COUPLER, FF MALE straight

45

6687636

COUPLER, FF FEMALE straight

46

6714163

PIN

47

17C656

BOLT

48

6708822

DECAL, WARNING See Illustration DECALS/ NA5838

48

7130144

DECAL, WARNING See Illustration DECALS/ NA5838 - no-text

49

6906489

DECAL, ADJUST HEIGHT See Illustration DECALS/ NA5838

49

7199923

DECAL, ADJUST HEIGHT See Illustration DECALS/ NA5838 - no-text

50

6906873

PIN

51

6560382

PIN, LOCK

52

6675128

CAP

53

FRAME See Illustration MAIN FRAME - HYD/ NA6555 - NLA - 60'' - Order 7131664 frame - Was 7131664 - A

53

FRAME See Illustration MAIN FRAME - HYD/ NA6555 - NLA - 72'' - Order 7145607 frame - Was 7145607 - A

53

7145608

FRAME 84''

54

7131665

TUBE 60''

54

7136905

TUBE 72''

54

7137276

TUBE 84''

55

MOTOR See Illustration MOTOR/ MS2451A See Illustration MOTOR/ MS2451

56

TOOTH, CARBIDE NLA - Order 7223896 tooth - (101) for 60'', (121) for 72'', (141) for 84'' - Was 6676731 - A

56

7223896

TOOTH, CARBIDE (101) for 60'', (121) for 72'', (141) for 84''

57

7139692

PLATE

58

HOSE NLA - straight fittings - Order 7192242 hose & discard Ref. 24 - Was 6906238 - A

58

7192242

HOSE, HYD 90 degree & straight fitting

59

7144802

HOSE 60''

59

7144803

HOSE 72''

59

7144804

HOSE 84''

60

15KB1216

FITTING, HYD CONNECTOR

61

31C832

BOLT

62

7155357

KIT, HARNESS 14-PIN converts 7-pin Soil Conditioner to be used with 14-pin loader - W/Ref. 63-67

63

7240058

HARNESS, 14 PIN TEE Was 7150446 - A

64

6664037

WASHER

65

6664036

NUT

66

6673680

RECEPTACLE, TWIST-LOC

67

6901005

INSTRUCTIONS

68

7170784AR

KIT, TRANSLATION Spanish (Argentina)

68

7170784BR

KIT, TRANSLATION Portugese (Brazil)

68

7170786AR

KIT, DECAL Spanish (Argentina)

68

7170786BR

KIT, DECAL Portugese (Brazil)

68

7170786JP

KIT, DECAL Japanese
