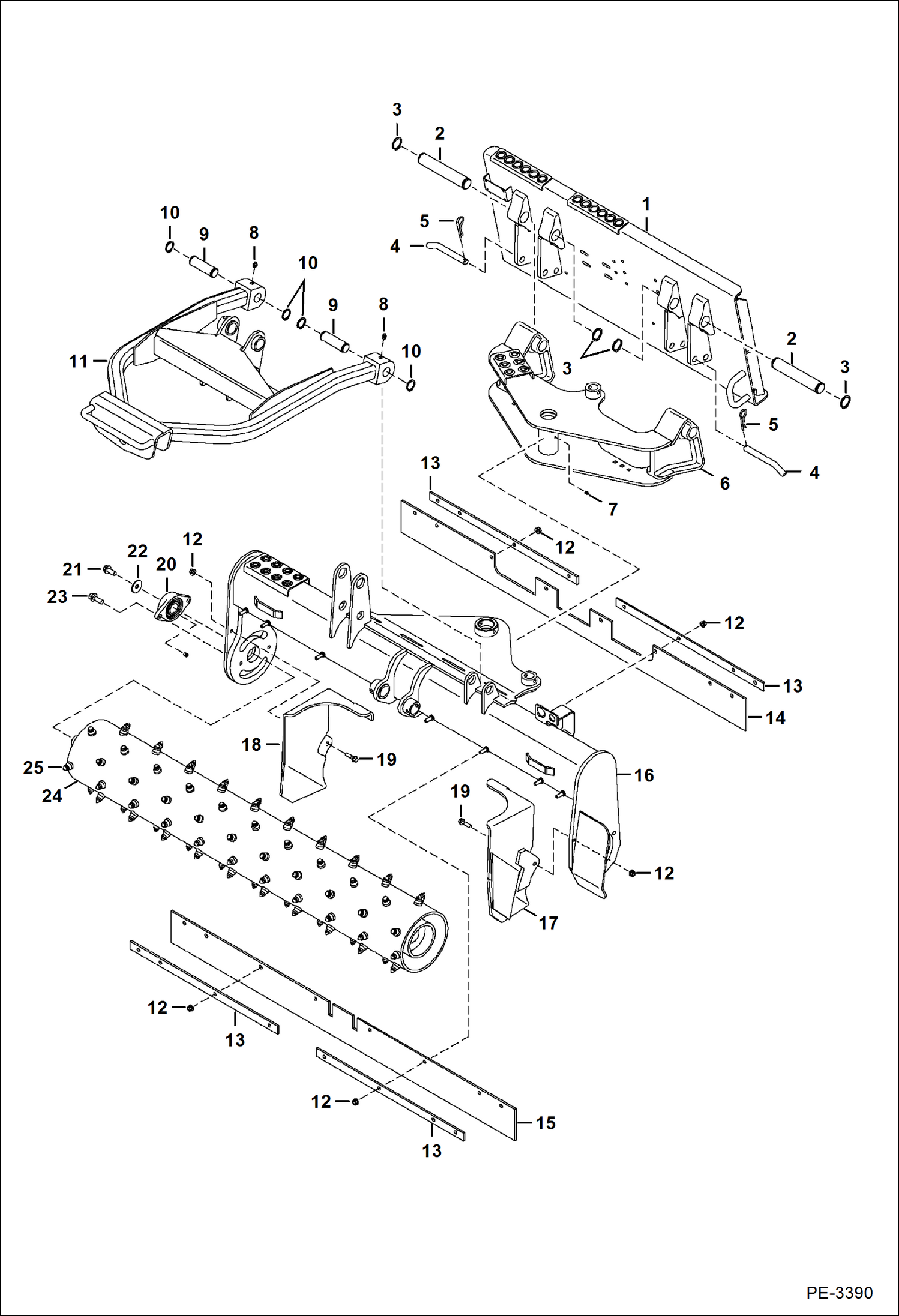

Запчасти Bobcat SOIL CONDITIONER MAIN FRAME - HYD & NON-HYD (60 A5PS00101 - 00377, A86R00101 - 00428) (72 651301556 - 020449, S6TE00101-01004, A6TD00101-00554) (84 A6TG00101-00734, A6TH00101-00486) Loader

1

6905722

FRAME Bob-Tach

2

6714161

PIN

3

6538285

LOCK RING

4

6905724

PIN

5

6648587

PIN, SNAP

6

PIVOT, WEDGE SEE NA6551 - NLA - W/step - Order 6906135 pivot - Was 6906135 - D

7

10H35

FITTING, GREASE 10

8

10H25

FITTING, GREASE 5

9

6905684

PIN

10

22J20

SNAP RING

11

7125325

ARM

12

89D6

NUT

13

7131673

RETAINER 60''

13

6958437

RETAINER 72''

13

6958114

RETAINER 84''

14

7131672

DEFLECTOR 60''

14

6906189

DEFLECTOR 72''

14

6958112

DEFLECTOR 84''

15

7131671

DEFLECTOR 60''

15

6906188

DEFLECTOR 72''

15

6958113

DEFLECTOR 84''

16

FRAME SEE NA6551 - NLA - 60'' - Order 7131664 frame - Was 7131664 - A

16

FRAME SEE NA6551 - NLA - 72'' - Order 7145607 frame - Was 7145607 - A

16

FRAME SEE NA6551 - NLA - 84'' - Order 7145608 frame - Was 7145608 - A

17

6905730

END WING L.H.

18

6905729

END WING R.H.

19

31C624

BOLT

20

6676594

BEARING

21

31C820

BOLT

22

6905688

WASHER

23

31C824

BOLT 10

24

7131665

TUBE 60''

24

7136905

TUBE 72''

24

7137276

TUBE 84''

25

TOOTH, CARBIDE NLA - Order 7223896 tooth - (101) for 60'', (121) for 72'' & (141) for 84'' - Was 6676731 - A

25

7223896

TOOTH, CARBIDE (101) for 60'', (121) for 72'' & (141) for 84''
