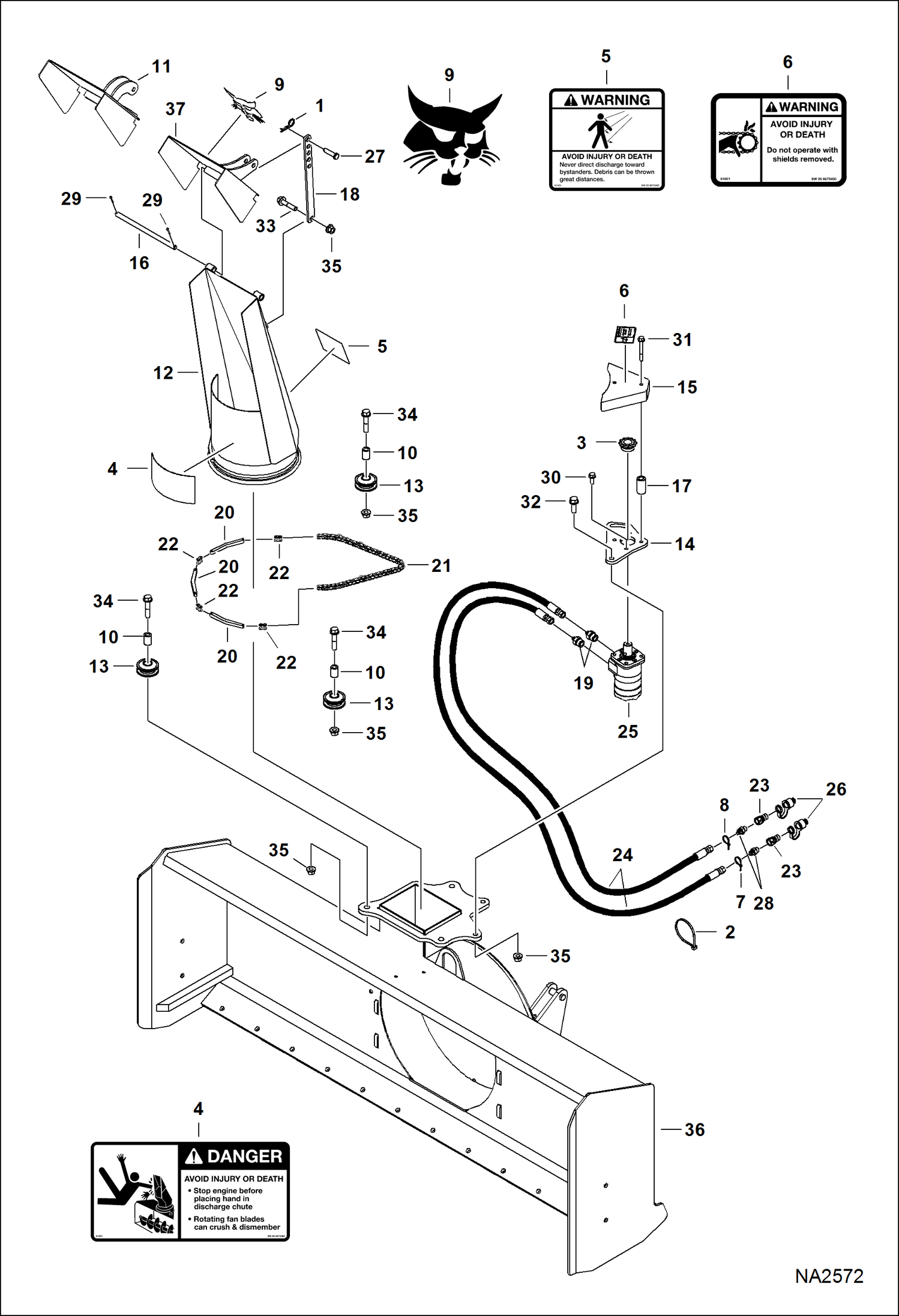

Запчасти Bobcat SNOWBLOWER SNOWBLOWER (Hydraulics & Chute) (FCTSB72 AJGY) Компактные тракторы

1

1318565

COTTER PIN

2

6624289

STRAP, TIE

3

6673336

SPROCKET

4

6673384

DECAL, DANGER

5

6673385

DECAL, WARNING

6

6673400

DECAL, WARNING

7

6693541

BAND, SPIRAL BLUE

8

6693542

BAND, SPIRAL RED

9

6700191

DECAL, LOGO BOBCAT HEAD

10

6907415

BUSHING

11

DEFLECTOR, CHUTE NAP - W/hook mounting brackets - Order Ref. 37 - Was 6907449 - A

12

6907562

CHUTE

13

6907941

GUIDE

14

6958472

BRACKET

15

6958482

GUARD

16

6970081

PIN

17

7113565

BUSHING

18

7153016

ROD

19

7159904

FITTING

20

7160594

EXTENSION, CHAIN

21

7160595

CHAIN

22

7160631

CONNECTOR

23

7167718

COUPLER, POPPET MALE Parker

23

7013280

O-RING Parker

23

7013281

RING, BACK-UP Parker

23

7190242

COUPLER, POPPET MALE Faster

23

7017076

KIT, SEAL Faster

24

7177117

HOSE, HYD

25

MOTOR See Illustration SNOWBLOWER/ NA2594

26

7188736

COVER, DUST

27

14JM1250

PIN

28

15KB0606

FITTING, HYD CONNECTOR

29

1F412

PIN

30

31C616

SCREW

31

31C648

BOLT

32

31C824

BOLT 10

33

31C836

BOLT

34

31C840

SCREW

35

83D8

NUT 5

36

MAIN FRAME See Illustration SNOWBLOWER/ NA2571

37

6907449

DEFLECTOR, CHUTE W/straight mounting brackets
