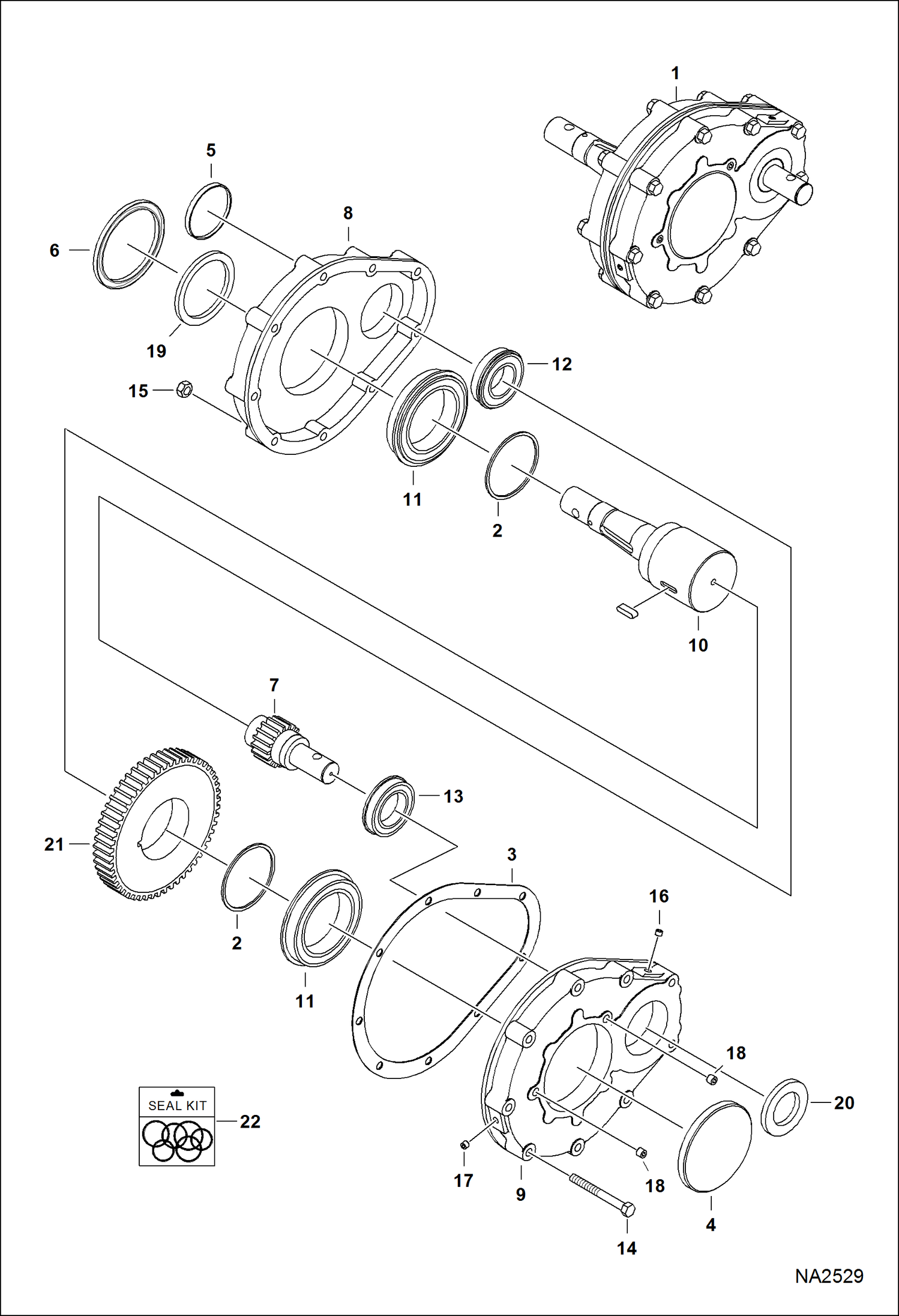

Запчасти Bobcat SNOWBLOWER SNOWBLOWER (Gearbox) (Offset) (FCTSB72 AJGY) Компактные тракторы

1

7169927

GEARBOX Ref. 2-21

2

7012784

SPACER

3

7012785

GASKET

4

7012786

PLUG

5

7012787

PLUG

6

7012788

PLUG

7

7012789

GEAR, SPUR

8

HOUSING NSS - Order Ref. 1

9

HOUSING NSS - Order Ref. 1

10

7012790

SHAFT, OUTPUT

11

7012791

BEARING, BALL

12

7012792

BEARING, BALL

13

7012793

BEARING, BALL

14

7012794

BOLT

15

7012795

NUT

16

7012796

VENT, BREATHER

17

7012797

PLUG, PIPE

18

7012798

PLUG, PIPE

19

7012799

SEAL

20

7012800

SEAL

21

7012783

GEAR, SPUR

22

SEAL KIT NSS - Order components
