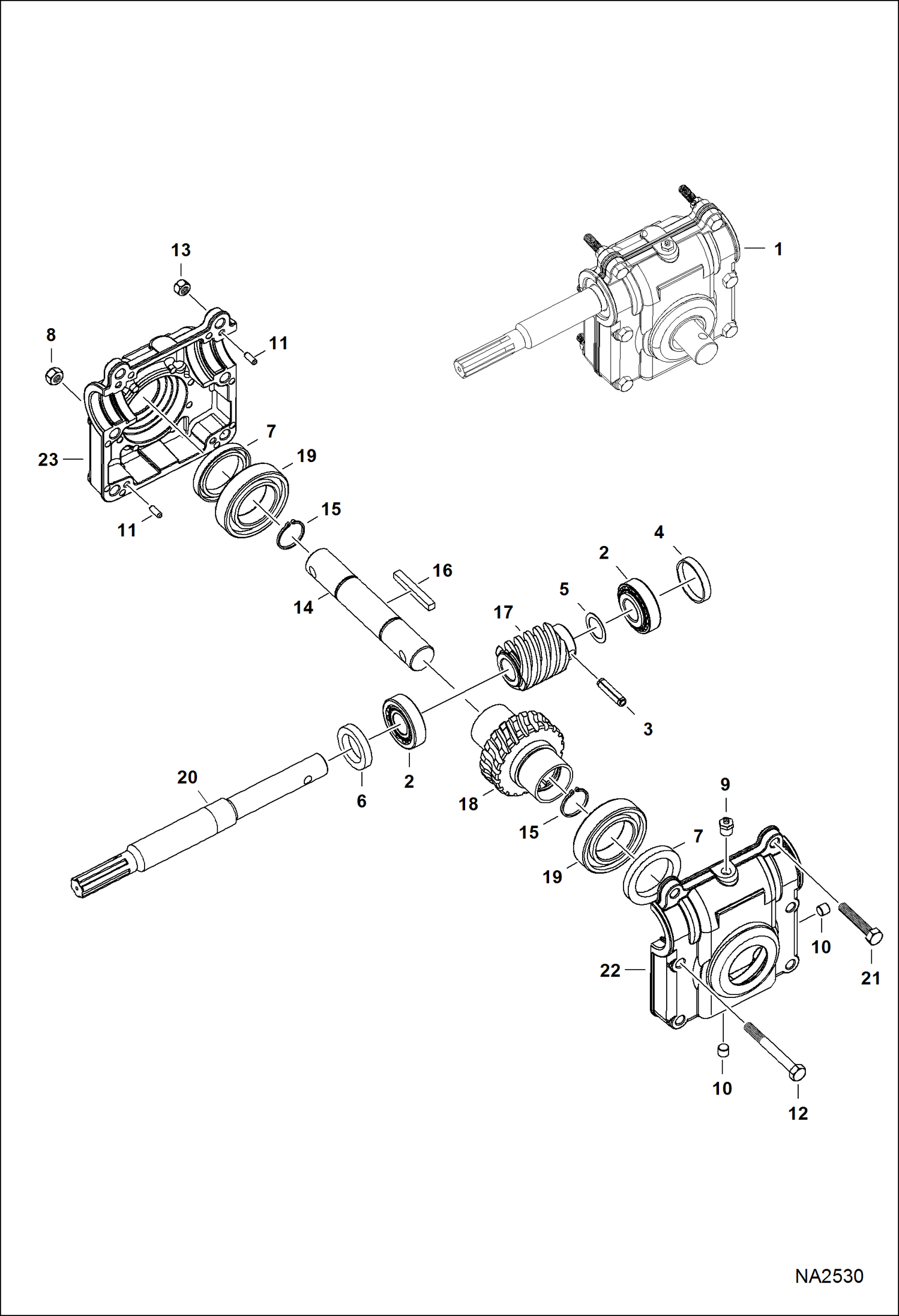

Запчасти Bobcat SNOWBLOWER SNOWBLOWER (Gearbox) (FCTSB72 AJGY) Компактные тракторы

1

7177221

GEARBOX Ref. 2-21

2

7011146

BEARING

3

7011147

PIN, SPRING

4

7011149

CAP

5

7011150

SPACER

6

7011151

SEAL, OIL

7

7011152

SEAL, OIL

8

59D5

NUT 5

9

7011153

VENT, BREATHER

10

7011154

PLUG

11

7011155

PIN

12

17C544

BOLT

13

85D5

NUT 5

14

7011156

SHAFT, OUTPUT 165,1 mm (6.5'') long

15

7011158

RING, RETAINER

16

7J3200

KEY

17

7013132

GEAR, WORM

18

7013133

GEAR, HELICAL

19

7011148

BEARING, BALL

20

7013134

SHAFT, INPUT

21

17C532

BOLT 5

22

CASING NSS - Order Ref. 1

23

CASING NSS - Order Ref. 1
